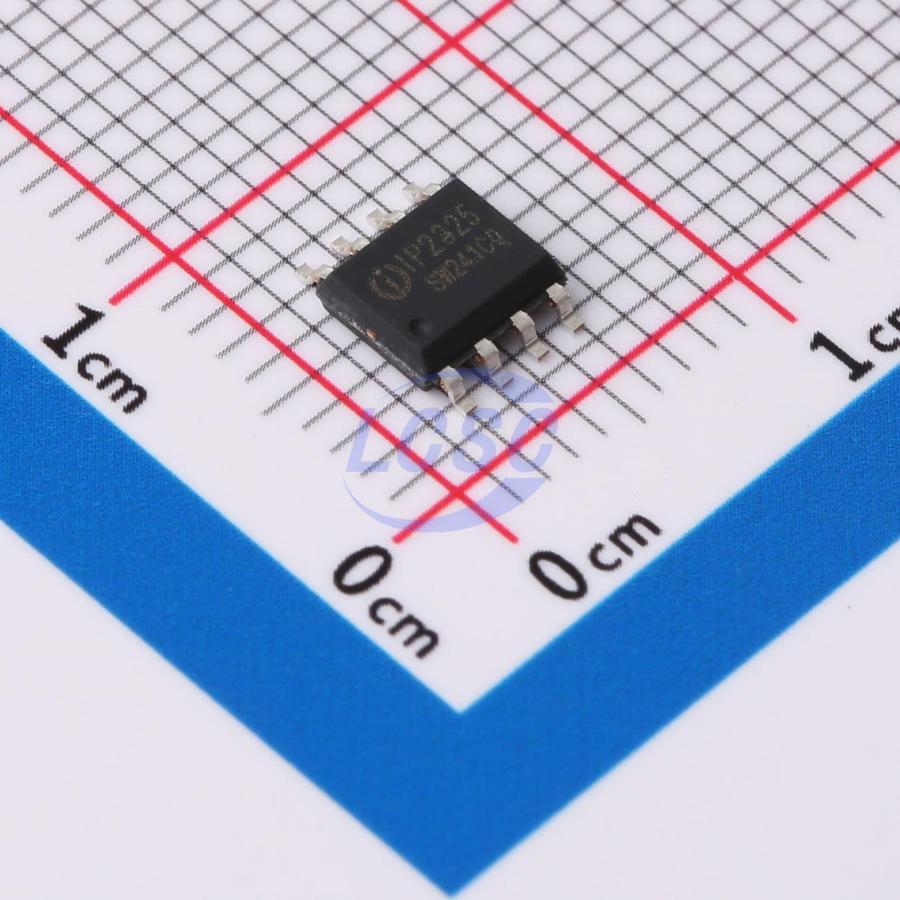

IP2325_DA
Battery Charging IC Lithium Battery ESOP-8
5V Input Dual-cell Series-connected Lithium Battery Step-up Charging IC
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP2325_DA
- Store part #
- C6705440
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,190 in stock
#C6705440
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.80 | ₹52.80 |
| 10+ | ₹42.38 | ₹423.80 |
| 30+ | ₹37.81 | ₹1,134.30 |
| 100+ | ₹32.16 | ₹3,216.00 |
| 500+ | ₹29.56 | ₹14,780.00 |
| 1,000+ | ₹28.03 | ₹28,030.00 |
1 × ₹52.80
₹52.80
excl. GST
₹62.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IP2325_DA
₹52.80 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Quiescent Current
- 700nA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Overcurrent Protection;Overvoltage protection;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1.4A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.164 g
Overview
IP2325 is a boost charging management IC supporting dual-cell series-connected lithium/Li-ion batteries. With an integrated power MOS and synchronous switching architecture, it requires minimal external components, effectively reducing overall solution size and BOM cost. The boost switching charge converter operates at 500KHz; 5V input with 8V/1.2A output conversion efficiency of 93%. It features input voltage limiting to intelligently regulate charging current and adapt to adapter load capability. Supports external resistor for charge voltage adjustment; integrated NTC protection function, compatible with NTC resistors, packaged in ESOP8.
Applications
- Dual-cell lithium/lithium-ion battery charging
Key features
- 15W input synchronous boost charging
- Boost charging efficiency 93%
- Constant voltage charging: externally adjustable resistor for output voltage
- Auto input current regulation, adaptive to adapter load
- NTC temperature protection for charging
- LED charging status indication
- Integrated power MOS
- 500KHz switching frequency, compatible with 2.2uH inductor
- Output overcurrent, overvoltage, and short-circuit protection
- IC overtemperature protection
- 20V input voltage rating
- ESD 4KV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IP2325#C605434INJOINIC · ESOP-8 | INJOINIC | ESOP-8 | 11,003 | ₹57.25 · 11,003 in stock | View |
 | IP2312U_VSET#C605432INJOINIC · SOP-8-EP | INJOINIC | SOP-8-EP | 13,270 | ₹43.05 · 13,270 in stock | View |
 | IP2312-4V35#C605433INJOINIC · ESOP-8 | INJOINIC | ESOP-8 | 4,775 | ₹43.37 · 4,775 in stock | View |
 | IP5407#C2890537INJOINIC · ESOP-8 | INJOINIC | ESOP-8 | 3,955 | ₹22.60 · 3,955 in stock | View |
 | IP2364#C20416207INJOINIC · ESOP-8 | INJOINIC | ESOP-8 | 887 | ₹57.87 · 887 in stock | View |
