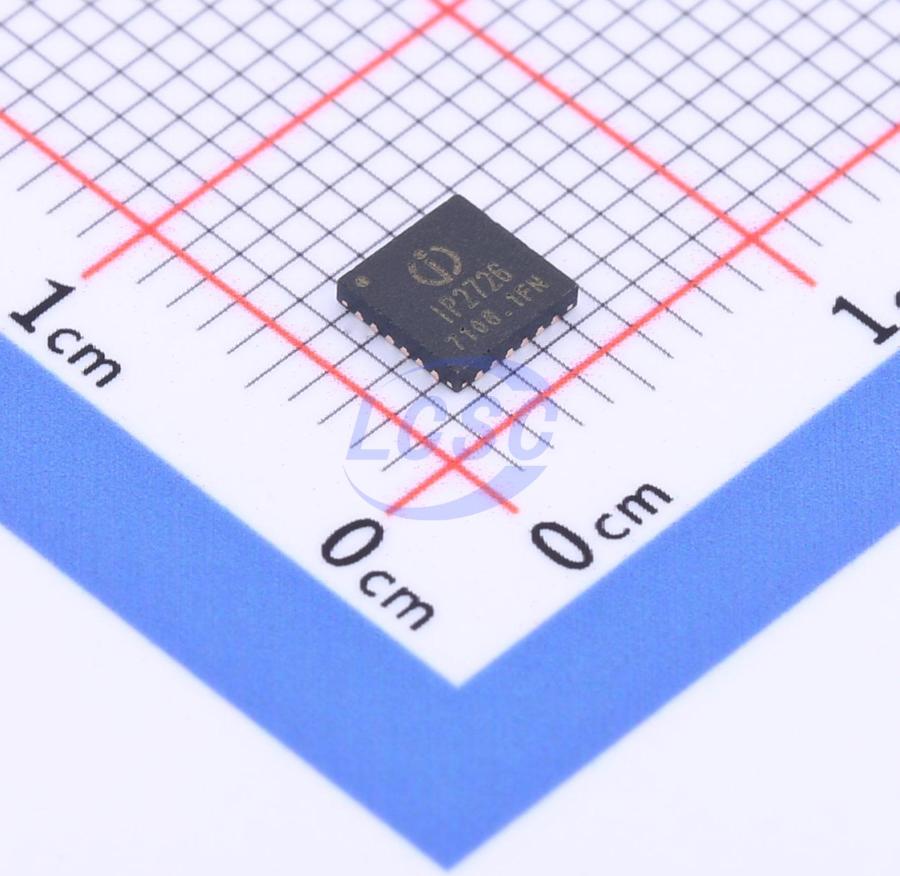

INJOINIC

IP2726_AC_FBR_NP18W

I2C QFN-24-EP(4x4) Power Management - Specialized

QFN-24-EP(4x4)RoHSActive

Fast charging protocol IC integrating multiple protocols and used for dual-port output of USB-A and Type-C

Manufacturer: INJOINIC
Manufacturer part #: IP2726_AC_FBR_NP18W
Store part #: C2930955
Package / case: QFN-24-EP(4x4)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,013 in stock

#C2930955

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹111.66	₹111.66
10+	₹89.55	₹895.50
30+	₹78.49	₹2,354.70
100+	₹67.66	₹6,766.00
500+	₹62.01	₹31,005.00
1,000+	₹58.77	₹58,770.00

Quantity (min 1)

1 × ₹111.66

₹111.66

excl. GST

₹131.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

IP2726_AC_FBR_NP18W

₹111.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Output discharge;Overcurrent Protection
Operating Temperature: -40℃~+85℃
Interface: I2C
Voltage - Supply: 3V~25V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.113 g

Overview

IP2726_AC_FBR is a multi-protocol fast charging IC designed for dual-port USB-A and Type-C output. It supports a wide range of fast charging protocols, including USB Type-C DFP, PD2.0/PD3.0/PPS, HVDCP QC4+/QC4/QC3.0/QC2.0 (Quick Charge), FCP (Hisilicon Fast Charge Protocol), SCP (Super Fast Charge), AFC (Samsung Adaptive Fast Charge), MTK PE+ 2.0/1.1 (MediaTek Pump Express Plus 2.0/1.1), Apple 2.4A, BC1.2, and Samsung 2.0A. It provides a complete Type-C solution for unidirectional output applications such as adapters and car chargers. The IP2726_AC_FBR features high integration and rich functionality, requiring minimal external components in application, effectively reducing the overall solution size and lowering BOM cost.

Applications

Single-way fast charging output applications
AC power adapters and car chargers
System applications with PD output functionality

Key features

Supports 1A1C
Dual-port USB-A and Type-C output; single-port supports all fast charging protocols; dual-port simultaneous insertion steps down to 5V
Integrated USB-C DFP protocol with fast charging output; compatible with BC1.2, Apple, and Samsung fast charging
Integrated USB Power Delivery (PD2.0/PD3.0) protocol
Integrated Type-C DFP protocol with automatic Type-C device insertion/removal detection; integrated PD2.0/PD3.0/PPS protocols; integrated E-MARK cable recognition and support
Integrated switching control for external power MOSFETs; integrated ADC for external MOS path current sensing; built-in power path management; built-in automatic discharge circuit control; supports automatic standby low-power mode entry
Output overcurrent, overvoltage, and short-circuit protection
NTC over-temperature protection
DP, DM, CC1, CC2 overvoltage protection
DP, DM weak short-to-ground protection
DP/DM/CC1/CC2 all support 20V high voltage tolerance
Flexible customization with OTA upgrade support
Wide operating voltage range: 3V~30V
QFN24 package
