IP5305T

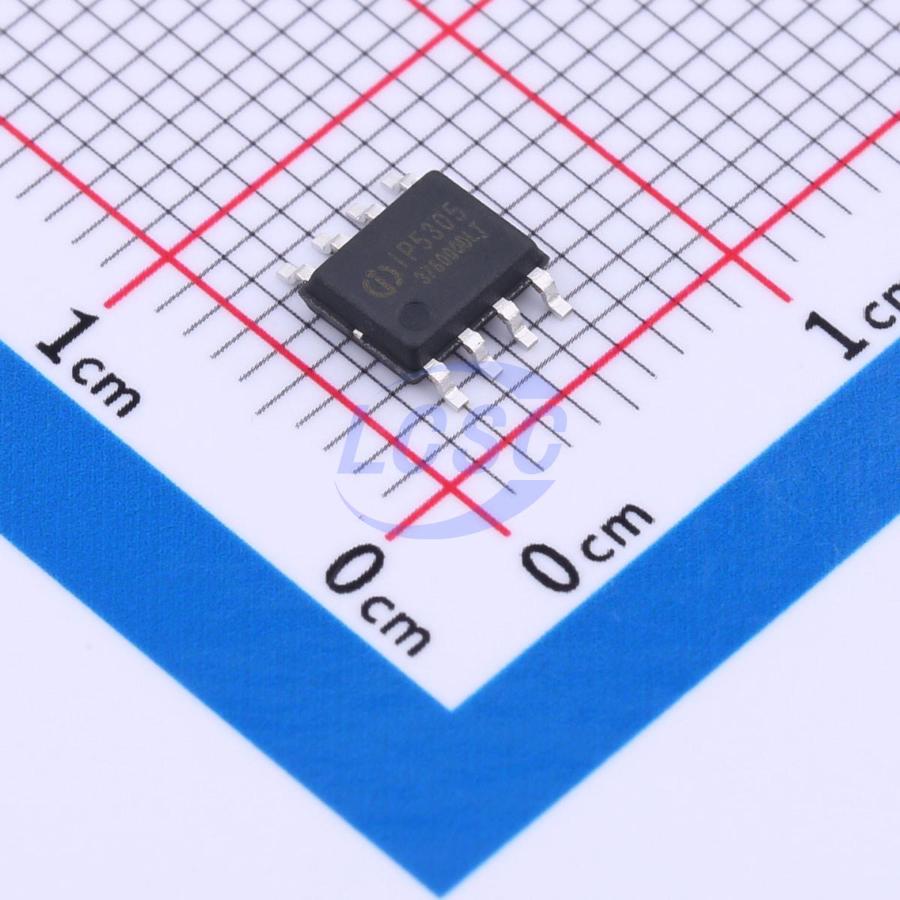

IP5305T is a multi-function power management SOC integrating a boost converter, lithium battery charge management, and battery level indication, providing a complete power solution for power banks. The high integration and rich feature set of IP5305T require minimal external components in application, effectively reducing overall solution size and lowering BOM cost. IP5305T requires only a single inductor to implement both buck and boost functions, supporting low-cost inductors and capacitors. IP5305T's synchronous boost system delivers 1.0A output current with conversion efficiency up to 91%. Under no-load conditions, it automatically enters sleep mode, reducing quiescent current to 100uA. IP5305T adopts switched charging technology, providing 1.2A current with charging efficiency up to 92%. Built-in IC temperature and input voltage intelligently regulate charging current. IP5305T supports 1, 2, 3, and 4 LED battery level display. IP5305T is available in an ESOP8 package.

Applications

• Power banks / portable chargers
• Mobile phones, tablets, and other portable devices

Key features

• Synchronous switching charge/discharge
• 1.0A synchronous boost conversion, 1.2A synchronous switching charge, boost efficiency up to 91%, charging efficiency up to 92%
• Integrated power path management, supports simultaneous charging and discharging
• Adaptive charging current to match adapter output capability, supports 4.20/4.30/4.35/4.40V batteries
• Supports 4, 3, 2, 1 LED battery level indication
• Push-button power-on, integrated flashlight driver, automatic detection of phone insertion and removal
• Intelligent load detection, automatic standby entry, standby current less than 100μA
• Integrated power MOSFETs, single-inductor charge/discharge, single-layer PCB
• Output overcurrent, overvoltage, and short-circuit protection; input overvoltage, overcharge, over-discharge, and overcurrent protection; full system over-temperature protection, ESD 4KV, transient voltage withstand 11V
