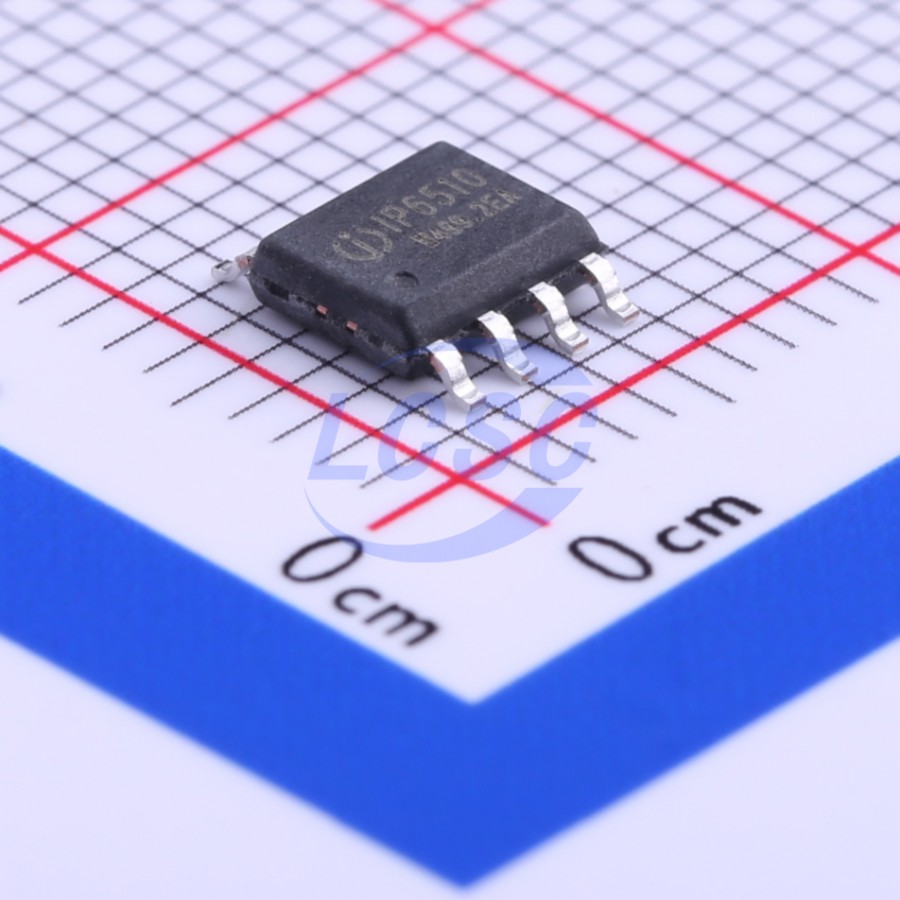

IP6510

IP6510 is a buck converter with integrated synchronous switches, supporting 9 fast-charging output protocols, Type-C output, and USB PD protocol, providing a complete solution for in-vehicle chargers, fast-charging adapters, and smart power strips. The IP6510 features an integrated power MOS with an input voltage range of 4.5V to 32V and an output voltage range of 3V to 12V, capable of delivering up to 18W of output power. It automatically adjusts output voltage and current based on the detected fast-charging protocol. Typical output voltage and current combinations include: 5V@3.1A, 7V@2.4A, 9V@2A, and 12V@1.5A. The buck conversion efficiency of the IP6510 reaches up to 97%. The IP6510 output features CV/CC characteristics: when the output current is below the set value, it operates in CV mode with a constant output voltage; when the output current exceeds the set value, it switches to CC mode with a reduced output voltage. The IP6510 output voltage incorporates a cable compensation function, which increases the output voltage as the output current rises to compensate for voltage drop caused by cable impedance. The IP6510 features a soft-start function to prevent inrush current during startup from affecting input power stability. The IP6510 supports Type-C output and integrates various fast-charging protocols. It can automatically detect the fast-charging protocol supported by the connected device via CC1/CC2 or DP/DM, then automatically adjust the output voltage and current. Supported fast-charging protocols include: DCP (Apple, Samsung, and BC1.2), Qualcomm QC2.0/QC3.0, Huawei FCP, Samsung AFC, and USB PD output protocol. The IP6510 provides multiple protection features, including input overvoltage/undervoltage protection, output overcurrent/overvoltage/undervoltage, and short-circuit protection.

Applications

• On-board charger
• Fast-charging adapter
• Smart power strip

Key features

• Synchronous step-down switching converter
• Integrated power MOSFETs
• Input operating voltage range: 4.5V to 32V
• Output voltage range: 3V to 12V, with automatic output power adjustment per fast-charging protocol: max 18W (5V@3.1A, 7V@2.4A, 9V@2A, 12V@1.5A)
• Output voltage wired compensation: 100mV/A
• CV/CC output characteristics (output CV mode when output current < set value; output CC mode when output current > set value)
• Conversion efficiency up to 97%
• Soft-start function
• Supports Type-C output interface and USB PD protocol
• Supports 5V, 9V, 12V PD output protocols
• Fast-charging output
• Supports BC1.2, Apple, and Samsung protocols
• Supports QC2.0 and QC3.0 fast-charging protocols
• Supports Huawei fast-charging protocol FCP
• Supports Samsung fast-charging protocol AFC
• Multiple protections, high reliability
• Input OVP, input UVP, output short-circuit, and output OCP
• System over-temperature protection
• ESD 4KV, DC withstand voltage 48V
