InfineonDatasheet (PDF)

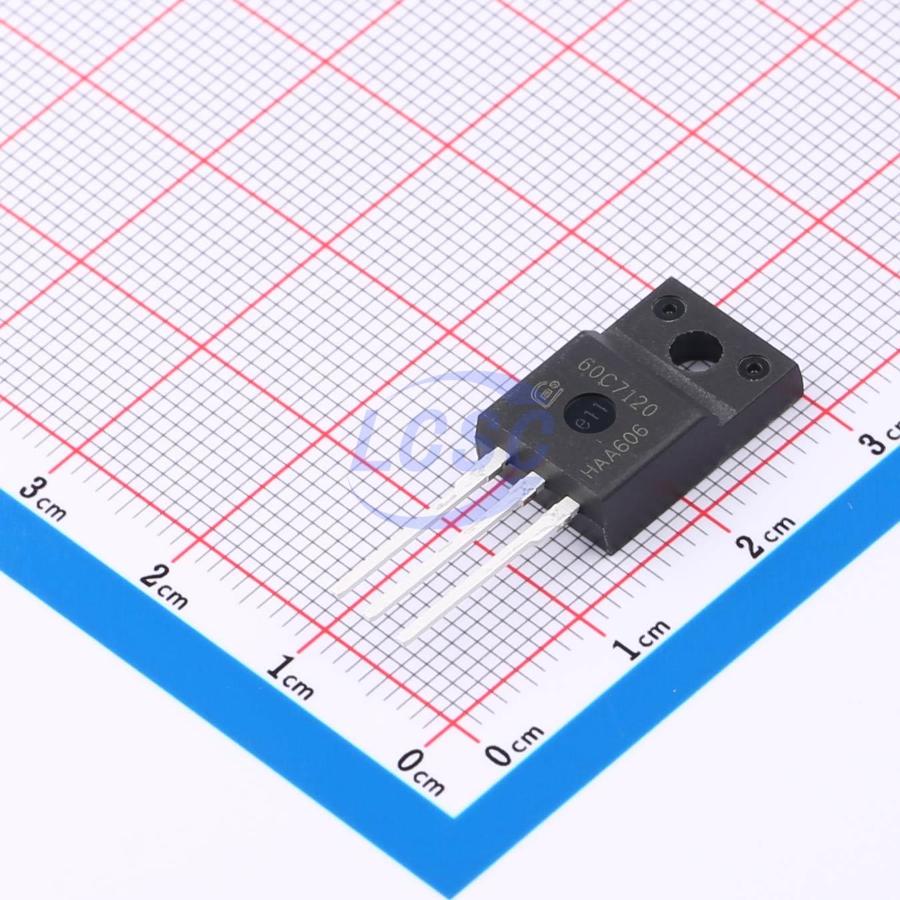

IPA60R120C7
32W 600V 7A 120mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R120C7
- Store part #
- C536346
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C536346
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,707.64 | ₹1,707.64 |
| 10+ | ₹1,677.71 | ₹16,777.10 |
| 30+ | ₹1,657.77 | ₹49,733.10 |
| 100+ | ₹1,637.82 | ₹1,63,782.00 |
1 × ₹1,707.64
₹1,707.64
excl. GST
₹2,015.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPA60R120C7
₹1,707.64 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 27pF
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 32W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 7A
- Reverse Transfer Capacitance (Crss)
- 515pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.653 g
Overview
CoolMOS C7 is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS C7 series combines the experience of a leading SJ MOSFET supplier with best-in-class innovation. The 600V C7 is the first technology to achieve an RDS(on) × die area product below 1Ω·mm².
Applications
- PFC and PWM stages (TTF, LLC) for high-power/high-performance SMPS, including computing, server, telecom, UPS, and solar applications.
Key features
- Suitable for hard switching and soft switching (PFC and high-performance LLC)
- Enhances MOSFET dv/dt robustness up to 120V/ns
- Improves efficiency with best-in-class figure of merit RDS(ON)*Eoss and RDS(ON)*Qg
- Best-in-class on-resistance RDS(ON)/package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP60R120P7#C537199Infineon · TO-220-3 | Infineon | TO-220-3 | 4 | ₹315.96 · 4 in stock | View |
| IPP60R125CFD7#C537201Infineon · TO-220 | Infineon | TO-220 | 5 | ₹740.89 · 5 in stock | View | |
 | IPP60R120C7#C537198Infineon · TO-220 | Infineon | TO-220 | 10 | ₹591.72 · 10 in stock | View |
 | IPP65R125C7#C537230Infineon · TO-220 | Infineon | TO-220 | 4 | ₹602.48 · 4 in stock | View |
 | IPP60R145CFD7#C537204Infineon · TO-220-3 | Infineon | TO-220-3 | 110 | ₹549.55 · 110 in stock | View |
