InfineonDatasheet (PDF)

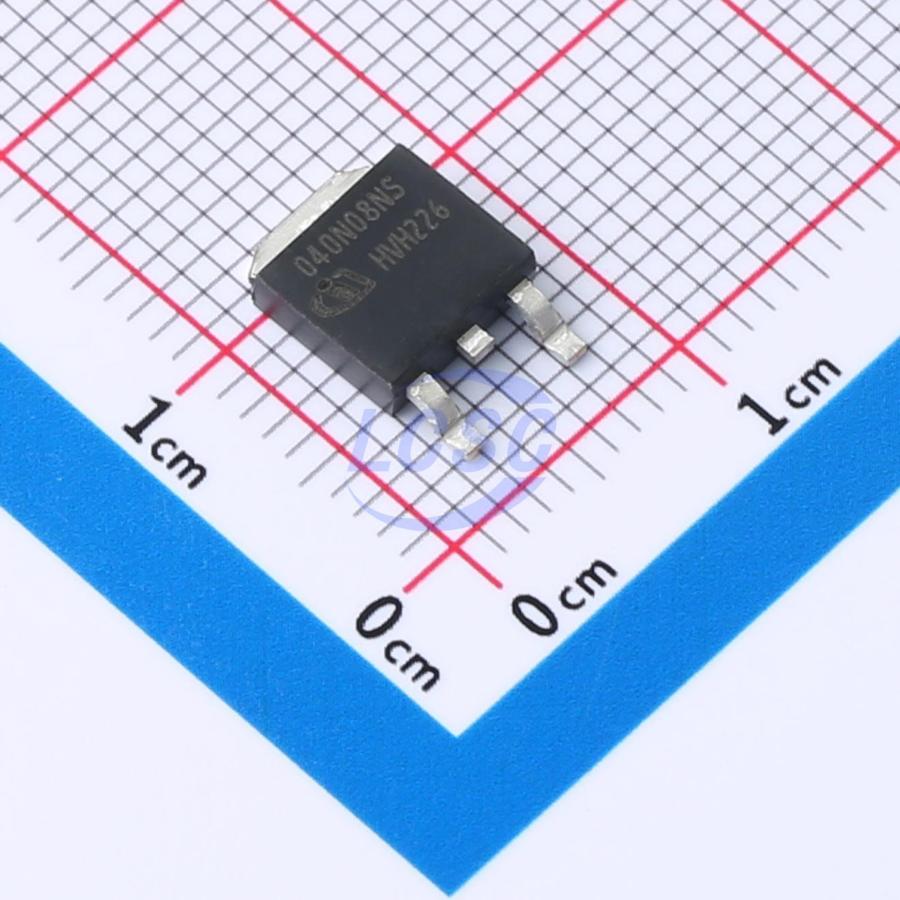

IPD040N08NF2SATMA1
N-Channel 80V 129A 150W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET N-CH 80V 129A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IPD040N08NF2SATMA1
- Store part #
- C19631202
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C19631202
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹276.02 | ₹276.02 |
| 10+ | ₹233.51 | ₹2,335.10 |
| 30+ | ₹207.06 | ₹6,211.80 |
| 100+ | ₹179.74 | ₹17,974.00 |
| 500+ | ₹167.60 | ₹83,800.00 |
| 1,000+ | ₹162.19 | ₹1,62,190.00 |
1 × ₹276.02
₹276.02
excl. GST
₹325.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IPD040N08NF2SATMA1
₹276.02 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 620pF
- Ciss-Input Capacitance
- 3.8nF
- Pd - Power Dissipation
- 150W
- Configuration
- Standalone
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 129A
- Reverse Transfer Capacitance (Crss)
- 29pF
- RDS(on)
- 3.4mΩ@10V;4mΩ@6V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 54nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.635 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID)
- Fluorescent ballast lighting
- Industrial applications
Key features
- Optimized for a wide range of applications
- N-channel, normally-on
- 100% avalanche tested
- Lead-free lead finish; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | YFW120N10AD#C5185721YFW · TO-252 | YFW | TO-252 | 1,290 | ₹137.10 · 1,290 in stock | View |
| IPD052N10NF2SATMA1#C20191575Infineon · TO-252-3 | Infineon | TO-252-3 | 186 | ₹266.24 · 186 in stock | View | |
 | FDD86367-VB#C47993993VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 11 | ₹155.88 · 11 in stock | View |
 | CMD130N85A#C20625148Cmos · TO-252 | Cmos | TO-252 | 483 | ₹70.11 · 483 in stock | View |
 | MOT8156D#C53155061MOT · TO-252 | MOT | TO-252 | 12 | ₹130.63 · 12 in stock | View |
