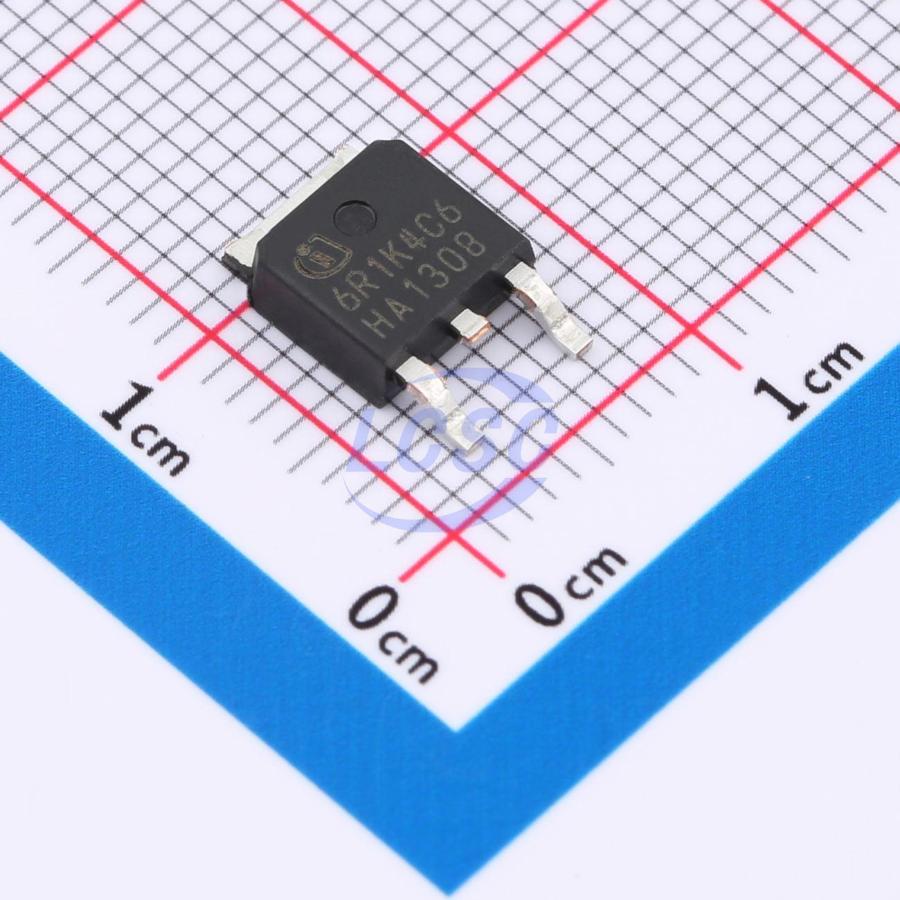

IPD60R1K4C6ATMA1
N-Channel 600V 3.2A 28.4W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET N-CH 600V 3.2A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IPD60R1K4C6ATMA1
- Store part #
- C3279037
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C3279037
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.75 | ₹65.75 |
| 10+ | ₹64.23 | ₹642.30 |
| 30+ | ₹63.13 | ₹1,893.90 |
| 100+ | ₹62.05 | ₹6,205.00 |
1 × ₹65.75
₹65.75
excl. GST
₹77.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD60R1K4C6ATMA1
₹65.75 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 3.2A
- Ciss-Input Capacitance
- 200pF
- Pd - Power Dissipation
- 28.4W
- RDS(on)
- 1.4Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.4nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.38 g
Overview
CoolMOS TM is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS TM C6 series combines the experience of the leading SJ MOSFET supplier with high class innovation. The resulting devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, more compact, lighter, and cooler.
Applications
- PFC stages, hard switching PWM stages and resonant switching PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV, Lighting, Server, Telecom and UPs.
Key features
- Extremely low losses due to very low FOM Rdson*Qg and Eoss
- Very high commutation ruggedness
- Easytouse/drive
- Fully qualified according to JEDEC for Industrial Applications
- Halogen free mold compound, Pb-free plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD60R600P7S#C536833Infineon · TO-252-3 | Infineon | TO-252-3 | 26,527 | ₹68.97 · 26,527 in stock | View |
 | IPD70R900P7S#C150923Infineon · TO-252 | Infineon | TO-252 | 1,492 | ₹89.53 · 1,492 in stock | View |
 | IPD80R1K4P7#C536880Infineon · TO-252-3 | Infineon | TO-252-3 | 2,500 | ₹131.19 · 2,500 in stock | View |
 | IPD80R1K4CEATMA1#C3289126Infineon · TO-252-3 | Infineon | TO-252-3 | 50 | ₹116.27 · 50 in stock | View |
 | STD6N65M2#C2970537ST · DPAK | ST | DPAK | 25 | ₹360.24 · 25 in stock | View |
