InfineonDatasheet (PDF)

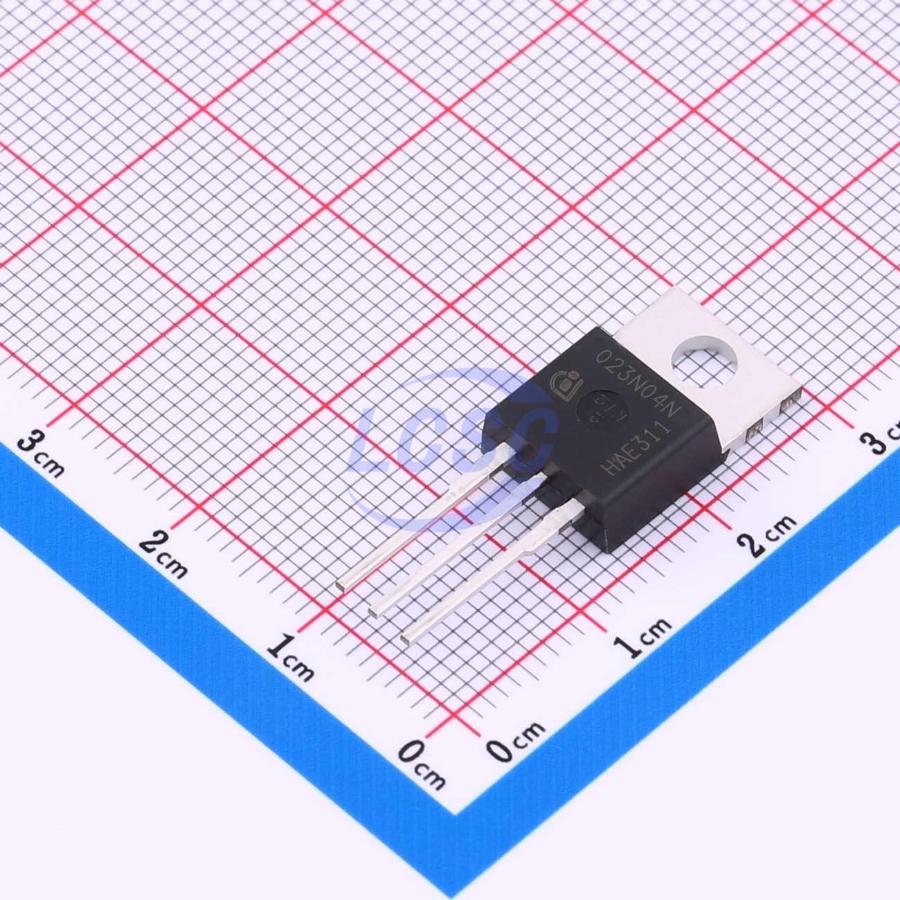

IPP023N04N G
N-Channel 40V Through Hole TO-220-3
TO-220-3ROHS CompliantActive
MOSFET N-CH 40V TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP023N04N G
- Store part #
- C537112
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C537112
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.12 | ₹225.12 |
| 10+ | ₹220.13 | ₹2,201.30 |
| 50+ | ₹216.65 | ₹10,832.50 |
| 100+ | ₹213.17 | ₹21,317.00 |
1 × ₹225.12
₹225.12
excl. GST
₹265.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP023N04N G
₹225.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2nF
- Ciss-Input Capacitance
- 7.3nF
- Pd - Power Dissipation
- 167W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 77pF
- RDS(on)
- 1.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.062 g
Overview
Key features
- MOSFET for ORing and uninterruptible power supplies
- JEDEC qualified for target applications
- N-channel
- Normal level
- Ultra-low on-resistance RDS(on)
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP037N06L3G#C3288954Infineon · TO-220-3 | Infineon | TO-220-3 | 3 | ₹391.62 · 3 in stock | View |
 | SWP065R68E7T#C5151900Samwin · TO-220 | Samwin | TO-220 | 1 | ₹52.26 · 1 in stock | View |
 | AUIRF3205Z#C533247Infineon · TO-220AB | Infineon | TO-220AB | 2 | ₹751.64 · 2 in stock | View |
 | AUIRFB8405#C533303Infineon · TO-220AB | Infineon | TO-220AB | 5 | ₹563.12 · 5 in stock | View |
 | FH4008PS#C5453912XIN FEI HONG · TO-220 | XIN FEI HONG | TO-220 | 40 | ₹105.15 · 40 in stock | View |
