InfineonDatasheet (PDF)

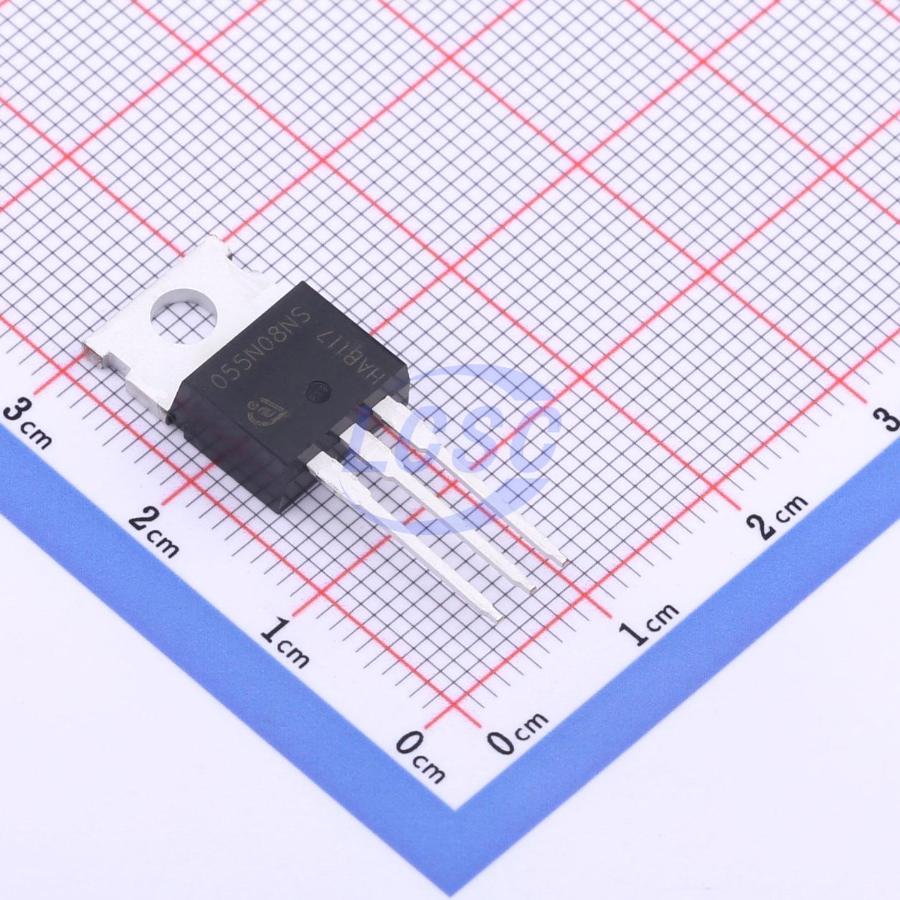

IPP055N08NF2S
N-Channel 80V 99A 3.8W Through Hole TO-220-3
TO-220-3ROHS3 CompliantActive
MOSFET N-CH 80V 99A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP055N08NF2S
- Store part #
- C3007769
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
78 in stock
#C3007769
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹267.25 | ₹267.25 |
| 10+ | ₹226.43 | ₹2,264.30 |
| 50+ | ₹200.82 | ₹10,041.00 |
| 100+ | ₹174.54 | ₹17,454.00 |
| 500+ | ₹162.82 | ₹81,410.00 |
| 1,000+ | ₹157.61 | ₹1,57,610.00 |
1 × ₹267.25
₹267.25
excl. GST
₹315.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPP055N08NF2S
₹267.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 420pF
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 3.8W
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 99A
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 5.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.75 g
Overview
Key features
- Optimized for a wide range of applications
- N-Channel, normal level
- 100% avalanche tested
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP055N08NF2S#C3288952Infineon · TO-220-3 | Infineon | TO-220-3 | 2 | ₹569.06 · 2 in stock | View |
 | IPP019N08NF2SAKMA1#C5311583Infineon · TO-220-3 | Infineon | TO-220-3 | 4 | ₹246.86 · 4 in stock | View |
 | IPP016N08NF2SAKMA1#C5222901Infineon · TO-220-3 | Infineon | TO-220-3 | 260 | ₹432.89 · 260 in stock | View |
 | FH3008P1#C5247958XIN FEI HONG · TO-220 | XIN FEI HONG | TO-220 | 302 | ₹55.30 · 302 in stock | View |
 | MGP054N08N#C49242756Megain · TO-220 | Megain | TO-220 | 1,008 | ₹39.94 · 1,008 in stock | View |
