InfineonDatasheet (PDF)

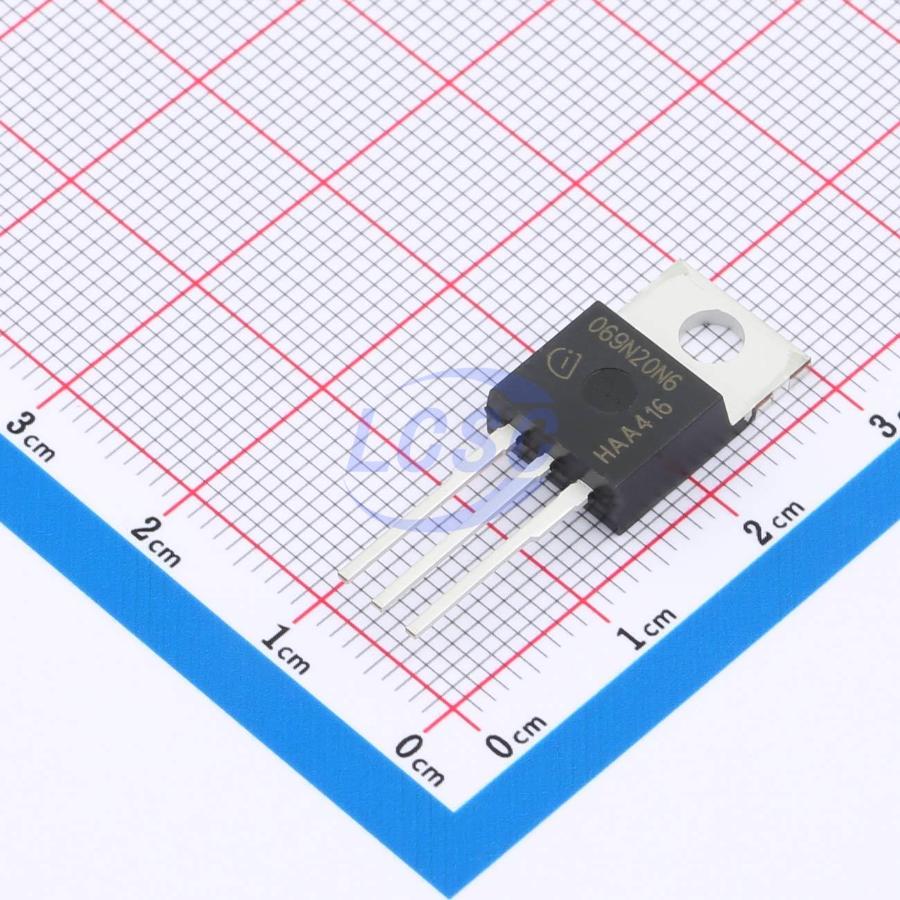

IPP069N20NM6AKSA1
200V 136A 300W 6.9mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
MOSFET N-CH 200V 136A TO-220-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPP069N20NM6AKSA1
- Store part #
- C22401241
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C22401241
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,317.80 | ₹1,317.80 |
| 10+ | ₹1,168.42 | ₹11,684.20 |
| 30+ | ₹1,077.36 | ₹32,320.80 |
| 100+ | ₹1,001.03 | ₹1,00,103.00 |
1 × ₹1,317.80
₹1,317.80
excl. GST
₹1,555.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPP069N20NM6AKSA1
₹1,317.80 for 1 + GST
Specifications
- Drain to Source Voltage
- 200V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 136A
- Output Capacitance(Coss)
- 1.2nF
- Ciss-Input Capacitance
- 7.4nF
- Pd - Power Dissipation
- 300W
- Reverse Transfer Capacitance (Crss)
- 52pF
- RDS(on)
- 6.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 73nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
AGMH065N10A combines advanced trench MOSFET technology with a low-resistance package to achieve ultra-low RDS(ON). This device is ideal for load switch and battery protection applications.
Applications
- Motherboard/GPU core voltage - Secondary synchronous rectifier for switching power supplies - Point-of-load applications - Brushless DC motor driver
Key features
- N-channel, normally-on level
- Ultra-low on-resistance RDS(on)
- Excellent gate charge × RDS(on) product (figure of merit FOM)
- Ultra-low reverse recovery charge (Qrr)
- High avalanche energy rating
- 175°C operating temperature
- Lead-free terminal plating; RoHS compliant
- Halogen-free per IEC61249-2-21
- 100% avalanche tested
