VISHAYDatasheet (PDF)

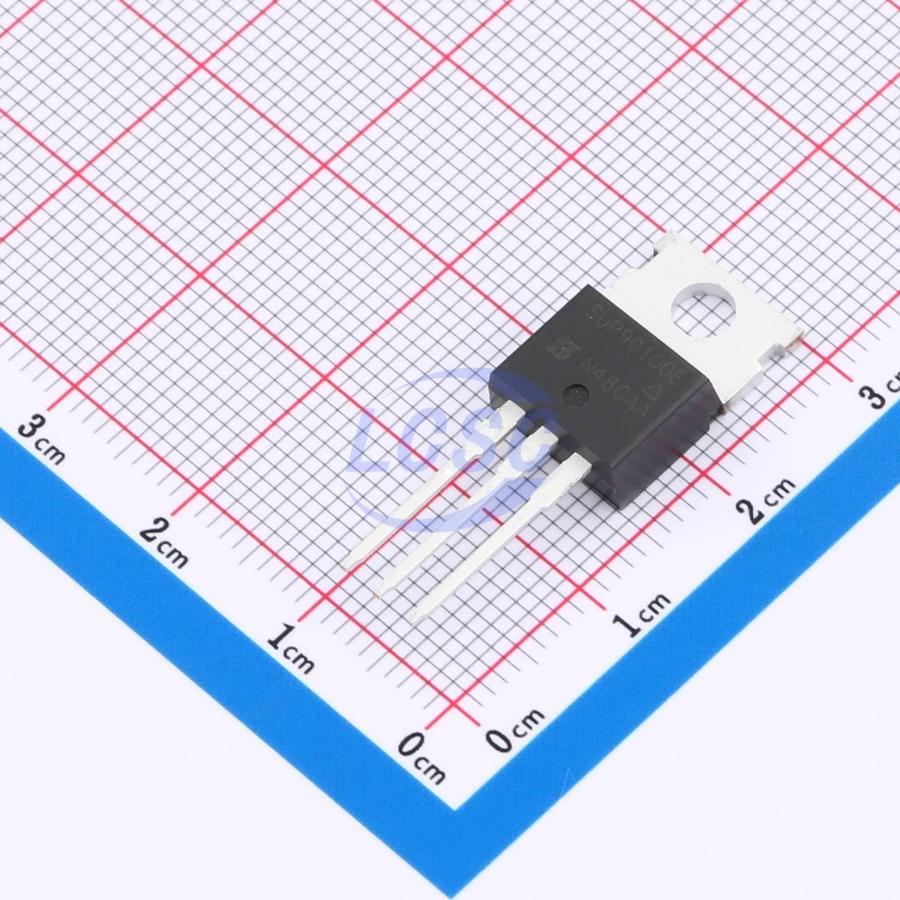

SUP90100E-GE3
N-Channel 200V 150A 375W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 200V 150A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- SUP90100E-GE3
- Store part #
- C3280719
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C3280719
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹414.18 | ₹414.18 |
| 10+ | ₹403.96 | ₹4,039.60 |
| 30+ | ₹397.01 | ₹11,910.30 |
| 100+ | ₹390.06 | ₹39,006.00 |
1 × ₹414.18
₹414.18
excl. GST
₹488.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per bag
SUP90100E-GE3
₹414.18 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 450pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 3.93nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 12pF
- RDS(on)
- 12.4mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
These are N-channel enhancement-mode silicon-gate power MOSFETs. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. All of these power MOSFETs are suitable for use in switching regulators, switching converters, motor drivers, relay drivers, and high-power bipolar switching transistor drivers requiring high speed and low gate drive power. These types can be driven directly by ICs.
Applications
- Switching power supply
- DC/DC converter
- Power tools
- Motor drive switch
- DC/AC inverter
- Battery management
- OR-ing / e-fuse
Key features
- TrenchFET power MOSFET
- Maximum 175 °C junction temperature RoHS
- Reduces power loss from passing
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP020N09GHTQ#C42372351Siliup · TO-220-3L | Siliup | TO-220-3L | 556 | ₹332.38 · 556 in stock | View |
 | WGP90N25G#C42442055Wild Goose · TO-220 | Wild Goose | TO-220 | 100 | ₹189.47 · 100 in stock | View |
 | WSR160N20#C22751512Winsok Semicon · TO-220-3L | Winsok Semicon | TO-220-3L | 50 | ₹692.56 · 50 in stock | View |
 | IPP069N20NM6AKSA1#C22401241Infineon · TO-220-3 | Infineon | TO-220-3 | 14 | ₹1,317.80 · 14 in stock | View |
| SFP098N200C3#C49257173SCILICON · TO-220 | SCILICON | TO-220 | On request | ₹728.07 · 0 in stock | View | |
