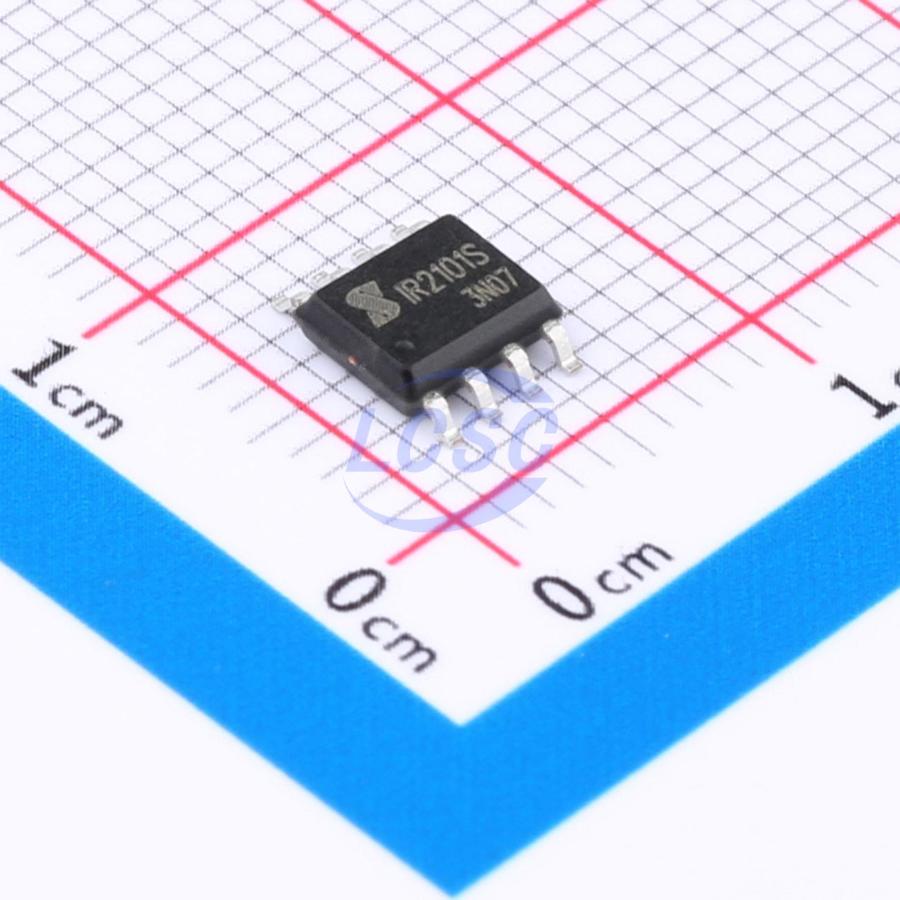

IR2101STRPBF-JSM
Low Side High Side Gate Driver IC MOSFET SOP-8
Single-phase high-side and low-side power MOSFET/IGBT driver IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- IR2101STRPBF-JSM
- Store part #
- C5804627
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,969 in stock
#C5804627
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.96 | ₹57.96 |
| 10+ | ₹45.15 | ₹451.50 |
| 30+ | ₹39.50 | ₹1,185.00 |
| 100+ | ₹32.78 | ₹3,278.00 |
| 500+ | ₹29.74 | ₹14,870.00 |
| 1,000+ | ₹27.78 | ₹27,780.00 |
1 × ₹57.96
₹57.96
excl. GST
₹68.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IR2101STRPBF-JSM
₹57.96 for 1 + GST
Specifications
- Quiescent Current
- 120uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- High Side;Low Side
- Current - Output Low(IOL)
- 600mA
- Rise Time
- 75ns
- Fall Time
- 35ns
- Features
- Undervoltage Protection
- Current - Output High(IOH)
- 300mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.197 g
Overview
IR2101S is a high-voltage, high-speed power MOSFET high- and low-side driver IC. It features independent high-side and low-side referenced output channels. The high-voltage compatible process enables monolithic integration of both high- and low-side gate drive circuits, with logic input levels compatible with CMOS or LSTTL outputs down to 3.3V. The floating channel supports high-side N-channel power MOSFET driving, with a maximum floating supply offset voltage up to 700V. Packaged in SOP-8, it operates over a temperature range of -40°C to 125°C.
Applications
- Motor Control
- Air Conditioner/Washing Machine
- General-Purpose Inverter
- Inverter Drive
Key features
- Bootstrap floating high-side channel
- Maximum operating voltage +700V
- Compatible with 3.3V, 5V, and 15V input logic
- dVS/dt immunity up to ±50V/ns
- VS negative bias capability down to -9V
- Integrated VCC UVLO circuit
- UVLO positive-going threshold 8.9V
- UVLO negative-going threshold 8.2V
- Propagation delay characteristics
- Turn-on/turn-off propagation delay Ton/Toff = 130ns/130ns
- Delay matching time 50ns
- Wide temperature range -40°C ~ 125°C
- Output stage source/sink current capability 300mA/600mA
- RoHS compliant
- SOIC8 (S)
