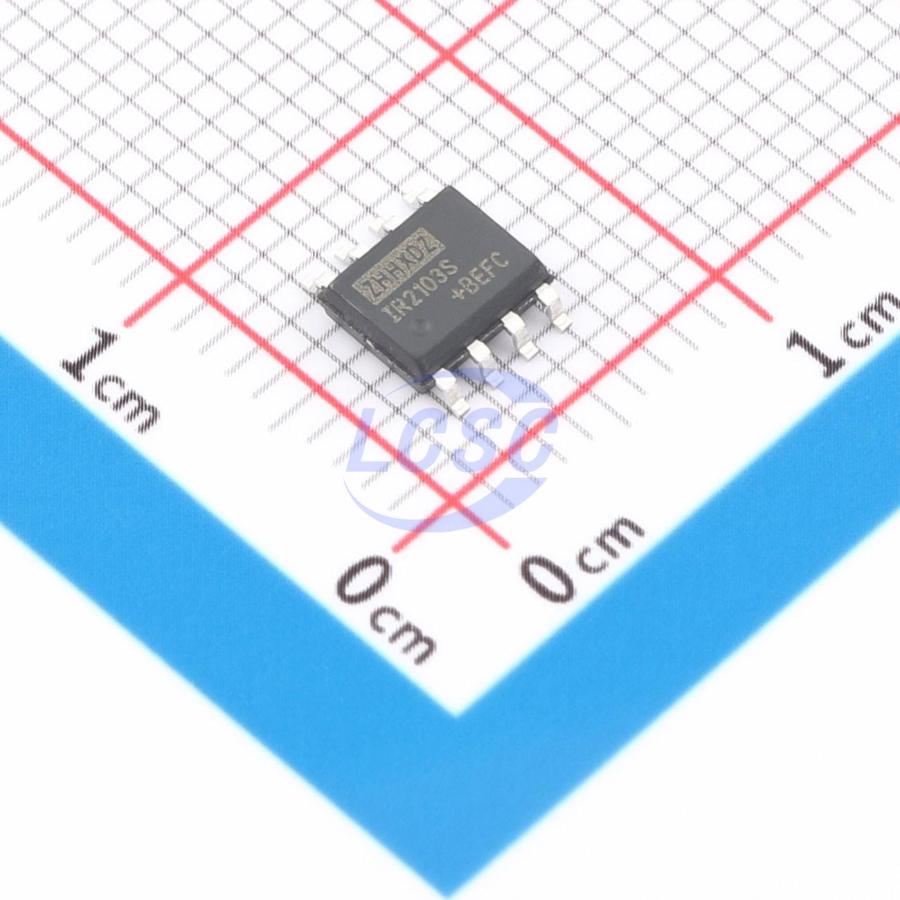

IR2103STRPBF-HX
10V~20V SOIC-8 Gate Drivers
- Manufacturer
- ZHHXDZ
- Manufacturer part #
- IR2103STRPBF-HX
- Store part #
- C51934036
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,490 in stock
#C51934036
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.70 | ₹143.50 |
| 50+ | ₹22.69 | ₹1,134.50 |
| 150+ | ₹20.11 | ₹3,016.50 |
| 500+ | ₹16.89 | ₹8,445.00 |
| 2,500+ | ₹15.47 | ₹38,675.00 |
| 5,000+ | ₹14.61 | ₹73,050.00 |
5 × ₹28.70
₹143.50
excl. GST
₹169.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IR2103STRPBF-HX
₹143.50 for 5 + GST
Specifications
- Input Logic Level - Low
- 800mV
- Low Level Delay Time
- 680ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 150uA
- Input Logic Level - High
- 3V
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Rise Time
- 100ns
- Fall Time
- 50ns
- Features
- Interleaved conduction protection;Dead-time control
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.115 g
Overview
IR2103STRPBF-HX is a high-voltage, high-speed driver designed to drive power MOSFETs and IGBTs, with output channels referenced to the high-side and low-side respectively. The device employs proprietary high-voltage IC and latch-up immune CMOS technology, delivering a robust monolithic structure. Logic inputs are compatible with standard CMOS or LSTTL outputs, with logic levels down to 3.3V. The output drivers feature high-pulse-current buffer stages specifically designed to minimize shoot-through current between drivers. The floating channel enables driving of N-channel power MOSFETs or IGBTs in high-side configurations at operating voltages up to 600V.
Key features
- Floating channel designed for bootstrap operation
- Full operating voltage up to +600V
- Tolerant of negative transient voltages
- Immune to dV/dt
- Gate drive supply voltage range 10V ~ 20V
- Undervoltage lockout
- Compatible with 3.3V, 5V, and 15V logic
- Cross-conduction prevention logic
- Matched propagation delay for both channels
- Internally set dead time
- High-side output in phase with HIN input
- Low-side output inverted from LIN input
