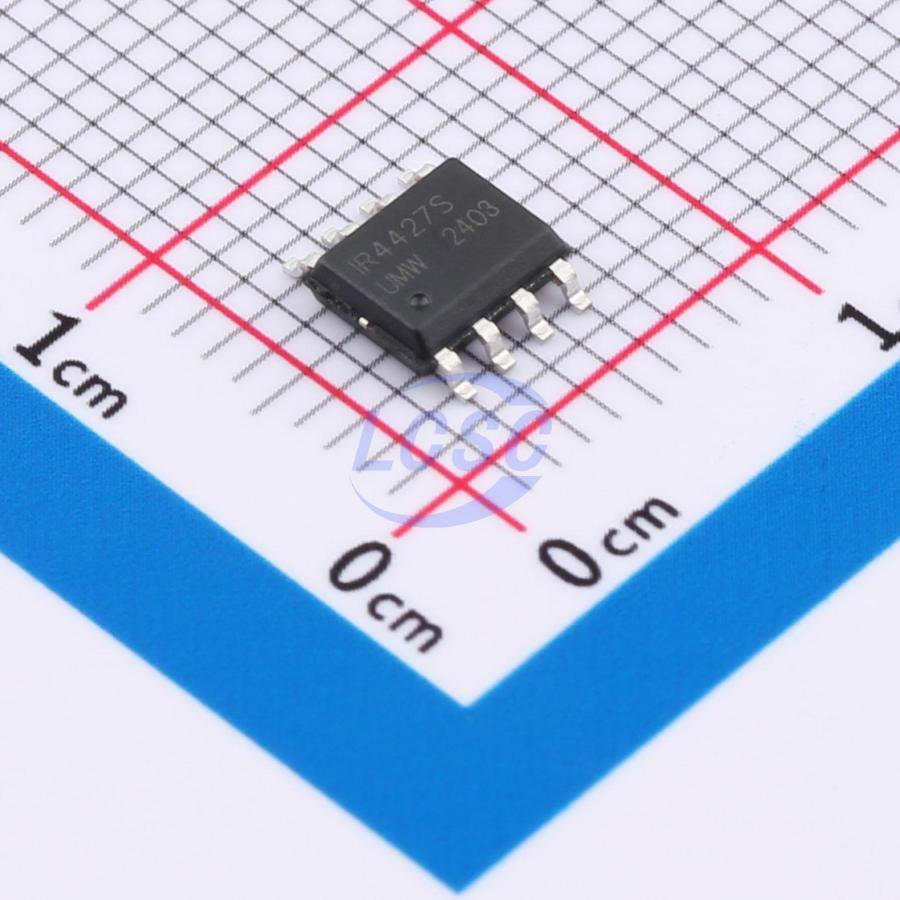

IR4427STR(UMW)
4.5V~25V 2A SOP-8 Gate Drivers RoHS
Dual 2A Peak High-Speed Low-Side Power-MOSFET Drivers
- Manufacturer
- UMW
- Manufacturer part #
- IR4427STR(UMW)
- Store part #
- C20623183
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,305 in stock
#C20623183
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.61 | ₹193.05 |
| 50+ | ₹30.06 | ₹1,503.00 |
| 150+ | ₹26.41 | ₹3,961.50 |
| 500+ | ₹21.82 | ₹10,910.00 |
| 2,500+ | ₹19.79 | ₹49,475.00 |
| 5,000+ | ₹18.56 | ₹92,800.00 |
5 × ₹38.61
₹193.05
excl. GST
₹227.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IR4427STR(UMW)
₹193.05 for 5 + GST
Specifications
- Low Level Delay Time
- 30ns
- High Level Delay Time
- 30ns
- Quiescent Current
- 1mA
- Voltage - Supply
- 4.5V~25V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Low Side
- Rise Time
- 30ns
- Fall Time
- 30ns
- Current - Output High(IOH)
- 2A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.216 g
Overview
UMW IR4427STR is a power switch driver. It features matched rise and fall times when charging and discharging the gates of power switches. The UMW IR4427STR exhibits high latch-up resistance under all conditions within its rated power and voltage range. When noise spikes of up to 5V (either polarity) appear on the ground pin, the UMW IR4427STR will not be damaged. The UMW IR4427STR can withstand reverse currents of up to 500 mA forcing its output low without causing damage or logic upset. All ports are fully protected against ESD up to 2.0 kV.
Applications
- Switching power supplies
- Line drivers
- Pulse transformer drivers
- MOSFET and IGBT gate drivers
- Motor drives
Key features
- Latch-up protection: withstands 0.5 A reverse current
- Input capability for negative voltage handling (-10 V)
- Low output impedance
- Two independent gate drive channels
- 2 A peak output current
- 4.5 to 25 V single-supply range
- High capacitive load drive capability
- Operating temperature range: -40 to 125℃
- Turn-on/turn-off delay: 30 ns
- Pulse generators
- Switching power supplies
- DC-DC converters
- Class D switching amplifiers
