InfineonDatasheet (PDF)

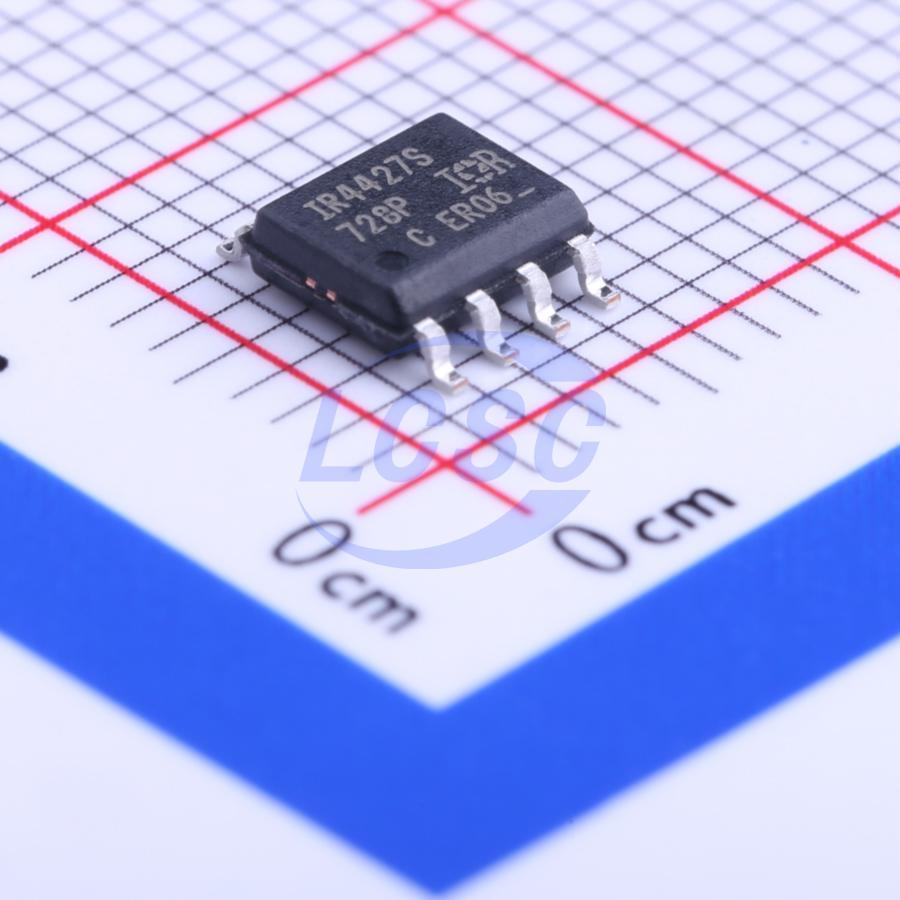

IR4427STRPBF
1.5A 9V~20V 1.5A SOIC-8 Gate Drivers RoHS
SOIC-8ROHS3 CompliantActive
DUAL LOW SIDE DRIVER
- Manufacturer
- Infineon
- Manufacturer part #
- IR4427STRPBF
- Store part #
- C49058
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,850 in stock
#C49058
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.85 | ₹152.85 |
| 10+ | ₹124.80 | ₹1,248.00 |
| 30+ | ₹110.67 | ₹3,320.10 |
| 100+ | ₹96.54 | ₹9,654.00 |
| 500+ | ₹76.54 | ₹38,270.00 |
| 1,000+ | ₹72.18 | ₹72,180.00 |
1 × ₹152.85
₹152.85
excl. GST
₹180.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IR4427STRPBF
₹152.85 for 1 + GST
Specifications
- Rise Time
- 15ns
- Low Level Delay Time
- 85ns
- High Level Delay Time
- 65ns
- Fall Time
- 10ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 1.5A
- Load Type
- MOSFET;IGBT
- Quiescent Current
- 100uA
- Voltage - Supply
- 9V~20V
- Operating Temperature
- -40℃~+150℃
- Driven Configuration
- Low Side
- Current - Output Low(IOL)
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.275 g
Overview
The IR4426/IR4427/IR4428 (S) is a low voltage, high speed power MOSFET and IGBT driver. Proprietary latch immune CMOS technologies enable ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays between two channels are matched.
Key features
- Gate drive supply range from 6 to 20V
- CMOS Schmitt-triggered inputs
- Matched propagation delay for both channels
- Outputs out of phase with inputs (IR4426)
- Outputs in phase with inputs (IR4427)
- OutputA out of phase with inputA and OutputB in phase with inputB (IR4428)
- Also available LEAD-FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IR4427STRPBF-TUDI#C54935218Tudi · SOP-8 | Tudi | SOP-8 | 192 | ₹58.98 · 192 in stock | View |
 | GT4427DTR#C19267459XBLW · SOP-8 | XBLW | SOP-8 | 1,674 | ₹56.06 · 1,674 in stock | View |
 | COS4427SR#C2685358COSINE · SOP-8 | COSINE | SOP-8 | 4,485 | ₹51.36 · 4,485 in stock | View |
 | TF0227-TAH#C2836238TFSS · SOIC-8 | TFSS | SOIC-8 | 252 | ₹107.49 · 252 in stock | View |
