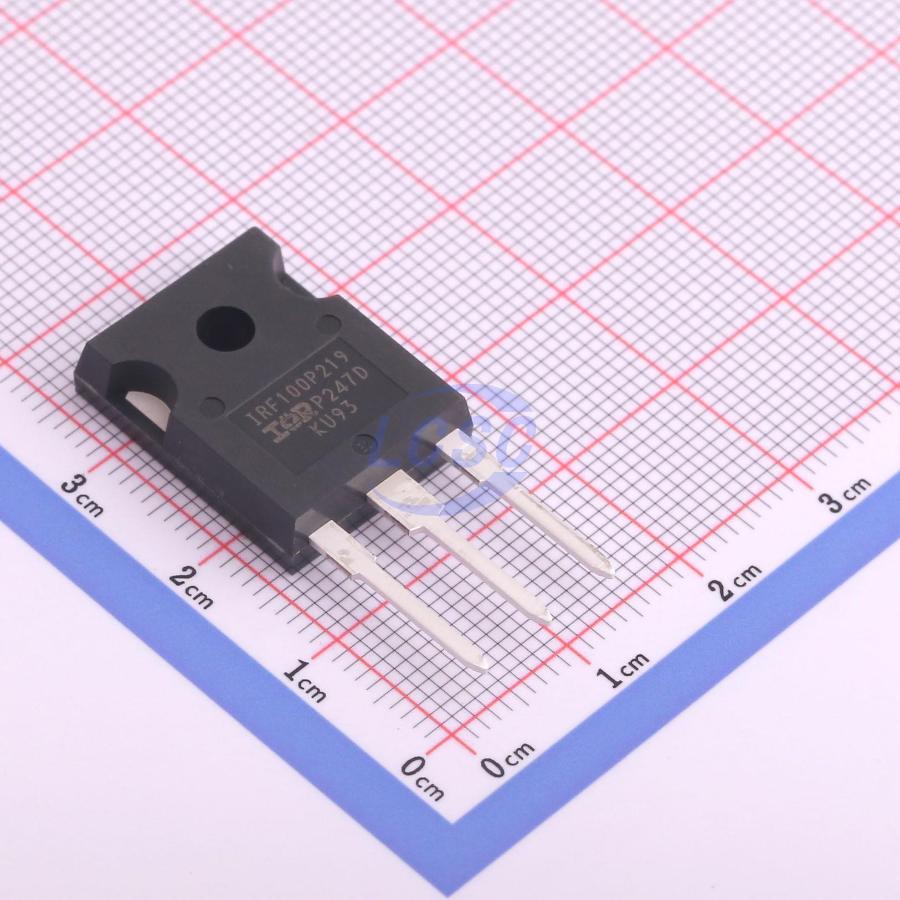

IRF100P219AKMA1
N-Channel 100V 316A 3.8W Through Hole TO-247-3
TO-247-3ROHS3 CompliantActive
MOSFET N-CH 100V 316A TO-247-3
- Manufacturer
- Infineon
- Manufacturer part #
- IRF100P219AKMA1
- Store part #
- C3289059
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C3289059
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹635.38 | ₹635.38 |
| 10+ | ₹551.51 | ₹5,515.10 |
| 25+ | ₹501.75 | ₹12,543.75 |
| 100+ | ₹451.33 | ₹45,133.00 |
| 500+ | ₹428.08 | ₹2,14,040.00 |
| 1,000+ | ₹417.64 | ₹4,17,640.00 |
1 × ₹635.38
₹635.38
excl. GST
₹749.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRF100P219AKMA1
₹635.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.8nF
- Ciss-Input Capacitance
- 12nF
- Pd - Power Dissipation
- 3.8W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 316A
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 1.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 210nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7 g
Overview
Applications
- Synchronous rectifier
- DC-DC converter
- Battery charger
- Switch-mode and resonant-mode power supply
- DC chopper
- AC motor drive
- Uninterruptible power supply
- High-speed power switching application
Key features
- Very low RDS(on)
- Excellent gate charge x RDS(on) (FOM)
- Optimized ∑w
- 175°C operating temperature
- Product validation according to JEDEC standard
- Optimized for broadest availability from distribution partners
