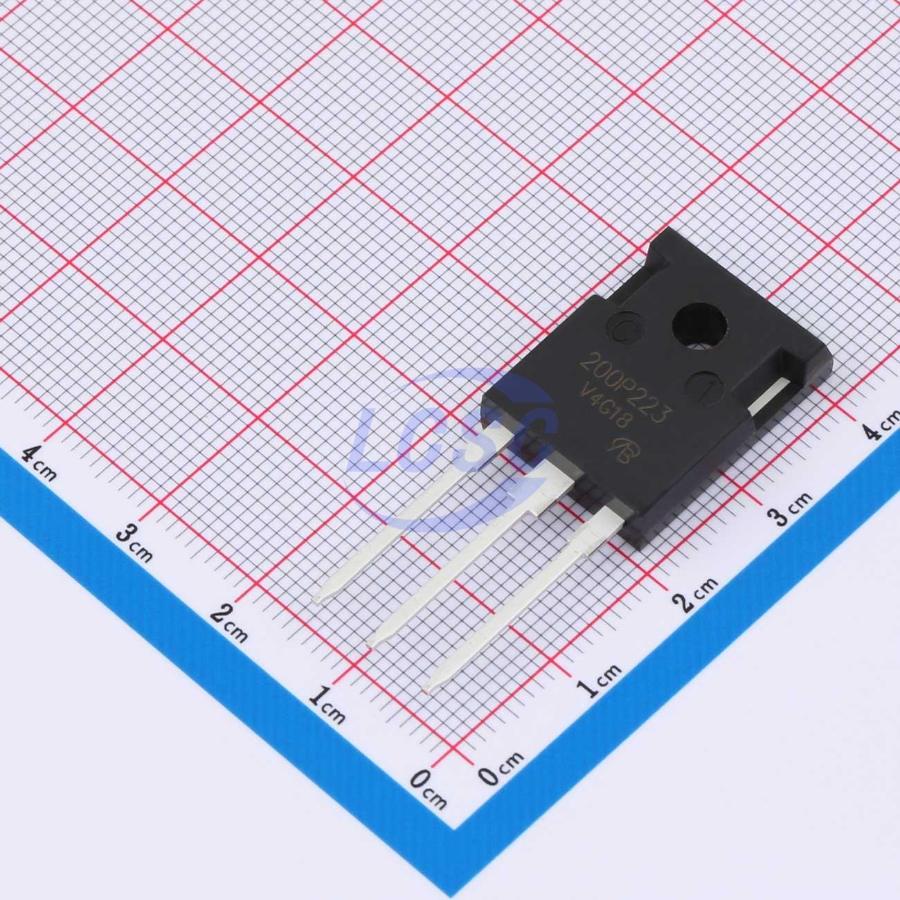

IRF200P223-VB
N-Channel 200V 110A 110W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 200V 110A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF200P223-VB
- Store part #
- C39831421
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C39831421
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹399.32 | ₹399.32 |
| 10+ | ₹341.33 | ₹3,413.30 |
| 30+ | ₹306.90 | ₹9,207.00 |
| 90+ | ₹272.02 | ₹24,481.80 |
| 510+ | ₹256.05 | ₹1,30,585.50 |
| 990+ | ₹248.71 | ₹2,46,222.90 |
1 × ₹399.32
₹399.32
excl. GST
₹471.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IRF200P223-VB
₹399.32 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 246pF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 6.8nF
- Pd - Power Dissipation
- 110W
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 75nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.6 g
Overview
CS60N20 A8R is a silicon N-channel enhancement-mode VDMOSFET fabricated using self-aligned planar technology, which reduces conduction losses, improves switching performance, and enhances avalanche energy. This transistor is suitable for various power switching circuits to achieve system miniaturization and higher efficiency. Available in TO-220AB package, RoHS compliant.
Applications
- Power supplies:
- Uninterruptible power supplies
- AC/DC switch-mode power supplies
- Lighting
- Synchronous rectification
- DC/DC converter
- Motor drive switch
- DC/AC inverter
- Solar micro inverter
- Class D audio amplifier
Key features
- SGT technology Power MOSFET
- 100% Rg and UIS tested
- Maximum 175°C junction temperature
