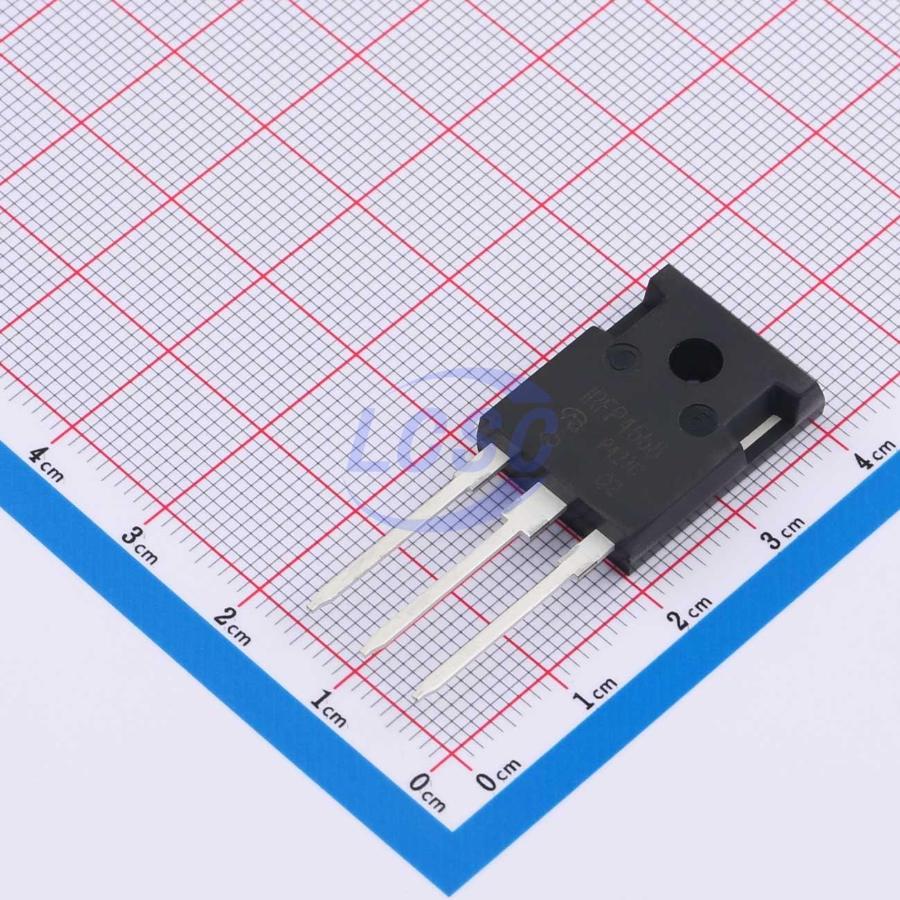

IRFP4668PBF-VB
N-Channel 200V 110A 110W Through Hole TO-247AC
TO-247ACRoHSActive
MOSFET N-CH 200V 110A TO-247AC
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFP4668PBF-VB
- Store part #
- C39831425
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C39831425
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹492.00 | ₹492.00 |
| 10+ | ₹432.13 | ₹4,321.30 |
| 30+ | ₹340.26 | ₹10,207.80 |
| 90+ | ₹304.34 | ₹27,390.60 |
| 510+ | ₹287.58 | ₹1,46,665.80 |
| 990+ | ₹280.17 | ₹2,77,368.30 |
1 × ₹492.00
₹492.00
excl. GST
₹580.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IRFP4668PBF-VB
₹492.00 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 246pF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 6.8nF
- Pd - Power Dissipation
- 110W
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 75nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 5 g
Overview
Applications
- Power supplies:
- Uninterruptible power supplies
- AC/DC switch-mode power supplies
- Lighting
- Synchronous rectification
- DC/DC converter
- Motor drive switch
- DC/AC inverter
- Solar micro inverter
- Class D audio amplifier
Key features
- SGT technology Power MOSFET
- 100 % Rg and UIS tested
- Maximum 175 °C junction temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF200P223-VB#C39831421VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹399.32 · 5 in stock | View |
 | SUG90090E-VB#C39831422VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 50 | ₹525.73 · 50 in stock | View |
 | AGM20T09AT-VB#C39831426VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹399.32 · 5 in stock | View |
 | HSX80N20-VB#C39831427VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹399.32 · 5 in stock | View |
 | IXFH220N20X3-VB#C39831431VBsemi Elec · TO-247 | VBsemi Elec | TO-247 | 5 | ₹399.32 · 5 in stock | View |
