VISHAYDatasheet (PDF)

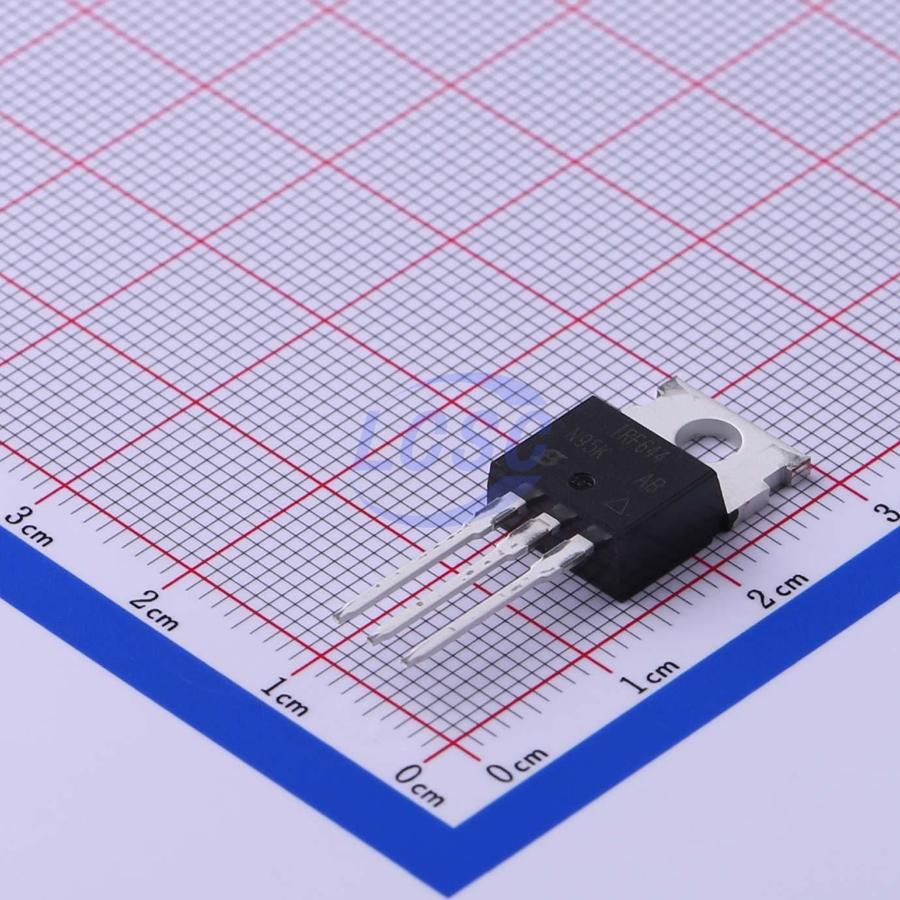

IRF644PBF
N-Channel 250V 8.5A 125W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 250V 8.5A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF644PBF
- Store part #
- C469331
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C469331
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹206.68 | ₹206.68 |
| 10+ | ₹170.39 | ₹1,703.90 |
| 50+ | ₹150.29 | ₹7,514.50 |
| 100+ | ₹127.74 | ₹12,774.00 |
| 500+ | ₹117.89 | ₹58,945.00 |
| 1,000+ | ₹113.38 | ₹1,13,380.00 |
1 × ₹206.68
₹206.68
excl. GST
₹243.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF644PBF
₹206.68 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Current - Continuous Drain(Id)
- 8.5A
- Reverse Transfer Capacitance (Crss)
- 85pF
- RDS(on)
- 280mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 68nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.76 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Fast switching
- Ease of paralleling
- Simple drive requirements
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQP16N25-VB#C7494484VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹156.31 · 20 in stock | View |
 | CEPF634-VB#C7568988VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹128.56 · 20 in stock | View |
 | IRF644PBF-VB#C7569015VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹128.56 · 2 in stock | View |
 | MTP10N25-VB#C7569037VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 40 | ₹127.78 · 40 in stock | View |
 | IRF644NPBF-VB#C7568806VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 2 | ₹131.49 · 2 in stock | View |
