VISHAYDatasheet (PDF)

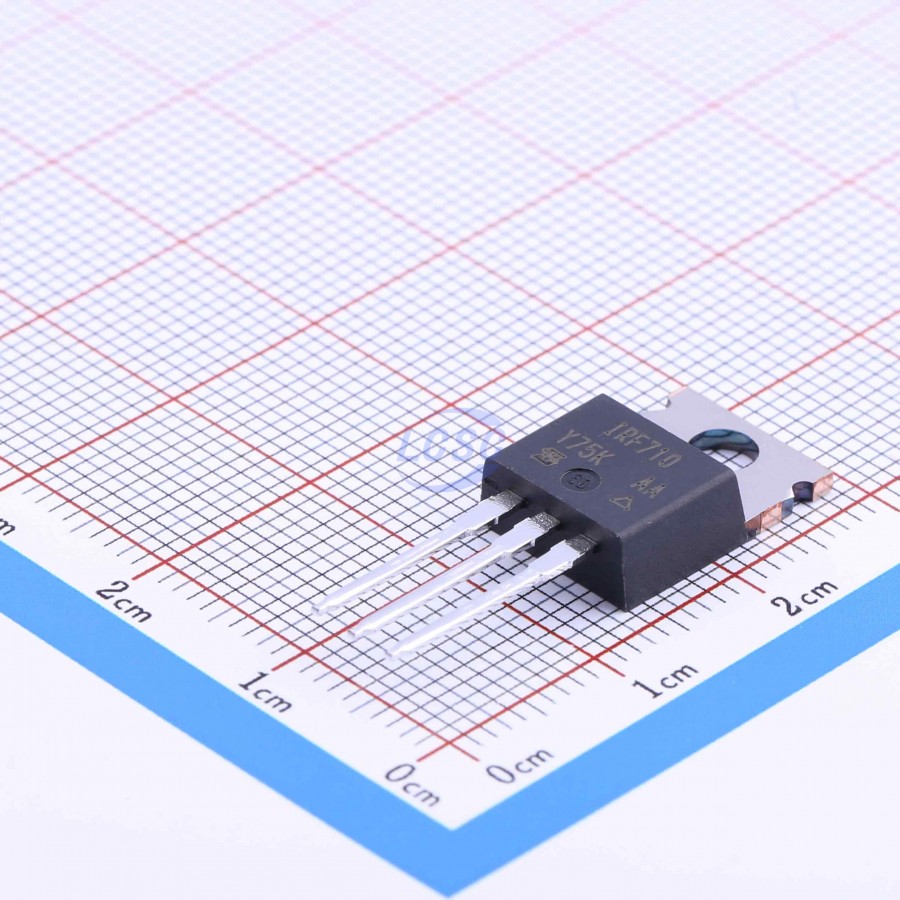

IRF710PBF
N-Channel 400V 2A 36W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 400V 2A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF710PBF
- Store part #
- C2600
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C2600
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.37 | ₹155.37 |
| 10+ | ₹129.09 | ₹1,290.90 |
| 30+ | ₹114.74 | ₹3,442.20 |
| 100+ | ₹98.44 | ₹9,844.00 |
| 500+ | ₹91.05 | ₹45,525.00 |
| 1,000+ | ₹87.79 | ₹87,790.00 |
1 × ₹155.37
₹155.37
excl. GST
₹183.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF710PBF
₹155.37 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 6.3pF
- Ciss-Input Capacitance
- 34pF
- Pd - Power Dissipation
- 36W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 400V
- Current - Continuous Drain(Id)
- 2A
- Reverse Transfer Capacitance (Crss)
- 6.3pF
- RDS(on)
- 3.6Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 17nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.75 g
Overview
Third generation Power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
