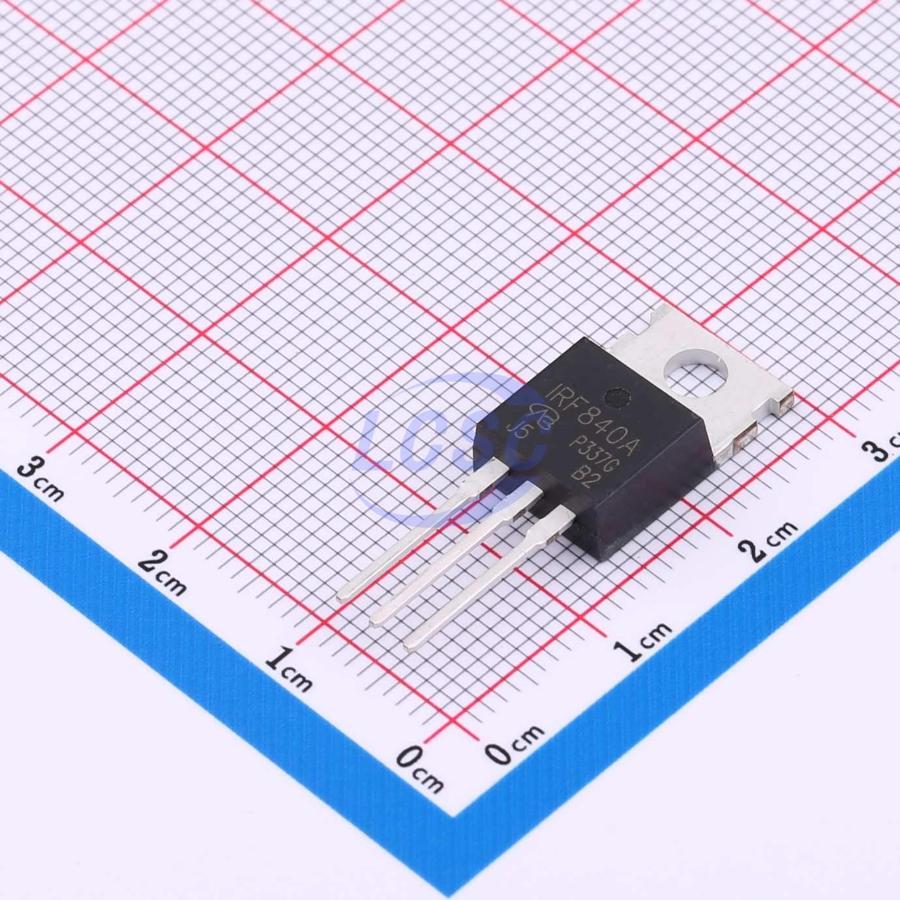

IRF840APBF-VB
N-Channel 500V 13A 250W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 500V 13A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF840APBF-VB
- Store part #
- C18212444
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C18212444
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.76 | ₹142.76 |
| 10+ | ₹116.27 | ₹1,162.70 |
| 50+ | ₹94.09 | ₹4,704.50 |
| 100+ | ₹80.84 | ₹8,084.00 |
| 500+ | ₹73.02 | ₹36,510.00 |
| 1,000+ | ₹68.89 | ₹68,890.00 |
1 × ₹142.76
₹142.76
excl. GST
₹168.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF840APBF-VB
₹142.76 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 290pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 1.91nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 660mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.82 g
Overview
Key features
- Lower Gate Charge Qg Results in Simpler Drive Reqirements
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF842PBF-VB#C19188105VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹137.17 · 20 in stock | View |
 | SVF840T-VB#C19711293VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹131.92 · 8 in stock | View |
 | 2SK1158-VB#C20417606VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹137.17 · 20 in stock | View |
 | CEP730G-VB#C20755487VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹137.17 · 20 in stock | View |
 | IRF843PBF-VB#C22389313VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹131.92 · 10 in stock | View |
