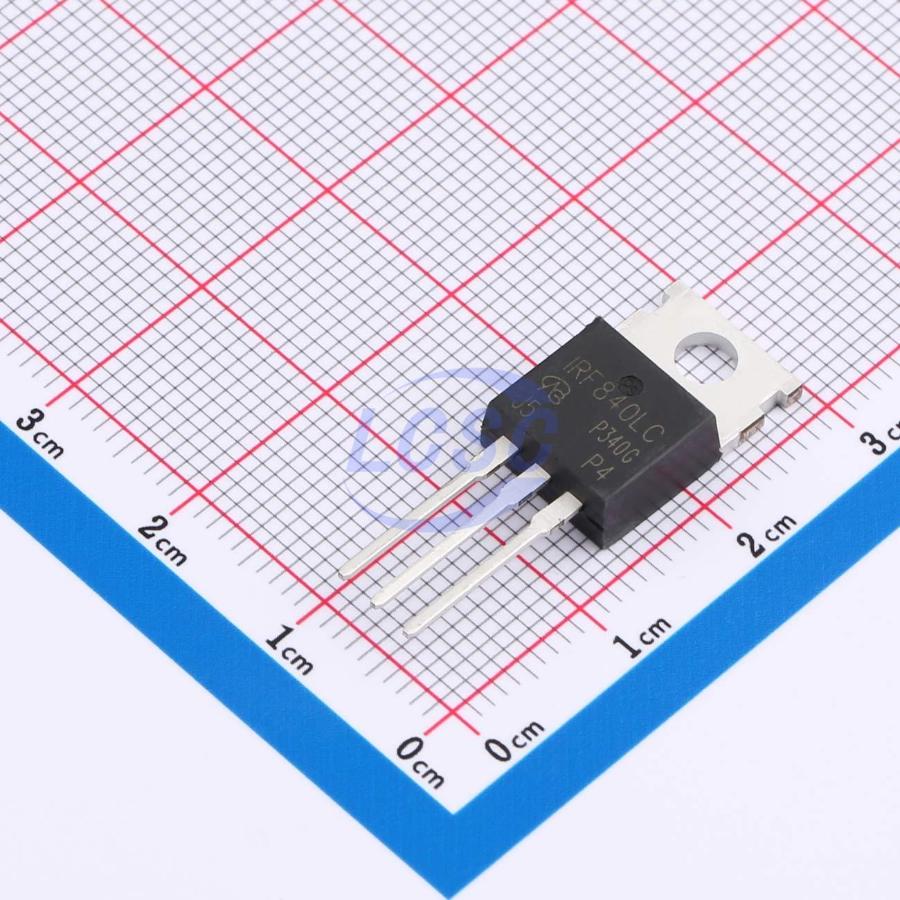

IRF840LCPBF-VB
N-Channel 500V 13A 250W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 500V 13A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRF840LCPBF-VB
- Store part #
- C18794912
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33 in stock
#C18794912
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.79 | ₹158.79 |
| 10+ | ₹132.29 | ₹1,322.90 |
| 50+ | ₹100.36 | ₹5,018.00 |
| 100+ | ₹87.33 | ₹8,733.00 |
| 500+ | ₹79.51 | ₹39,755.00 |
| 1,000+ | ₹75.38 | ₹75,380.00 |
1 × ₹158.79
₹158.79
excl. GST
₹187.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF840LCPBF-VB
₹158.79 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 2.73nF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 1.91nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 11pF
- RDS(on)
- 660mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 81nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.205 g
Overview
These N-channel enhancement-mode power MOSFETs are designed using advanced trench technology, featuring excellent on-resistance (Rdson) and low gate charge, RoHS compliant.
Applications
- Power switching applications - Inverter management systems - Power tools - Automotive electronics
Key features
- Lower Gate Charge Qg Results in Simpler Drive Reqirements
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | K1158-VB#C20755369VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹137.17 · 20 in stock | View |
 | IRF840APBF-VB#C18212444VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹142.76 · 5 in stock | View |
 | IRF842PBF-VB#C19188105VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹137.17 · 20 in stock | View |
 | SVF840T-VB#C19711293VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹131.92 · 8 in stock | View |
 | 2SK1158-VB#C20417606VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹137.17 · 20 in stock | View |
