VISHAYDatasheet (PDF)

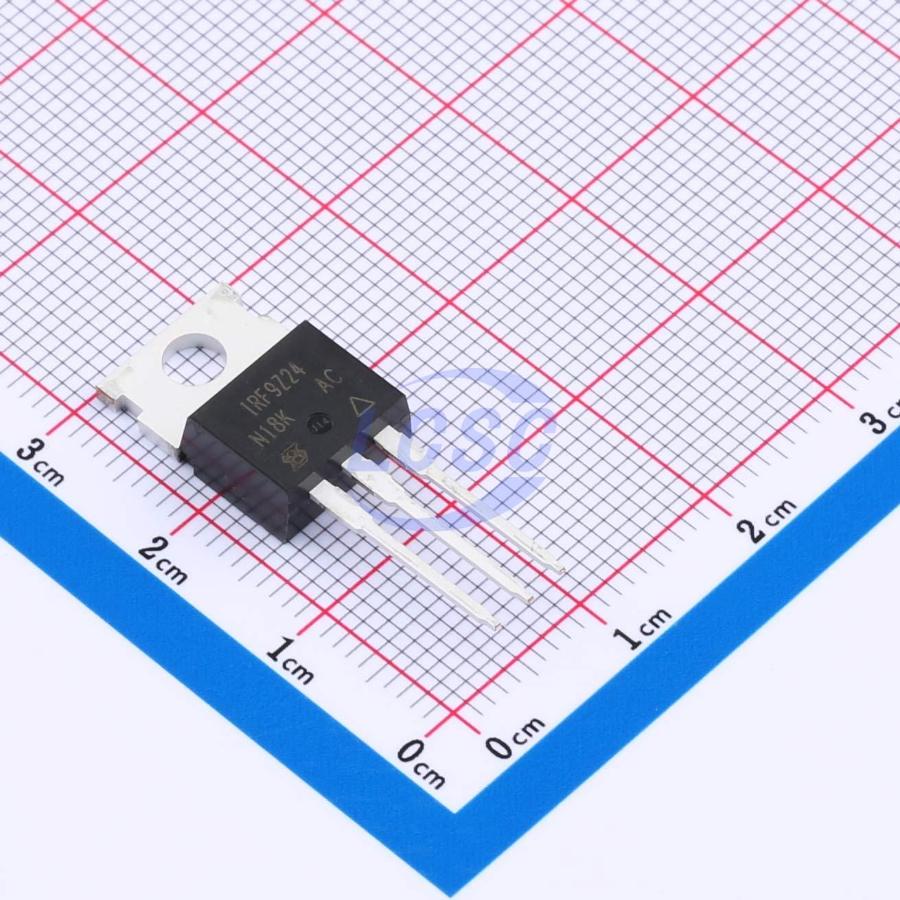

IRF9Z24PBF
P-Channel 60V 7.7A 60W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET P-CH 60V 7.7A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRF9Z24PBF
- Store part #
- C727675
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C727675
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.22 | ₹170.22 |
| 10+ | ₹143.37 | ₹1,433.70 |
| 50+ | ₹116.73 | ₹5,836.50 |
| 100+ | ₹100.06 | ₹10,006.00 |
| 500+ | ₹92.74 | ₹46,370.00 |
| 1,000+ | ₹89.49 | ₹89,490.00 |
1 × ₹170.22
₹170.22
excl. GST
₹200.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRF9Z24PBF
₹170.22 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 360pF
- Ciss-Input Capacitance
- 570pF
- Pd - Power Dissipation
- 60W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 7.7A
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 280mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.81 g
Overview
Third generation Power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- P-Channel
- 175 °C Operating Temperature
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPP15P10PL H#C539311Infineon · TO-220 | Infineon | TO-220 | 22 | ₹239.66 · 22 in stock | View |
 | FQPF17P06-VB#C19711322VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 4 | ₹85.92 · 4 in stock | View |
 | IRF9540#C7496537Slkor · TO-220 | Slkor | TO-220 | 66 | ₹78.37 · 66 in stock | View |
| HL40P10T#C55058884HL · TO-220 | HL | TO-220 | 1,195 | ₹54.22 · 1,195 in stock | View | |
 | IRF9540NPBF-JSM#C18187958JSMSEMI · TO-220 | JSMSEMI | TO-220 | 79 | ₹76.84 · 79 in stock | View |
