InfineonDatasheet (PDF)

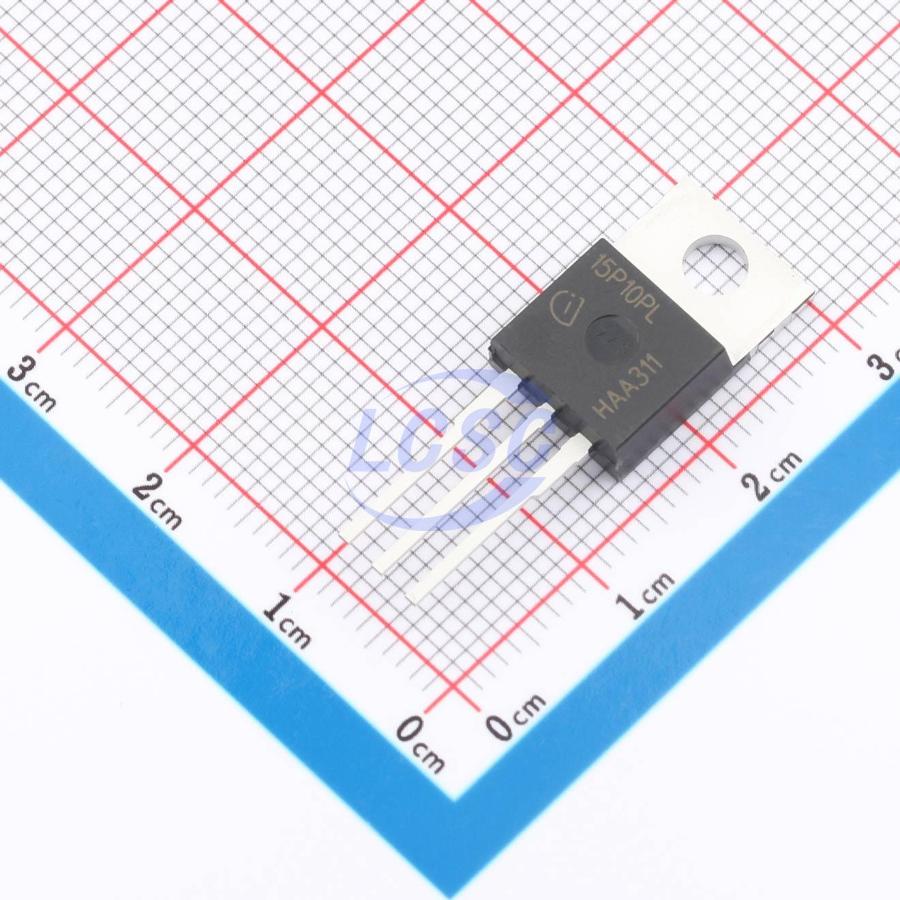

SPP15P10PL H
128W 100V 15A 270mΩ@4.5V 1 P-Channel P-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- SPP15P10PL H
- Store part #
- C539311
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
22 in stock
#C539311
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹239.66 | ₹239.66 |
| 10+ | ₹235.57 | ₹2,355.70 |
| 30+ | ₹232.78 | ₹6,983.40 |
| 100+ | ₹229.99 | ₹22,999.00 |
1 × ₹239.66
₹239.66
excl. GST
₹282.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
SPP15P10PL H
₹239.66 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 272pF
- Ciss-Input Capacitance
- 1.49nF
- Pd - Power Dissipation
- 128W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 180pF
- RDS(on)
- 270mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 62nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.4 g
Overview
Key features
- P-Channel
- Enhancement Mode
- Logic Level
- Avalanche Rated
- Lead-Free Lead Finish; RoHS Compliant
- Halogen-Free per IEC61249-2-21
- Qualified to AEC Q101
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF5210PBF-VB#C55251747VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹145.44 · 5 in stock | View |
 | SUP70101EL-GE3#C5932059VISHAY · TO-220AB | VISHAY | TO-220AB | 40 | ₹540.96 · 40 in stock | View |
| HL40P10T#C55058884HL · TO-220 | HL | TO-220 | 1,195 | ₹54.22 · 1,195 in stock | View | |
 | CMP5940B#C5203734Cmos · TO-220 | Cmos | TO-220 | 103 | ₹58.12 · 103 in stock | View |
 | CMP5950A#C5203729Cmos · TO-220 | Cmos | TO-220 | 68 | ₹93.62 · 68 in stock | View |
