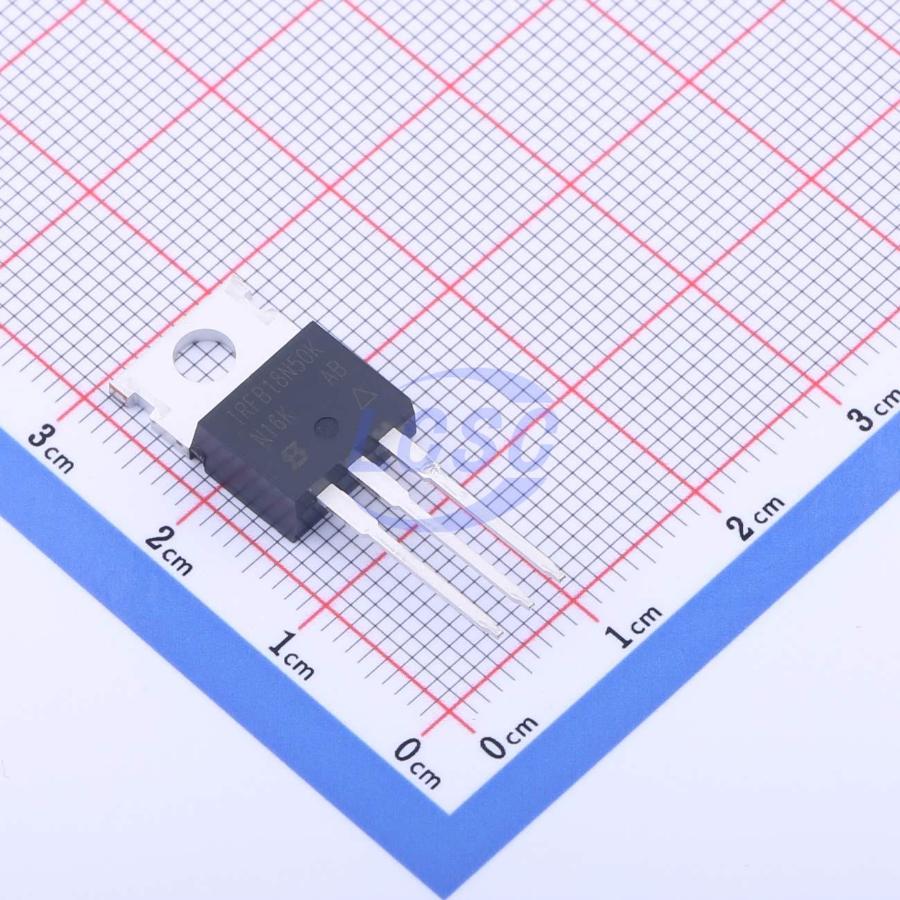

IRFB18N50KPBF
N-Channel 500V 17A 220W Through Hole TO-220
TO-220ROHS3 CompliantActive
MOSFET N-CH 500V 17A TO-220
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFB18N50KPBF
- Store part #
- C2913651
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C2913651
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹669.93 | ₹669.93 |
| 10+ | ₹578.02 | ₹5,780.20 |
| 50+ | ₹490.89 | ₹24,544.50 |
| 100+ | ₹435.69 | ₹43,569.00 |
| 500+ | ₹410.26 | ₹2,05,130.00 |
| 1,000+ | ₹398.75 | ₹3,98,750.00 |
1 × ₹669.93
₹669.93
excl. GST
₹790.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB18N50KPBF
₹669.93 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 330pF
- Ciss-Input Capacitance
- 2.83nF
- Pd - Power Dissipation
- 220W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Current - Continuous Drain(Id)
- 17A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 290mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.9 g
Overview
- Trench power low-voltage MOSFET technology - High-density cell design for low RDS(ON) - High-speed switching
Applications
- Switch mode power supply (SMPS)
- Uninterruptible power supply
- High speed power switching
- Hard switched and high frequency circuits
Key features
- Low gate charge Qg results in simple drive requirement
- Improved gate, avalanche, and dynamic dV/dt ruggedness
- Fully characterized capacitance and avalanche voltage and current
- Low RDS(on)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDP18N50#C11768onsemi · TO-220 | onsemi | TO-220 | 201 | ₹389.62 · 201 in stock | View |
 | STP20NK50Z#C457449ST · TO-220 | ST | TO-220 | 947 | ₹318.54 · 947 in stock | View |
 | FDPF20N50FT#C556443onsemi · TO-220 | onsemi | TO-220 | 39 | ₹844.92 · 39 in stock | View |
 | FDP20N50F#C899149onsemi · TO-220 | onsemi | TO-220 | 1,074 | ₹395.34 · 1,074 in stock | View |
 | CMP20N50A#C55158716Cmos · TO-220 | Cmos | TO-220 | 170 | ₹97.89 · 170 in stock | View |
