InfineonDatasheet (PDF)

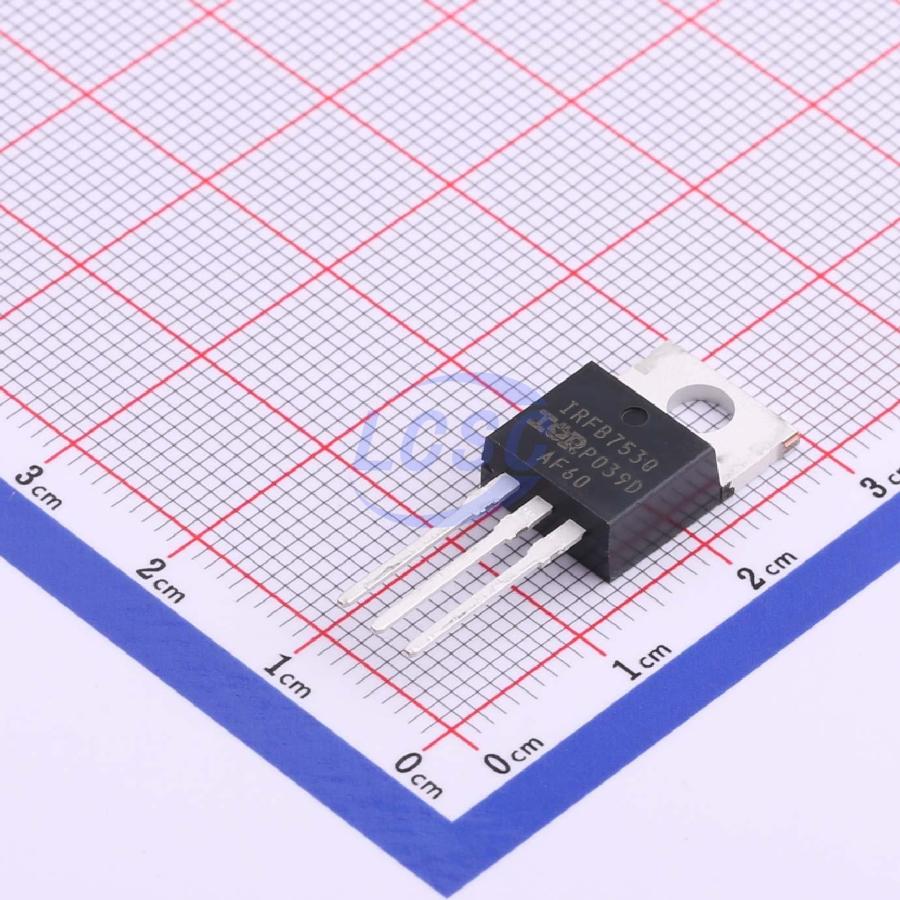

IRFB7530PBF
N-Channel 60V 295A 375W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 60V 295A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRFB7530PBF
- Store part #
- C537869
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C537869
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹563.51 | ₹563.51 |
| 10+ | ₹477.22 | ₹4,772.20 |
| 50+ | ₹425.61 | ₹21,280.50 |
| 100+ | ₹373.80 | ₹37,380.00 |
| 500+ | ₹349.72 | ₹1,74,860.00 |
| 1,000+ | ₹338.89 | ₹3,38,890.00 |
1 × ₹563.51
₹563.51
excl. GST
₹664.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFB7530PBF
₹563.51 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.266nF
- Ciss-Input Capacitance
- 13.703nF
- Pd - Power Dissipation
- 375W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 295A
- Reverse Transfer Capacitance (Crss)
- 806pF
- RDS(on)
- 1.65mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 411nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.9 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC Inverters
Key features
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free, RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRL60B216#C538132Infineon · TO-220AB | Infineon | TO-220AB | 15 | ₹947.45 · 15 in stock | View |
 | PSMN2R5-60PLQ-VB#C52148729VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹264.07 · 3 in stock | View |
 | PSMN2R0-60PSRQ-VB#C52148730VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 8 | ₹223.14 · 8 in stock | View |
 | PSMN2R6-60PS127-VB#C52191084VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹223.14 · 5 in stock | View |
 | PSMN2R5-60PL127-VB#C52191085VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 5 | ₹223.14 · 5 in stock | View |
