InfineonDatasheet (PDF)

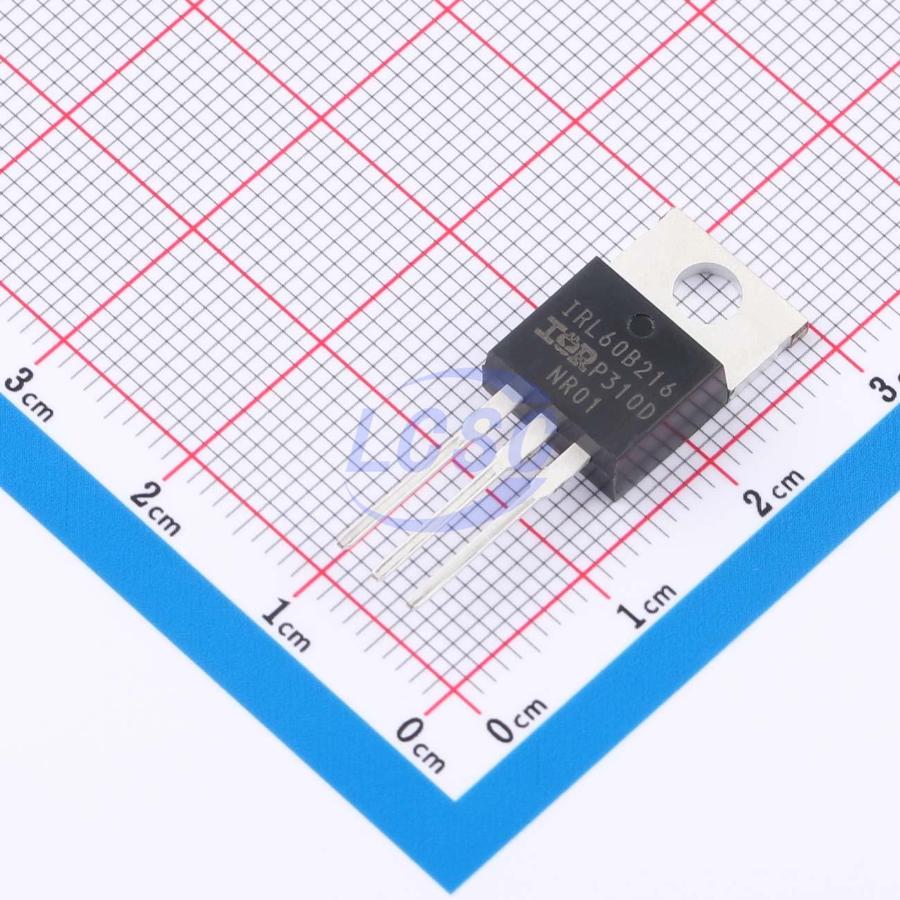

IRL60B216
N-Channel 60V 305A 375W Through Hole TO-220AB
TO-220ABROHS CompliantActive
MOSFET N-CH 60V 305A TO-220AB
- Manufacturer
- Infineon
- Manufacturer part #
- IRL60B216
- Store part #
- C538132
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C538132
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹947.45 | ₹947.45 |
| 10+ | ₹840.41 | ₹8,404.10 |
| 30+ | ₹776.57 | ₹23,297.10 |
| 100+ | ₹712.32 | ₹71,232.00 |
| 500+ | ₹682.65 | ₹3,41,325.00 |
| 1,000+ | ₹669.32 | ₹6,69,320.00 |
1 × ₹947.45
₹947.45
excl. GST
₹1,117.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per tube
IRL60B216
₹947.45 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.26nF
- Ciss-Input Capacitance
- 15.57nF
- Pd - Power Dissipation
- 375W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 305A
- Reverse Transfer Capacitance (Crss)
- 880pF
- RDS(on)
- 1.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 258nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 1,000 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.98 g
Overview
Applications
- Brushed Motor drive applications
- BLDC Motor drive applications
- Battery powered circuits
- Half-bridge and full-bridge topologies
- Synchronous rectifier applications
- Resonant mode power supplies
- OR-ing and redundant power switches
- DC/DC and AC/DC converters
- DC/AC Inverters
Key features
- Optimized for Logic Level Drive
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche SOA
- Enhanced body diode dV/dt and dI/dt Capability
- Lead-Free
- RoHS Compliant, Halogen-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFB7530PBF#C537869Infineon · TO-220AB | Infineon | TO-220AB | 44 | ₹563.51 · 44 in stock | View |
| CSD18536KCS#C2863602TI · TO-220 | TI | TO-220 | 6 | ₹1,084.16 · 6 in stock | View | |
 | HSP0076A#C2903573HUASHUO · TO-220 | HUASHUO | TO-220 | 110 | ₹286.58 · 110 in stock | View |
 | MS8003C#C47361104MIRACLE POWER · TO-220 | MIRACLE POWER | TO-220 | On request | ₹138.98 · 0 in stock | View |
 | IPP120N08S4-03-VB#C54177261VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 5 | ₹369.43 · 5 in stock | View |
