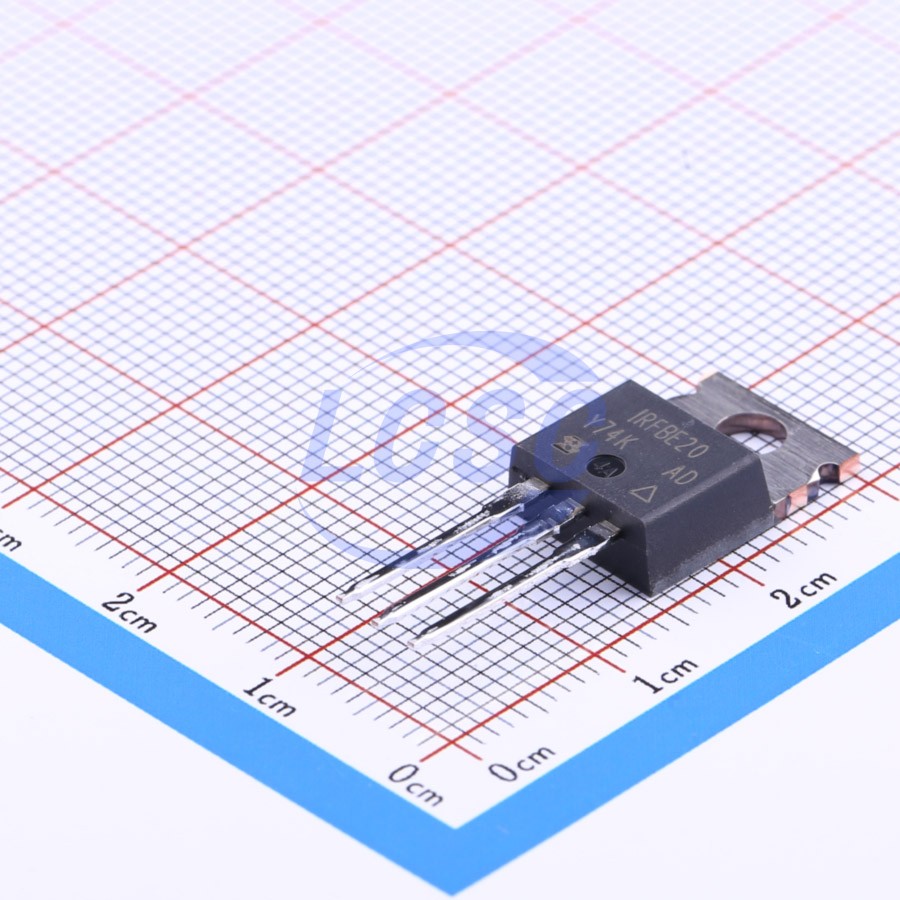

IRFBE20PBF
P-Channel 800V 1.8A 54W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET P-CH 800V 1.8A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFBE20PBF
- Store part #
- C2634
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
199 in stock
#C2634
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹188.41 | ₹188.41 |
| 10+ | ₹156.25 | ₹1,562.50 |
| 50+ | ₹132.34 | ₹6,617.00 |
| 100+ | ₹112.35 | ₹11,235.00 |
| 500+ | ₹103.45 | ₹51,725.00 |
| 1,000+ | ₹99.53 | ₹99,530.00 |
1 × ₹188.41
₹188.41
excl. GST
₹222.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFBE20PBF
₹188.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 150pF
- Ciss-Input Capacitance
- 530pF
- Pd - Power Dissipation
- 54W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Current - Continuous Drain(Id)
- 1.8A
- Reverse Transfer Capacitance (Crss)
- 90pF
- RDS(on)
- 6.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.64 g
Overview
Third Generation HEXFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dv/dt Rating
- Repetitive Avalanche Rated
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Lead-Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFBF20PBF#C466977VISHAY · TO-220AB | VISHAY | TO-220AB | 1,531 | ₹126.60 · 1,531 in stock | View |
 | IRFBG30PBF#C2637VISHAY · TO-220 | VISHAY | TO-220 | 15,990 | ₹144.06 · 15,990 in stock | View |
 | MS12N100FT#C5353713MASPOWER · TO-220 | MASPOWER | TO-220 | 50 | ₹220.07 · 50 in stock | View |
 | STP2NK90Z#C155656ST · TO-220 | ST | TO-220 | 3 | ₹224.06 · 3 in stock | View |
 | IPA80R1K4CEXKSA2#C3278890Infineon · TO-220-FP | Infineon | TO-220-FP | 42 | ₹219.58 · 42 in stock | View |
