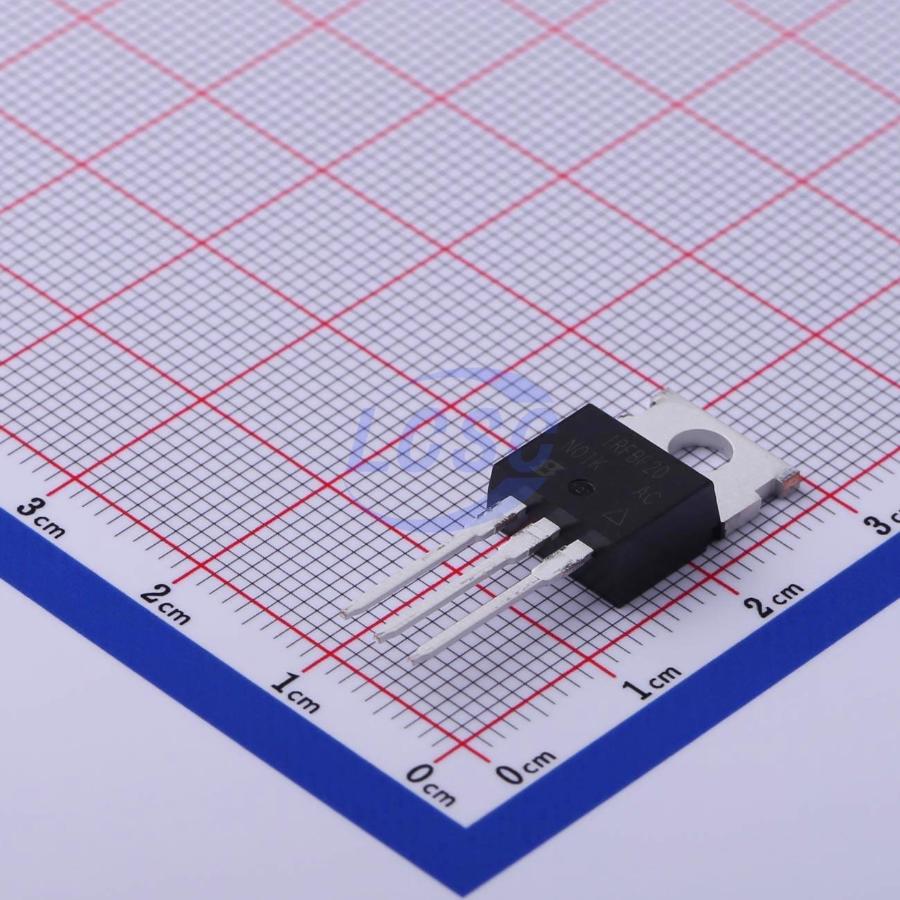

IRFBF20PBF
N-Channel 900V 1.7A 54W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 900V 1.7A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFBF20PBF
- Store part #
- C466977
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,531 in stock
#C466977
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.60 | ₹126.60 |
| 10+ | ₹113.79 | ₹1,137.90 |
| 30+ | ₹106.85 | ₹3,205.50 |
| 100+ | ₹98.81 | ₹9,881.00 |
| 500+ | ₹95.12 | ₹47,560.00 |
| 1,000+ | ₹93.60 | ₹93,600.00 |
1 × ₹126.60
₹126.60
excl. GST
₹149.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFBF20PBF
₹126.60 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 55pF
- Ciss-Input Capacitance
- 490pF
- Pd - Power Dissipation
- 54W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 900V
- Current - Continuous Drain(Id)
- 1.7A
- Reverse Transfer Capacitance (Crss)
- 18pF
- RDS(on)
- 8Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.689 g
Overview
Third generation Power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt Rating
- Repetitve Avalanche Rated
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP2NK100Z#C2965465ST · TO-220-3 | ST | TO-220-3 | 20 | ₹1,040.55 · 20 in stock | View |
| 2SK3566(STA4,Q,M)#C2681118TOSHIBA · TO-220-3 | TOSHIBA | TO-220-3 | 929 | ₹98.18 · 929 in stock | View | |
 | STP2NK90Z#C155656ST · TO-220 | ST | TO-220 | 3 | ₹224.06 · 3 in stock | View |
 | KNP41100A#C2896659KIA Semicon Tech · TO-220 | KIA Semicon Tech | TO-220 | 85 | ₹72.58 · 85 in stock | View |
 | MS10N100HCT0#C55042275MASPOWER · TO-220 | MASPOWER | TO-220 | 68 | ₹191.39 · 68 in stock | View |
