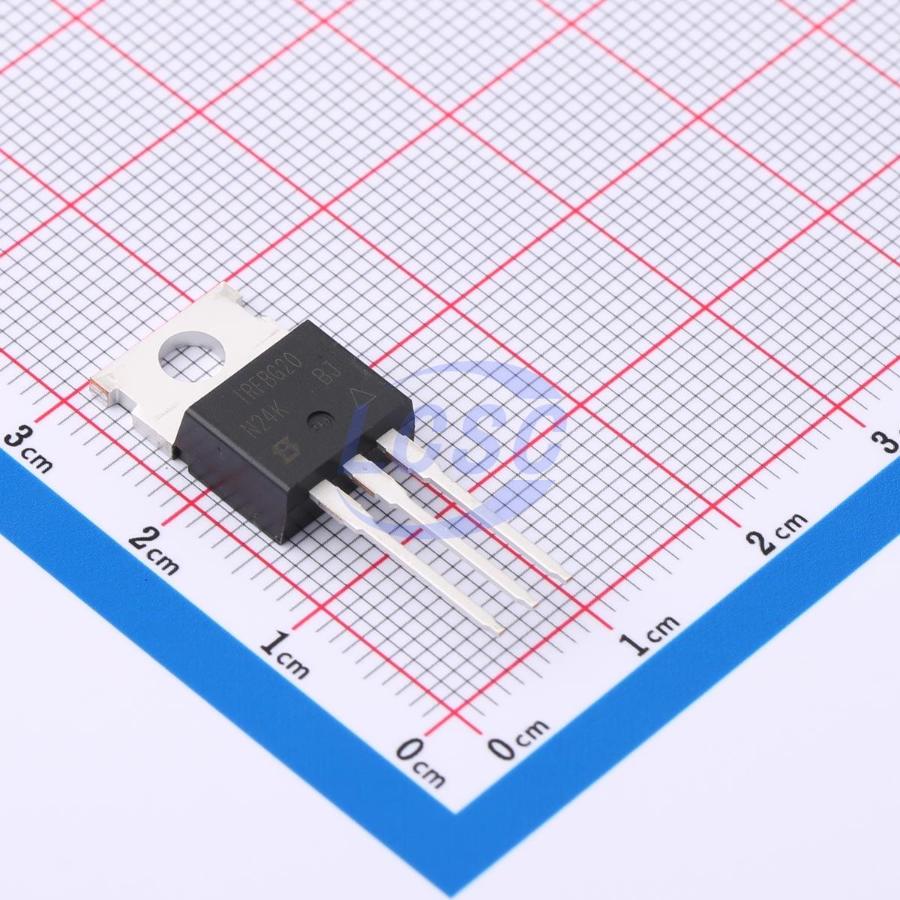

IRFBG20PBF
N-Channel 1kV 0.86A 54W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 1kV 0.86A TO-220AB
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFBG20PBF
- Store part #
- C5224098
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,061 in stock
#C5224098
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹149.27 | ₹149.27 |
| 10+ | ₹122.07 | ₹1,220.70 |
| 50+ | ₹104.66 | ₹5,233.00 |
| 100+ | ₹91.18 | ₹9,118.00 |
| 500+ | ₹83.12 | ₹41,560.00 |
| 1,000+ | ₹79.00 | ₹79,000.00 |
1 × ₹149.27
₹149.27
excl. GST
₹176.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFBG20PBF
₹149.27 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 52pF
- Ciss-Input Capacitance
- 500pF
- Pd - Power Dissipation
- 54W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 1kV
- Current - Continuous Drain(Id)
- 860mA
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 11Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.734 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220AB package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220AB contribute to its wide acceptance throughout the industry.
Key features
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Fast switching
- RoHS Available
- Ease of paralleling
- Simple drive requirements
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | KNP41100A#C2896659KIA Semicon Tech · TO-220 | KIA Semicon Tech | TO-220 | 85 | ₹72.58 · 85 in stock | View |
 | STP2NK100Z#C2965465ST · TO-220-3 | ST | TO-220-3 | 20 | ₹1,040.55 · 20 in stock | View |
 | STP2N105K5#C672111ST · TO-220-3 | ST | TO-220-3 | 9 | ₹702.21 · 9 in stock | View |
 | MS10N100HCT0#C55042275MASPOWER · TO-220 | MASPOWER | TO-220 | 68 | ₹191.39 · 68 in stock | View |
 | MS10N100HGT0#C42445169MASPOWER · TO-220 | MASPOWER | TO-220 | 40 | ₹174.07 · 40 in stock | View |
