VBsemi ElecDatasheet (PDF)

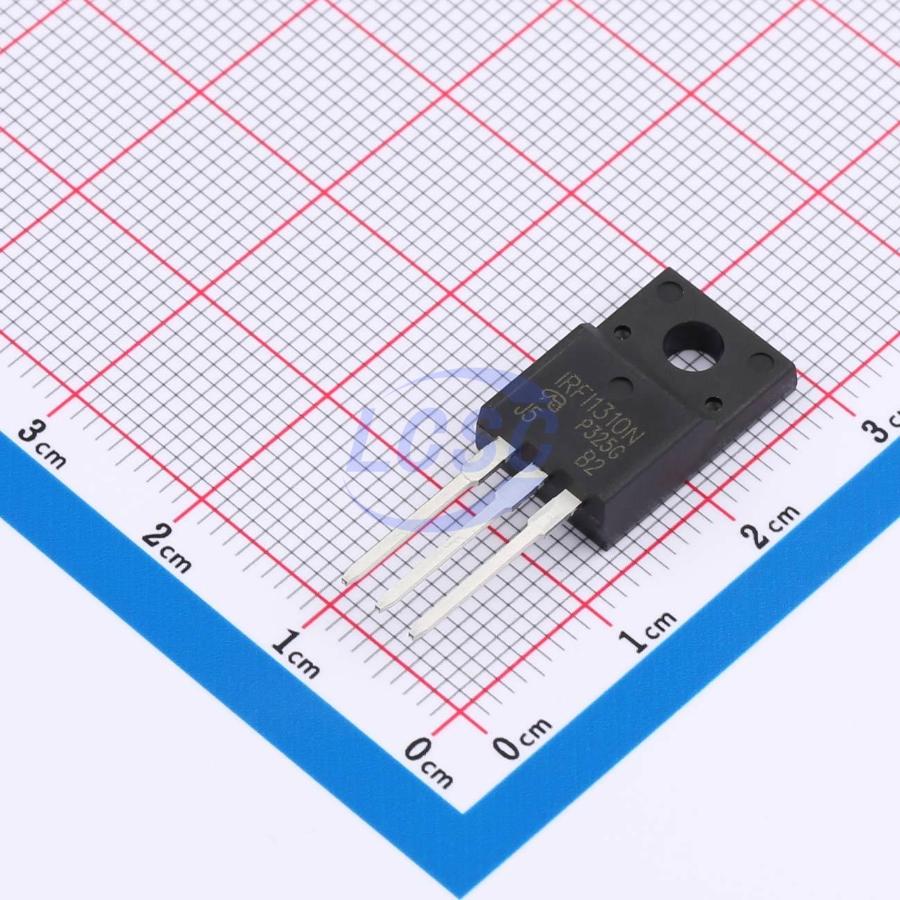

IRFI1310NPBF-VB
100V 50A 360W 34mΩ@10V 1 N-channel N-Channel TO-220F Single FETs, MOSFETs
TO-220FRoHSActive
MOSFET N-CH 100V 50A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFI1310NPBF-VB
- Store part #
- C18795085
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C18795085
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹128.23 | ₹128.23 |
| 10+ | ₹108.86 | ₹1,088.60 |
| 50+ | ₹74.46 | ₹3,723.00 |
| 100+ | ₹64.88 | ₹6,488.00 |
| 500+ | ₹59.22 | ₹29,610.00 |
| 1,000+ | ₹56.17 | ₹56,170.00 |
1 × ₹128.23
₹128.23
excl. GST
₹151.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFI1310NPBF-VB
₹128.23 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 480pF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 5.1nF
- Pd - Power Dissipation
- 360W
- Reverse Transfer Capacitance (Crss)
- 210pF
- RDS(on)
- 34mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 130nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.58 g
Overview
Applications
- Isolated DC/DC Converter
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- 100% gate resistance (Rg) tested
- RoHS compliant
