VISHAYDatasheet (PDF)

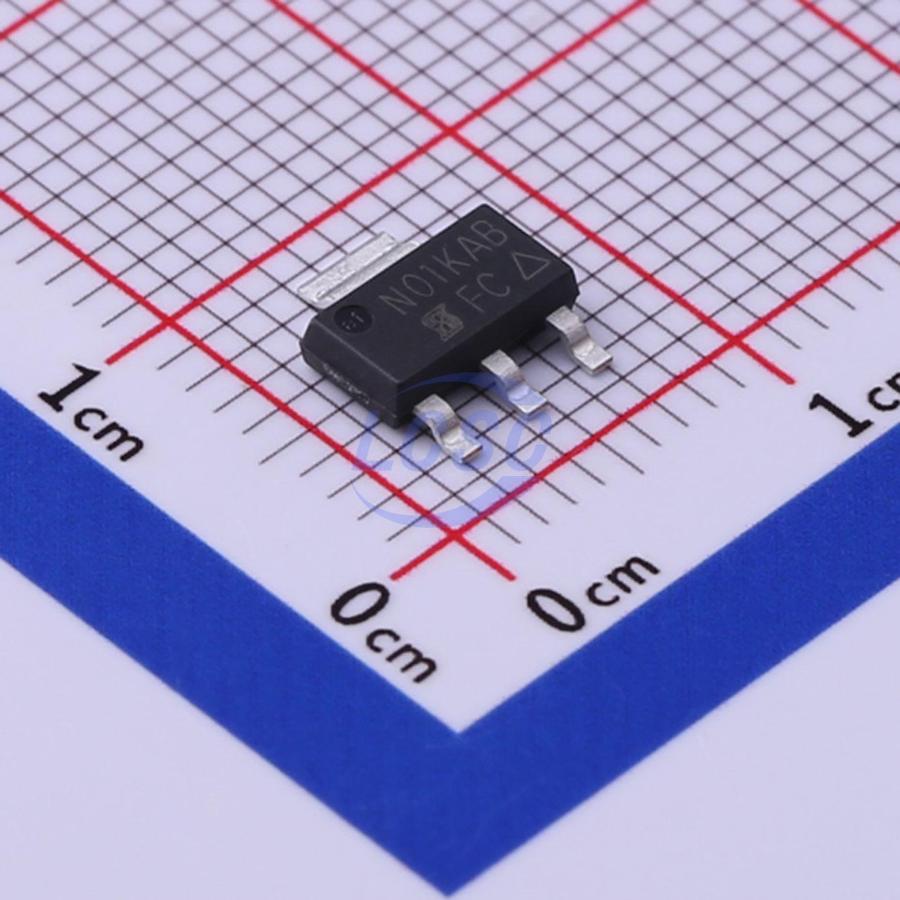

IRFL210TRPBF
N-Channel 200V 960mA 3.1W Surface Mount SOT-223
SOT-223ROHS CompliantSold out at source
MOSFET N-CH 200V 960mA SOT-223
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFL210TRPBF
- Store part #
- C469333
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
442 in stock
#C469333
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.28 | ₹71.28 |
| 10+ | ₹55.39 | ₹553.90 |
| 30+ | ₹48.53 | ₹1,455.90 |
| 100+ | ₹40.15 | ₹4,015.00 |
| 500+ | ₹36.29 | ₹18,145.00 |
| 1,000+ | ₹34.13 | ₹34,130.00 |
1 × ₹71.28
₹71.28
excl. GST
₹84.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFL210TRPBF
₹71.28 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 53pF
- Ciss-Input Capacitance
- 140pF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 200V
- Current - Continuous Drain(Id)
- 960mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 1.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.307 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOT-223 package is designed for surface-mounting using vapor phase, infrared, or wave soldering techniques. Its unique package design allows for easy automatic pick-and-place as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heatsinking. Power dissipation of greater than 1.25 W is possible in a typical surface mount application.
Key features
- Surface mount
- Available in tape and reel
- Dynamic dV/dt rating
- RoHS
- Repetitive avalanche rated
- HALOGEN FREE
- Fast switching
- Ease of paralleling Available
- Simple drive requirements
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBJ1201K#C416323VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 39 | ₹68.56 · 39 in stock | View |
 | IRFL210TRPBF#C3289914VISHAY · SOT-223 | VISHAY | SOT-223 | 4,990 | ₹35.31 · 4,990 in stock | View |
| BSP122,115-VB#C52190936VBsemi Elec · SOT-223 | VBsemi Elec | SOT-223 | 5 | ₹67.05 · 5 in stock | View | |
 | IRFL210TRPBF-TP#C41348194TECH PUBLIC · SOT-223 | TECH PUBLIC | SOT-223 | 4,630 | ₹27.10 · 4,630 in stock | View |
 | HSL03N20#C700961HUASHUO · SOT-223 | HUASHUO | SOT-223 | 1,760 | ₹46.75 · 1,760 in stock | View |
