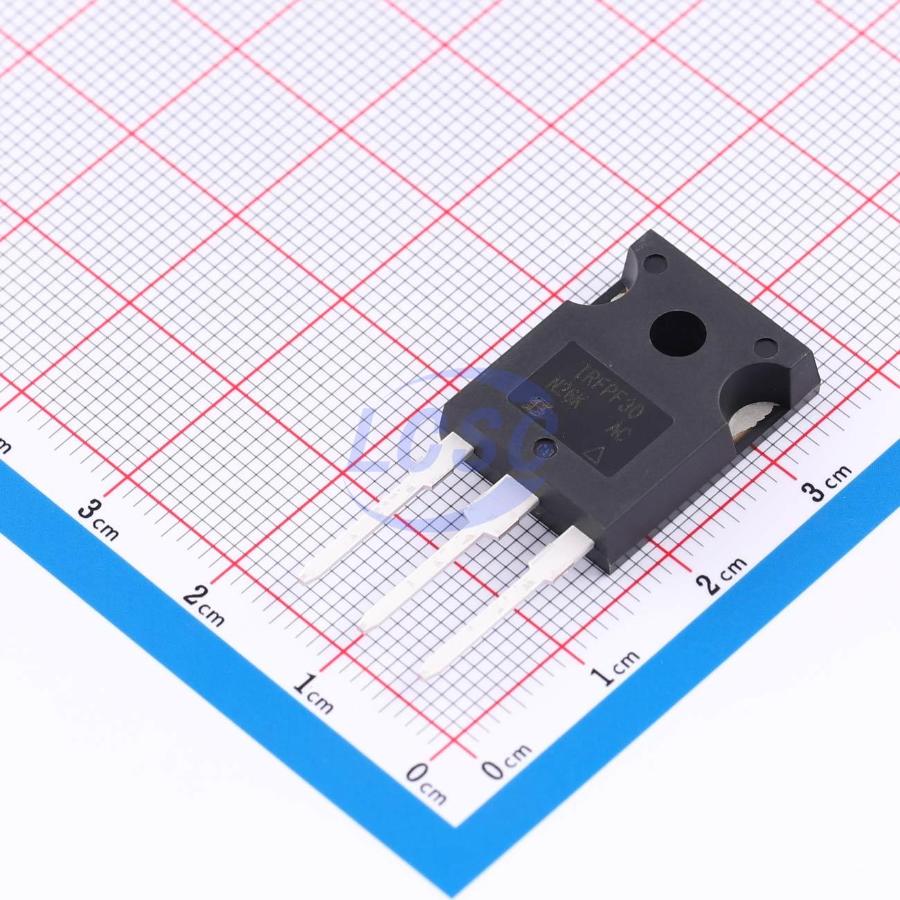

IRFPF30PBF
125W 900V 3.6A 3.7Ω@10V 1 N-channel N-Channel TO-247AC Single FETs, MOSFETs RoHS
TO-247ACROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFPF30PBF
- Store part #
- C3290772
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C3290772
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹898.09 | ₹898.09 |
| 10+ | ₹877.66 | ₹8,776.60 |
| 30+ | ₹863.97 | ₹25,919.10 |
| 100+ | ₹850.29 | ₹85,029.00 |
1 × ₹898.09
₹898.09
excl. GST
₹1,059.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IRFPF30PBF
₹898.09 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 320pF
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 125W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 900V
- Current - Continuous Drain(Id)
- 3.6A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 3.7Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 78nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.575 g
Overview
The 3rd generation power MOSFETs provide designers with the best combination of fast switching, ruggedized device design, low on-resistance, and cost-effectiveness. For commercial-industrial applications requiring higher power where TO-220AB devices are not suitable, the TO-247AC package is the preferred choice. The TO-247AC is similar to the earlier TO-218 package, but superior due to its isolated mounting hole. It also provides greater creepage distance between leads to meet the requirements of most safety regulations.
Key features
- Dynamic dV/dt rated
- Repetitive avalanche rated
- Isolated central mounting hole
- Fast switching
- Easy to parallel
- Simple drive requirement
