VISHAYDatasheet (PDF)

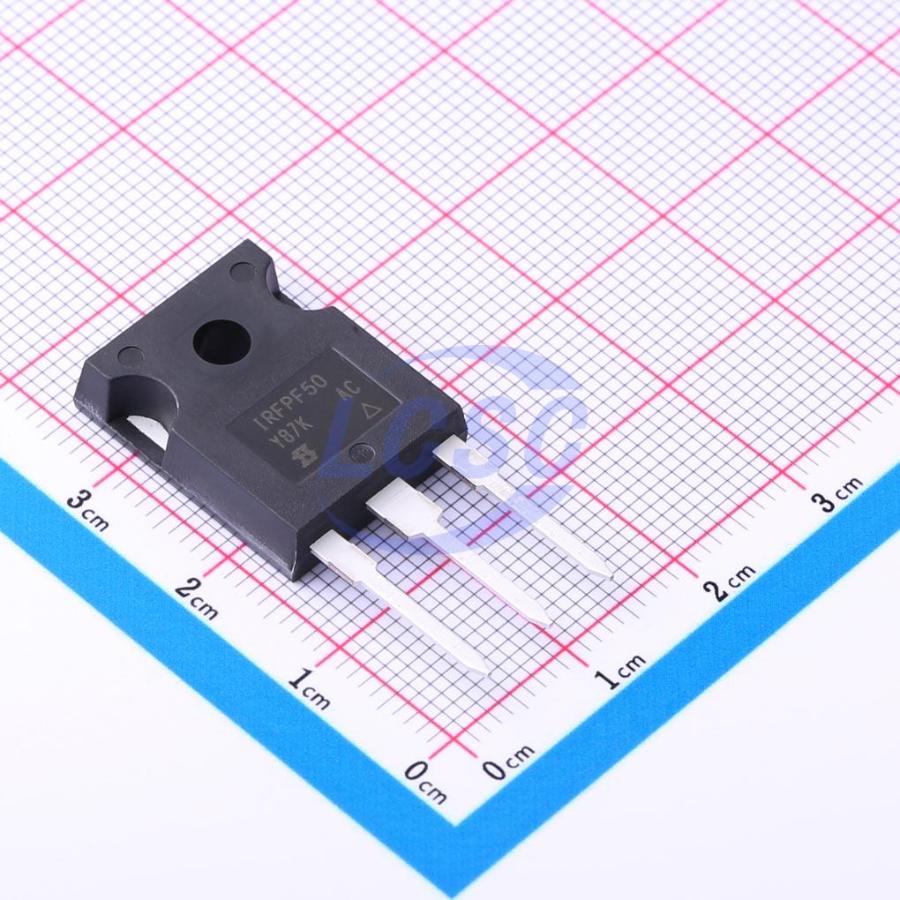

IRFPF50PBF
190W 900V 6.7A 1.6Ω@10V 1 N-channel N-Channel TO-247AC-3 Single FETs, MOSFETs RoHS
TO-247AC-3ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFPF50PBF
- Store part #
- C241860
- Package / case
- TO-247AC-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C241860
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹688.40 | ₹688.40 |
| 10+ | ₹672.32 | ₹6,723.20 |
| 25+ | ₹661.46 | ₹16,536.50 |
| 100+ | ₹650.81 | ₹65,081.00 |
1 × ₹688.40
₹688.40
excl. GST
₹812.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRFPF50PBF
₹688.40 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 270pF
- Ciss-Input Capacitance
- 2.9nF
- Pd - Power Dissipation
- 190W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 900V
- Current - Continuous Drain(Id)
- 6.7A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 1.6Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 200nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.65 g
Overview
The 3rd generation power MOSFETs offer designers an optimum combination of fast switching, rugged device design, low on-resistance, and cost-effectiveness. For commercial-industrial applications with higher power requirements where TO-220AB devices cannot be used, the TO-247AC package is the preferred choice. The TO-247AC is similar to the earlier TO-218 package but offers superior performance due to its isolated mounting hole. It also provides greater creepage distance between leads to satisfy the requirements of most safety regulations.
Key features
- Dynamic dv/dt rated
- Repetitive avalanche rated
- Central isolated mounting hole
- Fast switching
- Easy to parallel
- Simple drive requirements
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| IRFPF50PBF#C2934Infineon · TO-247AC | Infineon | TO-247AC | 19 | ₹555.55 · 19 in stock | View | |
 | IRFPG50PBF#C2936VISHAY · TO-247AC | VISHAY | TO-247AC | 303 | ₹383.18 · 303 in stock | View |
| MS9N150HJC0#C55042316MASPOWER · TO-247 | MASPOWER | TO-247 | 30 | ₹616.60 · 30 in stock | View | |
 | IRFPF50PBF-VB#C50387023VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 3 | ₹434.61 · 3 in stock | View |
 | VBP195R06#C50387050VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹393.74 · 5 in stock | View |
