VISHAYDatasheet (PDF)

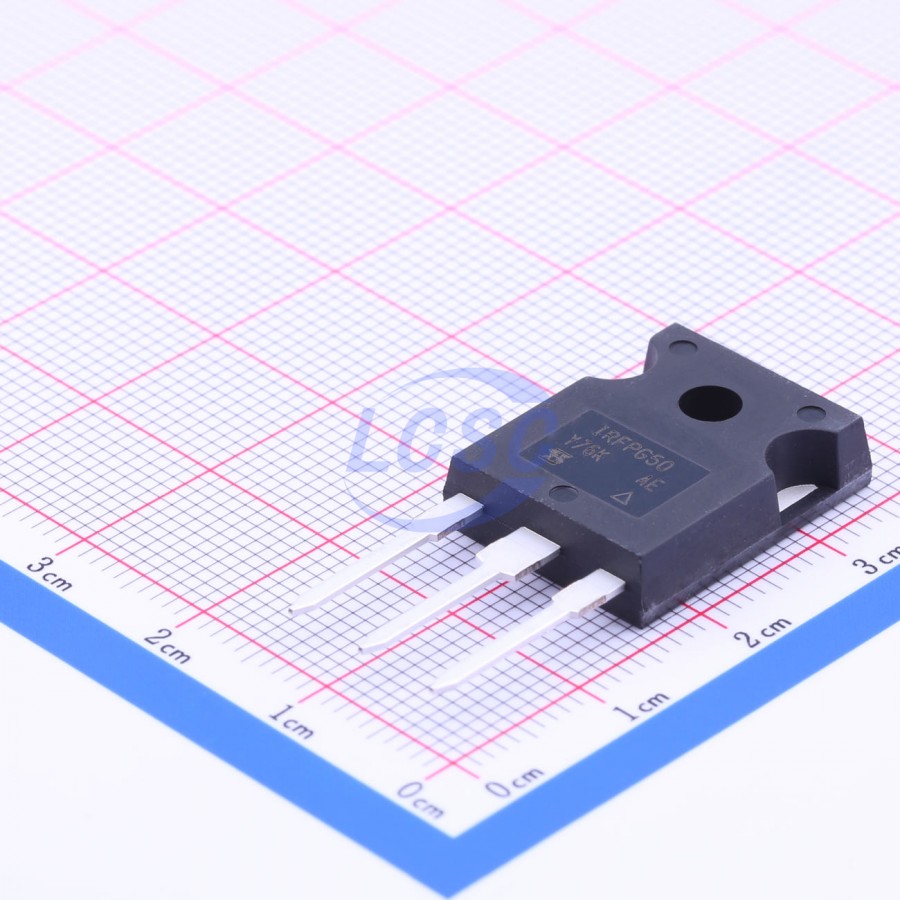

IRFPG50PBF
N-Channel 1kV 6.1A 190W Through Hole TO-247AC
TO-247ACROHS3 CompliantActive
MOSFET N-CH 1kV 6.1A TO-247AC
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFPG50PBF
- Store part #
- C2936
- Package / case
- TO-247AC
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
303 in stock
#C2936
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹383.18 | ₹383.18 |
| 10+ | ₹322.26 | ₹3,222.60 |
| 30+ | ₹284.18 | ₹8,525.40 |
| 100+ | ₹245.01 | ₹24,501.00 |
| 500+ | ₹227.38 | ₹1,13,690.00 |
| 1,000+ | ₹219.78 | ₹2,19,780.00 |
1 × ₹383.18
₹383.18
excl. GST
₹452.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
IRFPG50PBF
₹383.18 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 250pF
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 190W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 1kV
- Current - Continuous Drain(Id)
- 6.1A
- Reverse Transfer Capacitance (Crss)
- 84pF
- RDS(on)
- 2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 190nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.04 g
Overview
Third generation Power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-247AC package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220AB devices. The TO-247AC is similar but superior to the earlier TO-218 package because its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications.
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Isolated Central Mounting Hole
- Fast Switching
- Ease of Paralleling
- Simple Drive Requirements
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRFPF50PBF-VB#C50387023VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 3 | ₹434.61 · 3 in stock | View |
 | VBP195R06#C50387050VBsemi Elec · TO-247AC | VBsemi Elec | TO-247AC | 5 | ₹393.74 · 5 in stock | View |
 | IRFPF50PBF#C241860VISHAY · TO-247AC-3 | VISHAY | TO-247AC-3 | 10 | ₹688.40 · 10 in stock | View |
| IRFPF50PBF#C2934Infineon · TO-247AC | Infineon | TO-247AC | 19 | ₹555.55 · 19 in stock | View | |
| MS9N150HJC0#C55042316MASPOWER · TO-247 | MASPOWER | TO-247 | 30 | ₹616.60 · 30 in stock | View | |
