HXY MOSFETDatasheet (PDF)

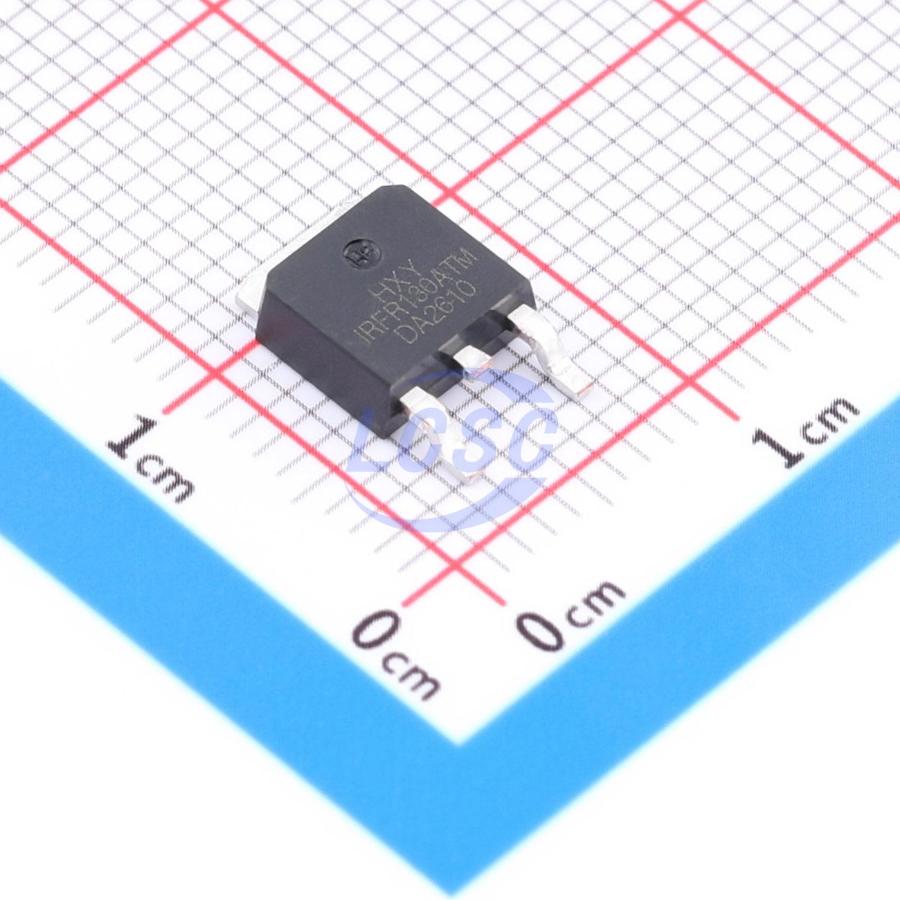

IRFR130ATM-HXY
100V 12A 17W 95mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRFR130ATM-HXY
- Store part #
- C54582603
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C54582603
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.74 | ₹56.74 |
| 10+ | ₹45.35 | ₹453.50 |
| 30+ | ₹40.63 | ₹1,218.90 |
| 100+ | ₹34.61 | ₹3,461.00 |
| 500+ | ₹28.59 | ₹14,295.00 |
| 1,000+ | ₹26.87 | ₹26,870.00 |
1 × ₹56.74
₹56.74
excl. GST
₹66.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR130ATM-HXY
₹56.74 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 25.9pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 196pF
- Pd - Power Dissipation
- 17W
- Reverse Transfer Capacitance (Crss)
- 21.4pF
- RDS(on)
- 95mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.384 g
Overview
IRFR130ATM utilizes advanced SGT MOSFET technology, delivering low on-resistance (RDS(ON)), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability and versatility.
Applications
- Consumer electronics power supplies
- Motor control
- Synchronous rectification
Key features
- Drain-source voltage (VDS) = 100V, drain current (ID) = 12A
- On-resistance (RDS(ON)) < 120mΩ at gate-source voltage (VGS) = 10V
