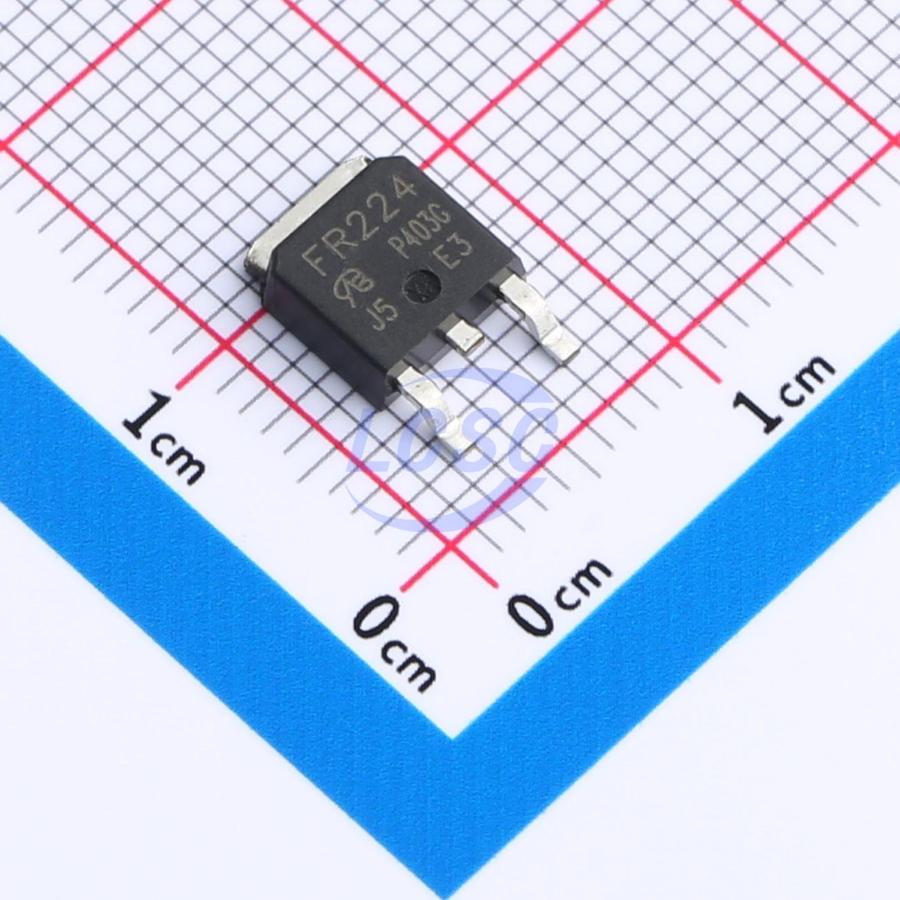

IRFR224TRR-VB
N-Channel 250V 4.5A 45W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 250V 4.5A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFR224TRR-VB
- Store part #
- C20626334
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C20626334
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹131.49 | ₹131.49 |
| 10+ | ₹110.81 | ₹1,108.10 |
| 30+ | ₹100.36 | ₹3,010.80 |
| 100+ | ₹90.14 | ₹9,014.00 |
| 500+ | ₹63.36 | ₹31,680.00 |
| 1,000+ | ₹60.30 | ₹60,300.00 |
1 × ₹131.49
₹131.49
excl. GST
₹155.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR224TRR-VB
₹131.49 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 250V
- Output Capacitance(Coss)
- 77pF
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 260pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 640mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- Available in Tape and Reel
- Fast Switching
- Ease of Paralleling
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD6N25TM-VB#C20417695VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹137.78 · 40 in stock | View |
 | KF6N60D-VB#C18795052VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 39 | ₹125.17 · 39 in stock | View |
 | STD5NM60T4-VB#C19188226VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹156.89 · 50 in stock | View |
 | SPD03N60C3-VB#C19188270VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹118.55 · 5 in stock | View |
 | STD5NK40ZT4-E-VB#C19711188VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 45 | ₹125.17 · 45 in stock | View |
