HXY MOSFETDatasheet (PDF)

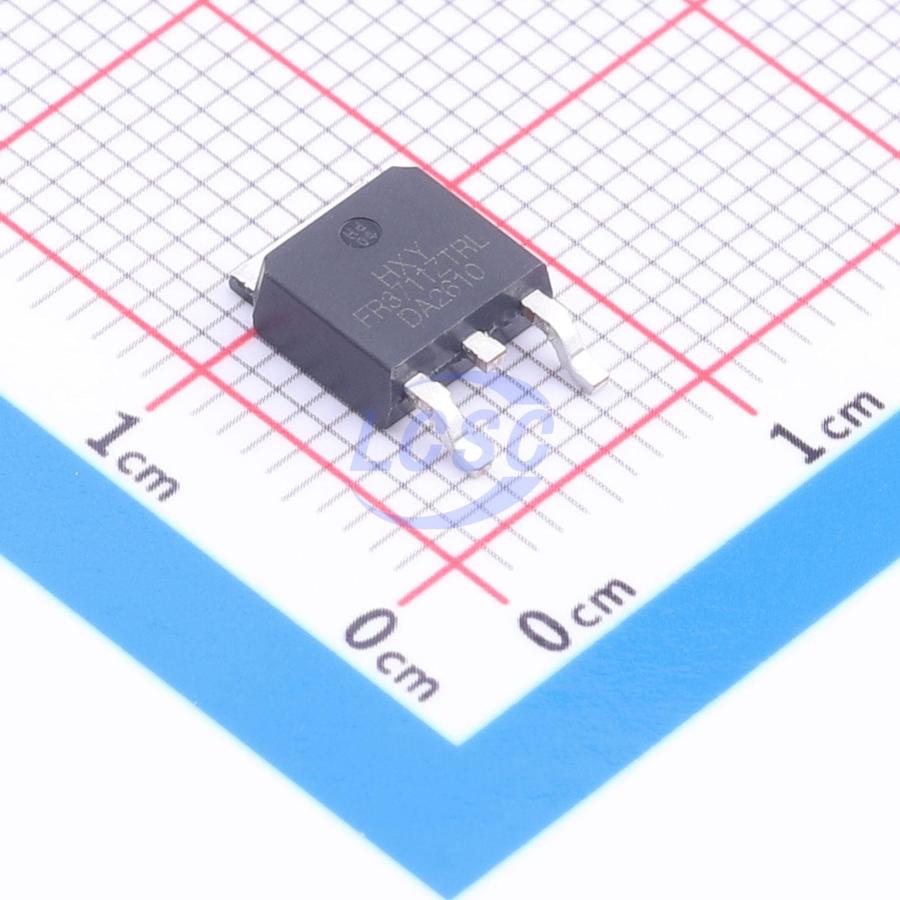

IRFR3711ZTRL-HXY
20V 60A 60W 4.5mΩ@4.5V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRFR3711ZTRL-HXY
- Store part #
- C54582418
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C54582418
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹268.90 | ₹268.90 |
| 10+ | ₹231.31 | ₹2,313.10 |
| 30+ | ₹207.90 | ₹6,237.00 |
| 100+ | ₹183.84 | ₹18,384.00 |
| 500+ | ₹172.89 | ₹86,445.00 |
| 1,000+ | ₹168.17 | ₹1,68,170.00 |
1 × ₹268.90
₹268.90
excl. GST
₹317.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR3711ZTRL-HXY
₹268.90 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 500pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 2nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 4.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@10V
- Gate Threshold Voltage (Vgs(th))
- 750mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
The IRFR3711ZTRL utilizes advanced trench technology to deliver excellent on-state resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications. The package is TO-252-2L.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = 20V, drain current (ID) = 60A
- On-resistance (RDS(ON)) < 6mΩ at gate-source voltage (VGS) = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD306P-HXY#C18198385HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 485 | ₹29.78 · 485 in stock | View |
 | HAM60N0209D#C42401184HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 30 | ₹33.60 · 30 in stock | View |
 | IRFR3711ZTRRPBF-HXY#C54582417HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 30 | ₹13.67 · 30 in stock | View |
 | IRFR3706-HXY#C54582419HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹269.76 · 50 in stock | View |
 | IRFR3711ZTRPBF-HXY#C54582420HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 47 | ₹77.59 · 47 in stock | View |
