HXY MOSFETDatasheet (PDF)

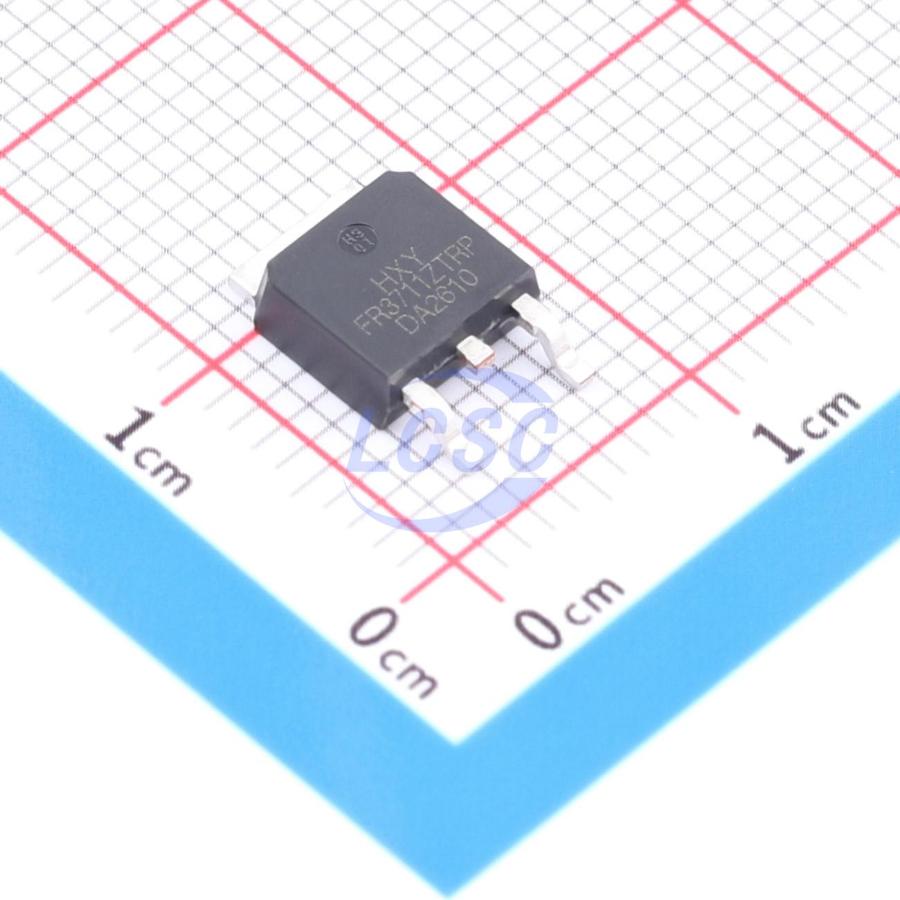

IRFR3711ZTRPBF-HXY
20V 60A 60W 4.5mΩ@4.5V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- IRFR3711ZTRPBF-HXY
- Store part #
- C54582420
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C54582420
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.59 | ₹77.59 |
| 10+ | ₹63.85 | ₹638.50 |
| 30+ | ₹56.74 | ₹1,702.20 |
| 100+ | ₹49.88 | ₹4,988.00 |
| 500+ | ₹40.84 | ₹20,420.00 |
| 1,000+ | ₹38.70 | ₹38,700.00 |
1 × ₹77.59
₹77.59
excl. GST
₹91.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRFR3711ZTRPBF-HXY
₹77.59 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 500pF
- Current - Continuous Drain(Id)
- 60A
- Ciss-Input Capacitance
- 2nF
- Pd - Power Dissipation
- 60W
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 4.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC@10V
- Gate Threshold Voltage (Vgs(th))
- 750mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
IRFR3711ZTRPBF utilizes advanced trench technology to deliver excellent on-state resistance RDS(ON), low gate charge, and operation down to 4.5V gate voltage. The device is suitable for battery protection or other switching applications. Package: TO-252-2L.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- VDS = 20V, ID = 60A
- RDS(ON) < 6mΩ (at VGS = 4.5V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD306P-HXY#C18198385HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 485 | ₹29.78 · 485 in stock | View |
 | HAM60N0209D#C42401184HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 30 | ₹33.60 · 30 in stock | View |
 | IRFR3711ZTRRPBF-HXY#C54582417HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 30 | ₹13.67 · 30 in stock | View |
 | IRFR3711ZTRL-HXY#C54582418HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹268.90 · 50 in stock | View |
 | IRFR3706-HXY#C54582419HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹269.76 · 50 in stock | View |
