VISHAYDatasheet (PDF)

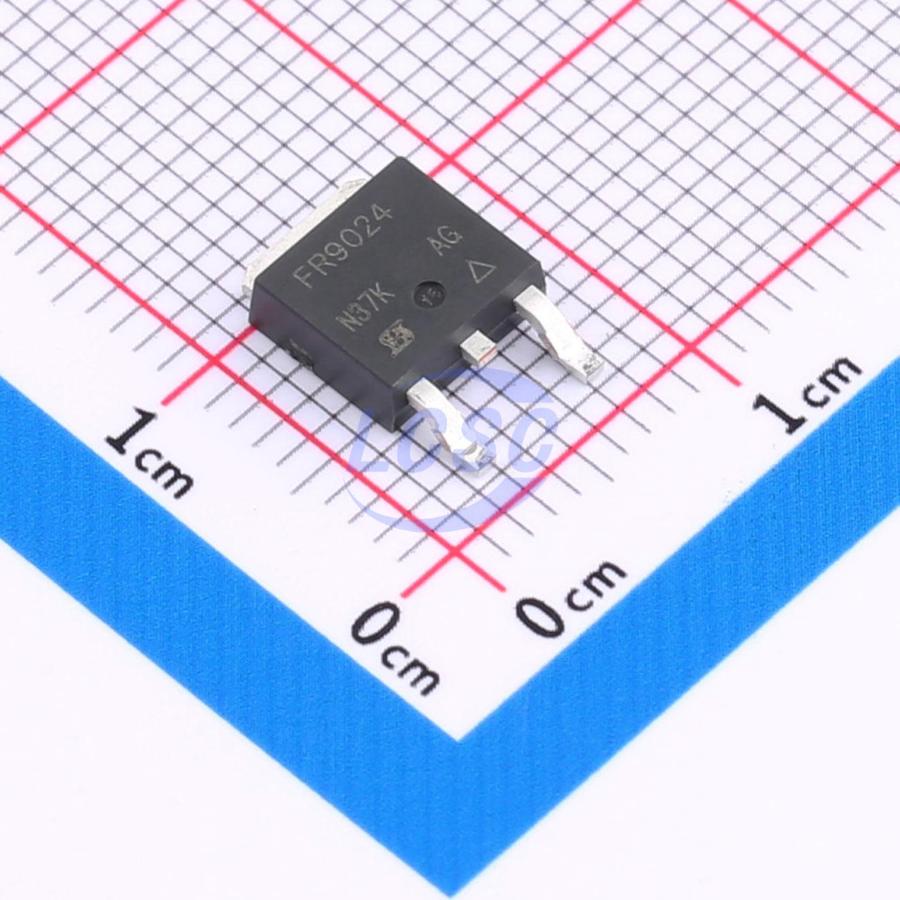

IRFR9024TRPBF
P-Channel 60V 8.8A 2.5W Surface Mount DPAK(TO-252)
DPAK(TO-252)ROHS3 CompliantActive
MOSFET P-CH 60V 8.8A DPAK(TO-252)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFR9024TRPBF
- Store part #
- C500644
- Package / case
- DPAK(TO-252)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,394 in stock
#C500644
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.25 | ₹82.25 |
| 10+ | ₹66.81 | ₹668.10 |
| 30+ | ₹59.19 | ₹1,775.70 |
| 100+ | ₹51.57 | ₹5,157.00 |
| 500+ | ₹41.57 | ₹20,785.00 |
| 1,000+ | ₹39.17 | ₹39,170.00 |
1 × ₹82.25
₹82.25
excl. GST
₹97.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IRFR9024TRPBF
₹82.25 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 360pF
- Ciss-Input Capacitance
- 570pF
- Pd - Power Dissipation
- 2.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 8.8A
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 280mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 19nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.544 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effictiveness. The DPAK is designed for surface mounting using vapor phase, infrared, or wave soldering techniques. The straight lead version (IRFU, SiHFU series) is for through-hole mounting applications. Power dissipation levels up to 1.5 W are possible in typical surface mount applications.
Key features
- Dynamic dV/dt Rating
- Repetitive Avalanche Rated
- RoHS COMPLIANT
- Surface Mount (IRFR9024, SiHFR9024)
- Straight Lead (IRFU9024, SiHFU9024)
- HALOEEN
- Available in Tape and Reel
- P-Channel
- Fast Switching
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQD11P06TM#C719783onsemi · DPAK | onsemi | DPAK | 1,971 | ₹94.93 · 1,971 in stock | View |
 | TPIRFR9024TRPBF#C5246438TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 1,025 | ₹49.69 · 1,025 in stock | View |
 | KIRFR9024NTRTBF#C2939002KUU · TO-252 | KUU | TO-252 | 70 | ₹41.85 · 70 in stock | View |
 | SPD15P10PLGBTMA1#C3289113Infineon · TO-252 | Infineon | TO-252 | 95 | ₹135.20 · 95 in stock | View |
 | 2SJ598-Z-E1-VB#C692978VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 2 | ₹94.95 · 2 in stock | View |
