TECH PUBLICDatasheet (PDF)

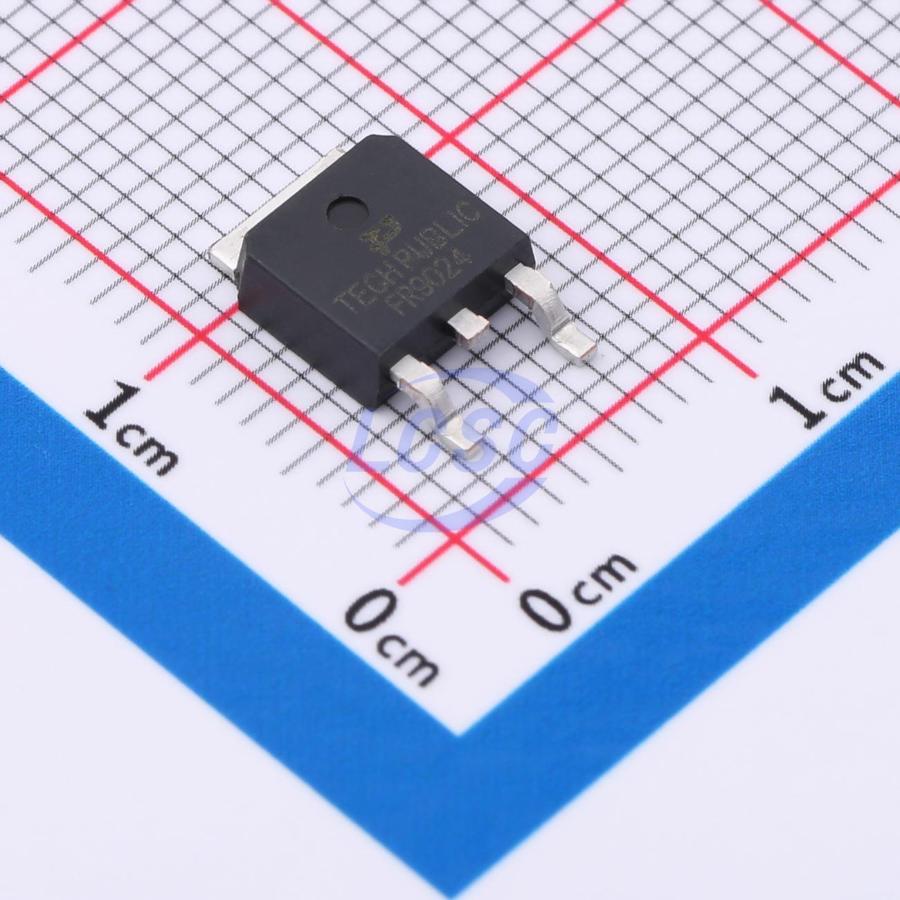

TPIRFR9024TRPBF
60V 13A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET 60V 13A TO-252
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPIRFR9024TRPBF
- Store part #
- C5246438
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,025 in stock
#C5246438
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.69 | ₹248.45 |
| 50+ | ₹40.06 | ₹2,003.00 |
| 150+ | ₹35.93 | ₹5,389.50 |
| 500+ | ₹28.10 | ₹14,050.00 |
| 2,500+ | ₹25.81 | ₹64,525.00 |
| 5,000+ | ₹24.44 | ₹1,22,200.00 |
5 × ₹49.69
₹248.45
excl. GST
₹293.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPIRFR9024TRPBF
₹248.45 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 90.6pF
- Ciss-Input Capacitance
- 1.6307nF
- Pd - Power Dissipation
- 60W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 13A
- Reverse Transfer Capacitance (Crss)
- 77.3pF
- RDS(on)
- 110mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 37.6nC@30V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.46 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable Electronics
- Logic Level Shift
Key features
- VDS = -60V, IO = -13A
- RDs(on) 100mΩ @ Vgs = -10V (Typ)
- RDS(ON) 110mΩ @ VGS = -4.5V (Typ)
