TECH PUBLICDatasheet (PDF)

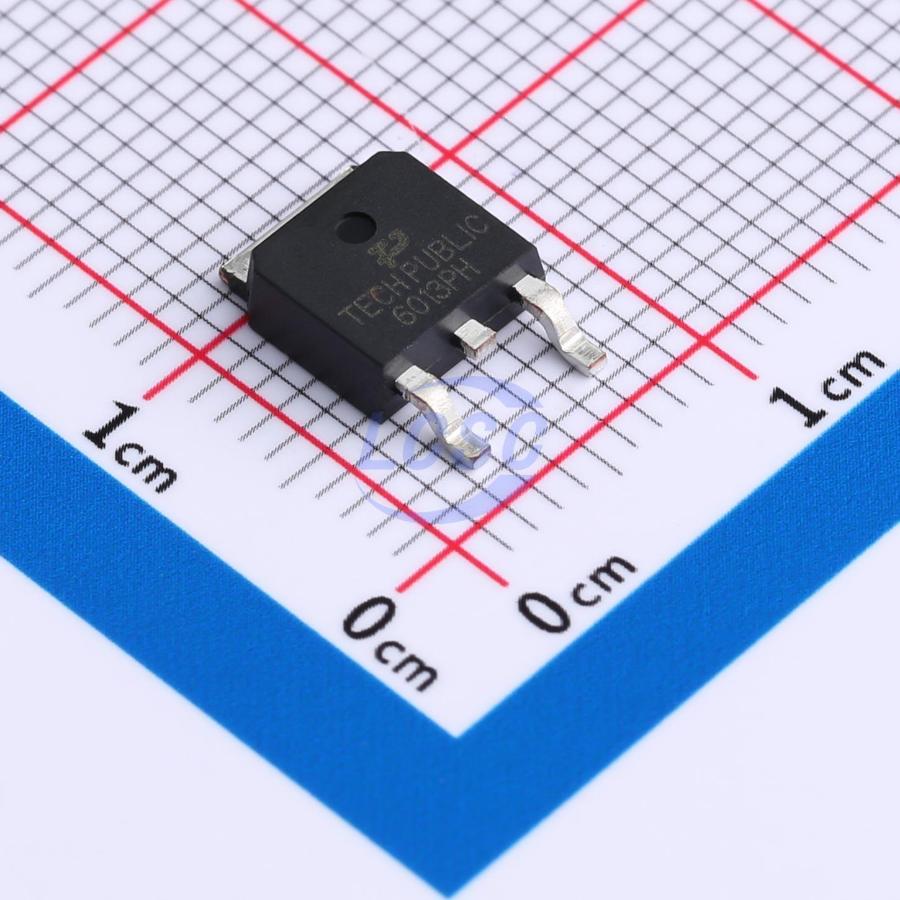

TPFQD11P06TM
60V 13A 60W Surface Mount TO-252
TO-252RoHSActive
MOSFET 60V 13A TO-252
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TPFQD11P06TM
- Store part #
- C5246434
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
914 in stock
#C5246434
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.66 | ₹63.66 |
| 10+ | ₹50.41 | ₹504.10 |
| 30+ | ₹44.76 | ₹1,342.80 |
| 100+ | ₹37.81 | ₹3,781.00 |
| 500+ | ₹32.16 | ₹16,080.00 |
| 1,000+ | ₹30.43 | ₹30,430.00 |
1 × ₹63.66
₹63.66
excl. GST
₹75.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPFQD11P06TM
₹63.66 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 90.6pF
- Ciss-Input Capacitance
- 1.6307nF
- Pd - Power Dissipation
- 60W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 13A
- Reverse Transfer Capacitance (Crss)
- 77.3pF
- RDS(on)
- 110mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 37.6nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.85 g
Overview
This next-generation MOSFET is designed to minimize drain-to-source on-resistance while maintaining excellent switching performance. The device is ideal for power management and load switching applications.
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Ultra Small Portable Electronics
- Logic Level Shift
Key features
- VDS = -60V, IO = -13A
- RDs(on) 100mΩ @ Vgs = -10v (Typ)
- RDS(ON) 110mΩ @ VGS = -4.5V (Typ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM6013PHK3-1#C5246428TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 300 | ₹31.51 · 300 in stock | View |
 | TPM6013PHK3-2#C5246429TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 277 | ₹31.51 · 277 in stock | View |
 | TPIRFR9024TRPBF#C5246438TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 1,025 | ₹49.69 · 1,025 in stock | View |
 | IRFR9024N#C5246439TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 245 | ₹44.55 · 245 in stock | View |
 | TPM6013PHK3-3#C5246430TECH PUBLIC · TO-252 | TECH PUBLIC | TO-252 | 278 | ₹31.51 · 278 in stock | View |
