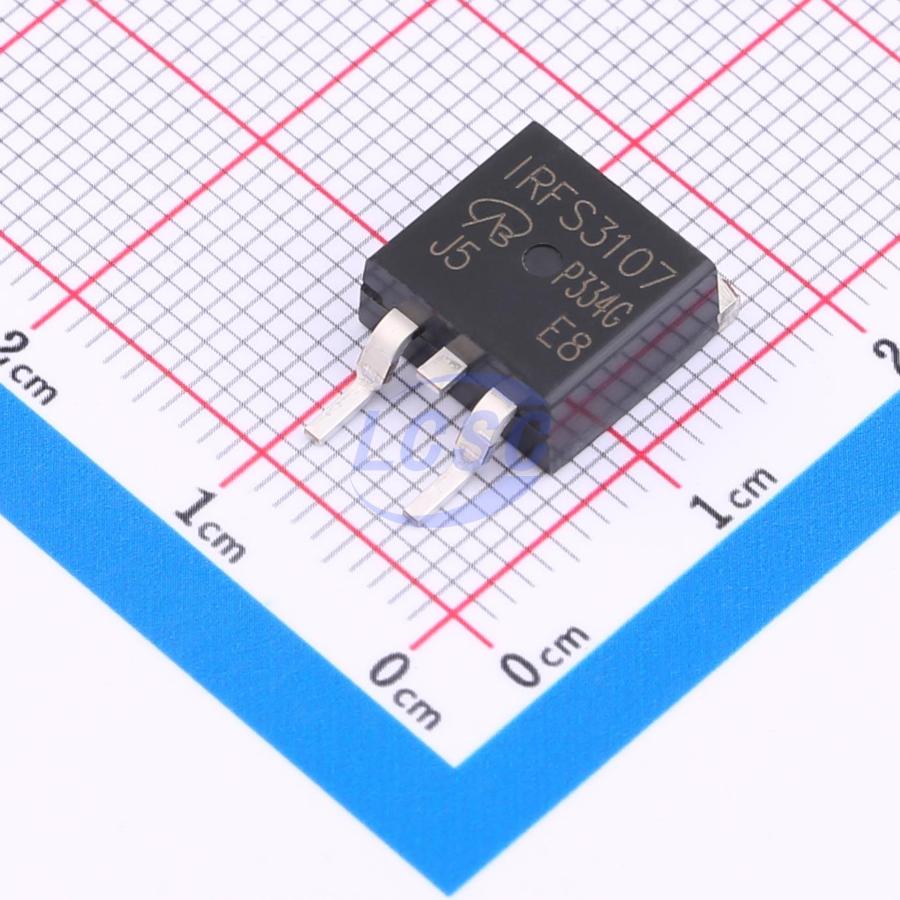

IRFS3107PBF-VB
N-Channel 80V 215A 375W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 80V 215A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRFS3107PBF-VB
- Store part #
- C20417497
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C20417497
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.99 | ₹208.99 |
| 10+ | ₹174.38 | ₹1,743.80 |
| 30+ | ₹155.44 | ₹4,663.20 |
| 100+ | ₹133.89 | ₹13,389.00 |
| 500+ | ₹124.31 | ₹62,155.00 |
| 800+ | ₹120.17 | ₹96,136.00 |
1 × ₹208.99
₹208.99
excl. GST
₹246.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IRFS3107PBF-VB
₹208.99 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 3.25nF
- Current - Continuous Drain(Id)
- 215A
- Ciss-Input Capacitance
- 7.91nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 348pF
- RDS(on)
- 9.5mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 94nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.4 g
Overview
Applications
- Power Supply
- Secondary Synchronous Rectification
- DC/DC Converter
- Power Tools
- Motor Drive Switch
- DC/AC Inverter
- Battery Management
Key features
- Trench power MOSFET
- Maximum junction temperature 175 °C
- Ultra-low gate-drain charge (Qgd) reduces power loss during Miller plateau voltage (Vplateau) crossing
- 100% tested for gate resistance (Rg) and unclamped inductive switching (UIS)
- RoHS compliant
- Halogen-free
