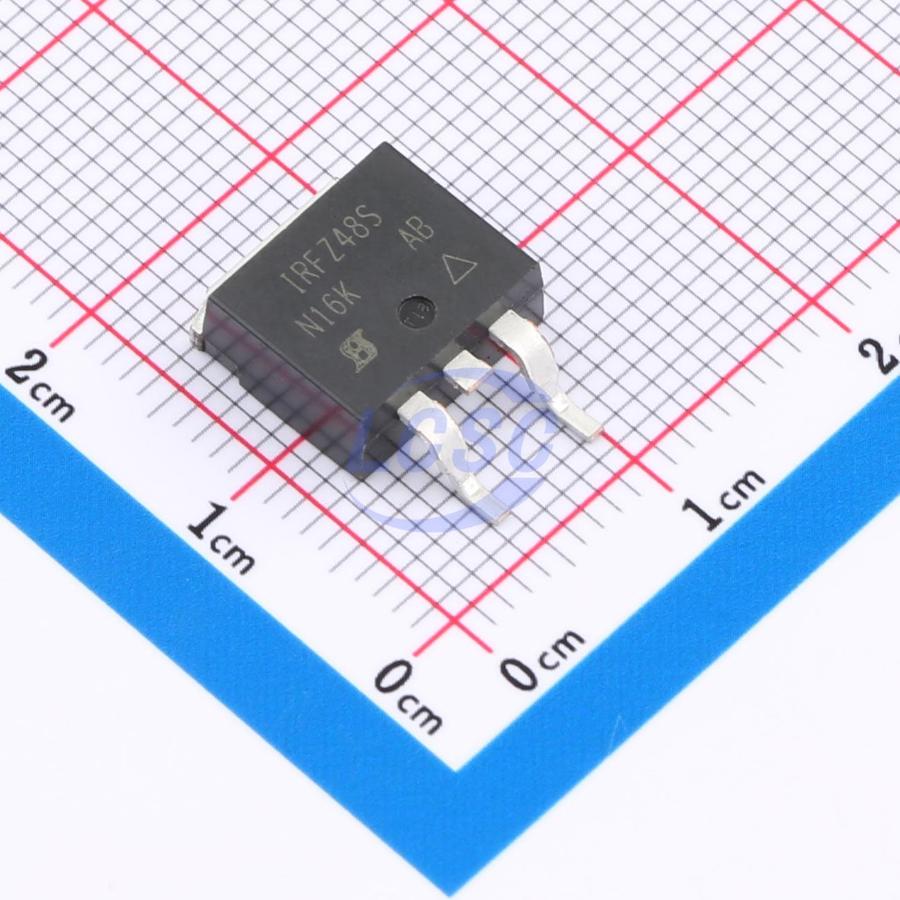

IRFZ48SPBF
N-Channel 60V 50A 190W Surface Mount D2PAK(TO-263)
D2PAK(TO-263)ROHS3 CompliantActive
MOSFET N-CH 60V 50A D2PAK(TO-263)
- Manufacturer
- VISHAY
- Manufacturer part #
- IRFZ48SPBF
- Store part #
- C3288217
- Package / case
- D2PAK(TO-263)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C3288217
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹269.67 | ₹269.67 |
| 10+ | ₹263.37 | ₹2,633.70 |
| 50+ | ₹259.24 | ₹12,962.00 |
| 100+ | ₹255.11 | ₹25,511.00 |
1 × ₹269.67
₹269.67
excl. GST
₹318.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRFZ48SPBF
₹269.67 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.3nF
- Current - Continuous Drain(Id)
- 50A
- Ciss-Input Capacitance
- 2.4nF
- Pd - Power Dissipation
- 190W
- Reverse Transfer Capacitance (Crss)
- 190pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Third generation power MOSFETs utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D²PAK (TO-263) is a surface-mount power package capable of accommodating die sizes up to HEX-4. It provides the highest power capability and the lowest possible on-resistance in any existing surface-mount package. The D2PAK (TO-263) is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2 W in a typical surface-mount application. The through-hole version (SiHFZ48L) is available for low-profile applications.
Applications
- RF power amplifier for base station and multi-carrier applications in the 1805 MHz to 1880 MHz frequency range
Key features
- Advanced process technology
- Surface-mount (IRFZ48S, SiHFZ48S)
- Low-profile through-hole (SiHFZ48L)
- 175 °C operating temperature
- Fast switching
- Material categorization: for definitions of compliance please see doc?99912
