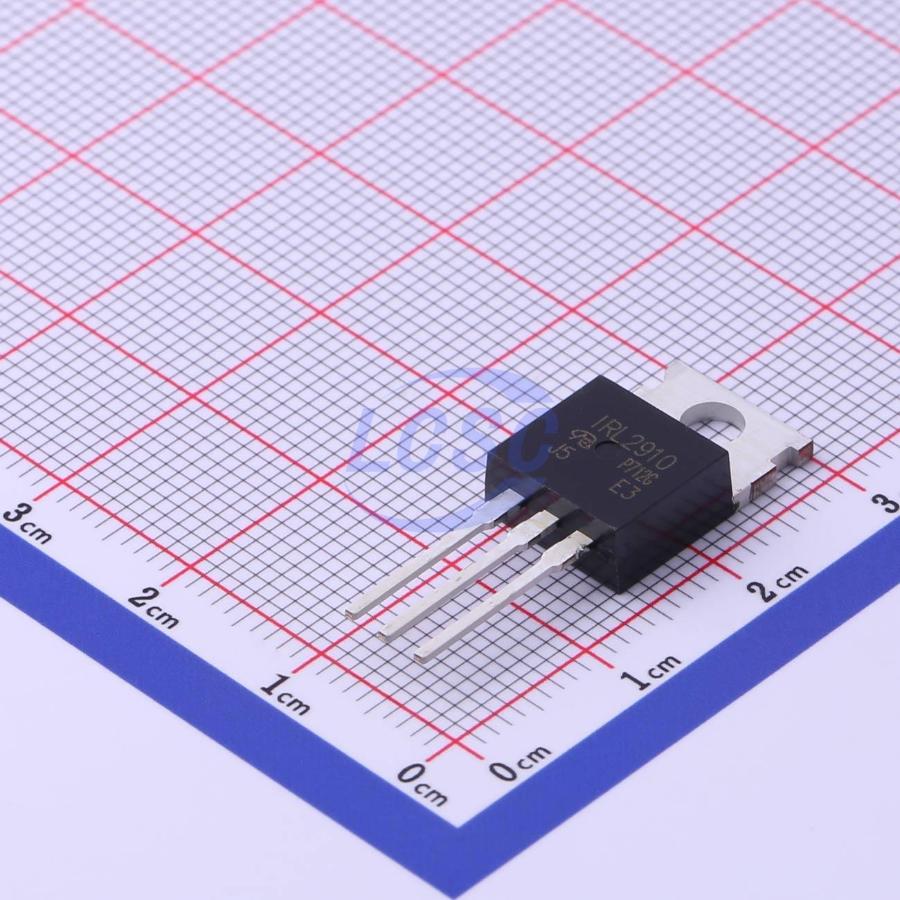

IRL2910PBF-VB
N-Channel 100V 70A 3.35W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 100V 70A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IRL2910PBF-VB
- Store part #
- C725094
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C725094
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹165.45 | ₹165.45 |
| 10+ | ₹140.63 | ₹1,406.30 |
| 50+ | ₹95.79 | ₹4,789.50 |
| 100+ | ₹83.39 | ₹8,339.00 |
| 500+ | ₹75.98 | ₹37,990.00 |
| 1,000+ | ₹72.28 | ₹72,280.00 |
1 × ₹165.45
₹165.45
excl. GST
₹195.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IRL2910PBF-VB
₹165.45 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 1.8nF
- Pd - Power Dissipation
- 3.35W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 17mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 90nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4 g
Overview
Applications
- Isolated DC/DC Converters
- N-Channel MOSFET
Key features
- TrenchFET Power MOSFET
- 175°C Junction Temperature
- Low Thermal Resistance Package
- 100 % Rg Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UTT30N10G-TA3-T-VB#C4355131VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹128.19 · 50 in stock | View |
 | P2610BT-VB#C2680759VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 56 | ₹122.17 · 56 in stock | View |
 | NTP6412ANG-VB#C29779107VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | AOT414-VB#C29779254VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
 | IPP180N10N3G-VB#C29779672VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
