TECH PUBLICDatasheet (PDF)

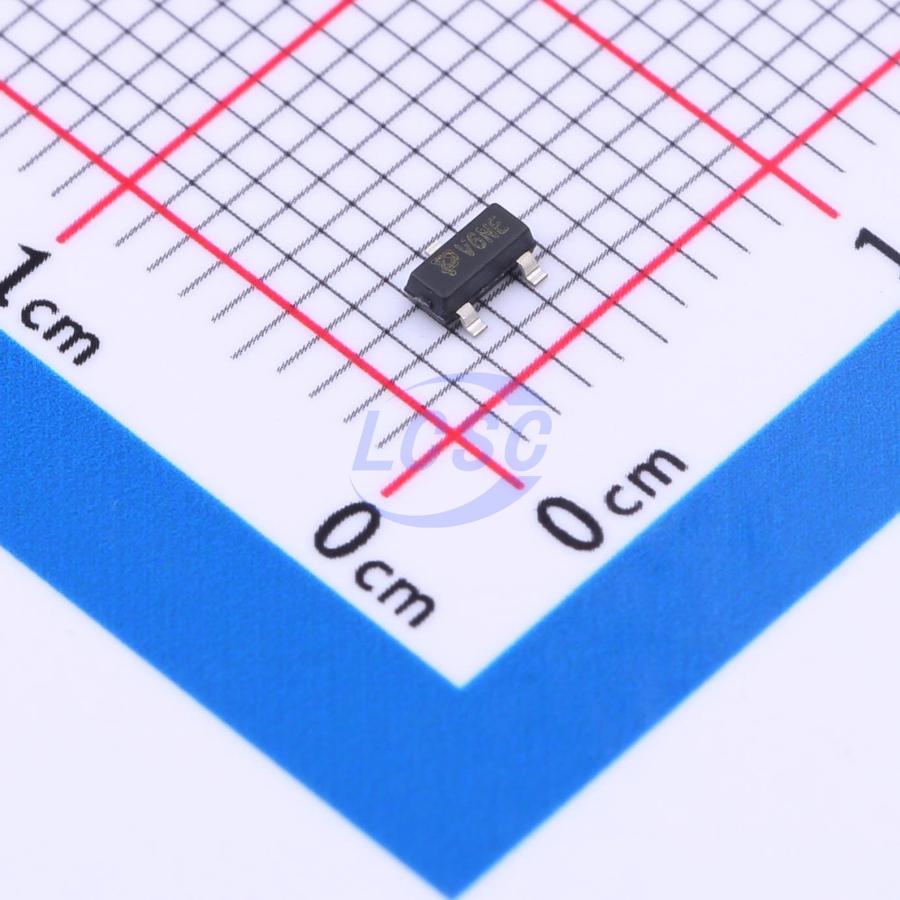

IRLML6246TRPBF
20V 6A 1.25W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- IRLML6246TRPBF
- Store part #
- C5123959
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,100 in stock
#C5123959
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.69 | ₹106.90 |
| 100+ | ₹8.63 | ₹863.00 |
| 300+ | ₹7.59 | ₹2,277.00 |
| 3,000+ | ₹5.99 | ₹17,970.00 |
| 6,000+ | ₹5.37 | ₹32,220.00 |
| 9,000+ | ₹5.07 | ₹45,630.00 |
10 × ₹10.69
₹106.90
excl. GST
₹126.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IRLML6246TRPBF
₹106.90 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 574pF
- Pd - Power Dissipation
- 1.25W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 23mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.7nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Uitra Small Portable
- Logic Level Shift
Key features
- VDS = 20V, ID = 6A, RDs(ON) < 23mΩ @ VGS = 2.5V
- RDS(ON) < 35mΩ @ VGS = 4.5V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ZXMN2F30FHTA#C5123966TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,990 | ₹9.92 · 2,990 in stock | View |
 | TPM20V6NLS3-2#C5123939TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,870 | ₹14.67 · 2,870 in stock | View |
 | TPM20V6NLS3-1#C5123963TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,045 | ₹14.95 · 2,045 in stock | View |
 | AP2306GN#C5123962TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,900 | ₹10.05 · 2,900 in stock | View |
 | DMN2050L#C5123964TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,660 | ₹9.50 · 1,660 in stock | View |
