TECH PUBLICDatasheet (PDF)

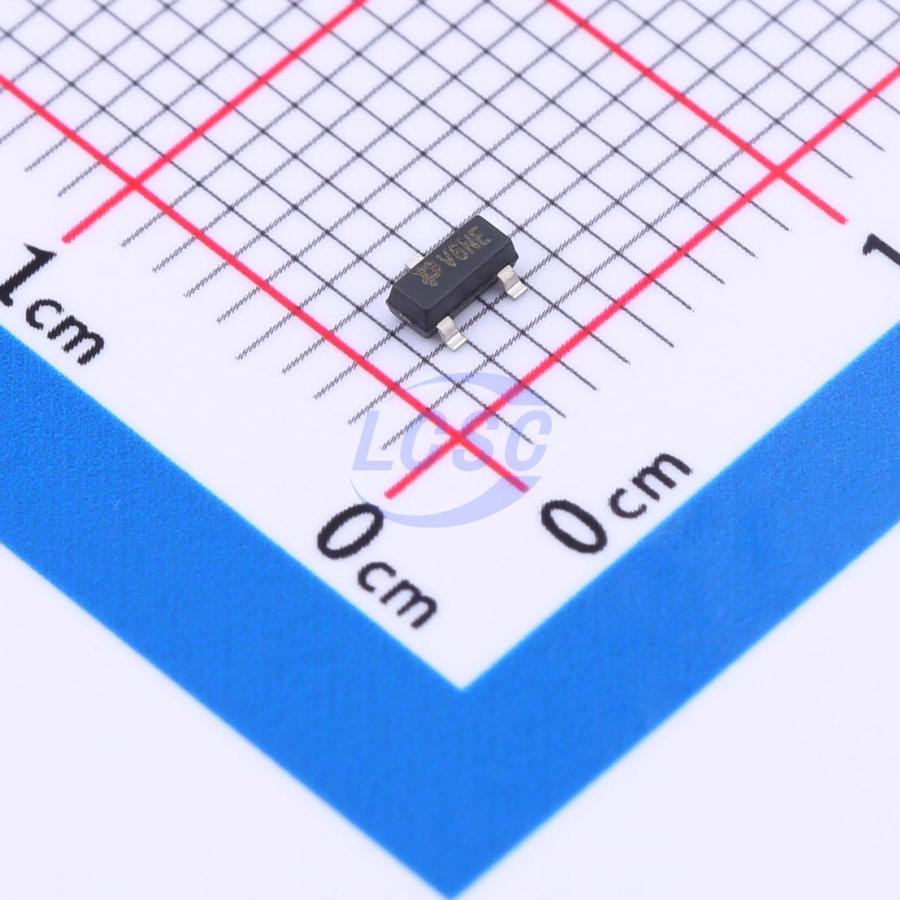

ZXMN2F30FHTA
20V 6A 1.25W Surface Mount SOT-23
SOT-23RoHSActive
MOSFET 20V 6A SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- ZXMN2F30FHTA
- Store part #
- C5123966
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C5123966
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.92 | ₹99.20 |
| 100+ | ₹7.86 | ₹786.00 |
| 300+ | ₹6.83 | ₹2,049.00 |
| 3,000+ | ₹5.79 | ₹17,370.00 |
| 6,000+ | ₹5.17 | ₹31,020.00 |
| 9,000+ | ₹4.86 | ₹43,740.00 |
10 × ₹9.92
₹99.20
excl. GST
₹117.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ZXMN2F30FHTA
₹99.20 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 70pF
- Ciss-Input Capacitance
- 574pF
- Pd - Power Dissipation
- 1.25W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 23mΩ@2.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 7.7nC@4.5V
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Load/Power Switching
- Interfacing Switching
- Battery Management for Uitra Small Portable
- Logic Level Shift
Key features
- VDS = 20V, ID = 6A
- RDs(ON) < 23mΩ @ VGS = 2.5V
- RDS(ON) < 35mΩ @ VGS = 4.5V
