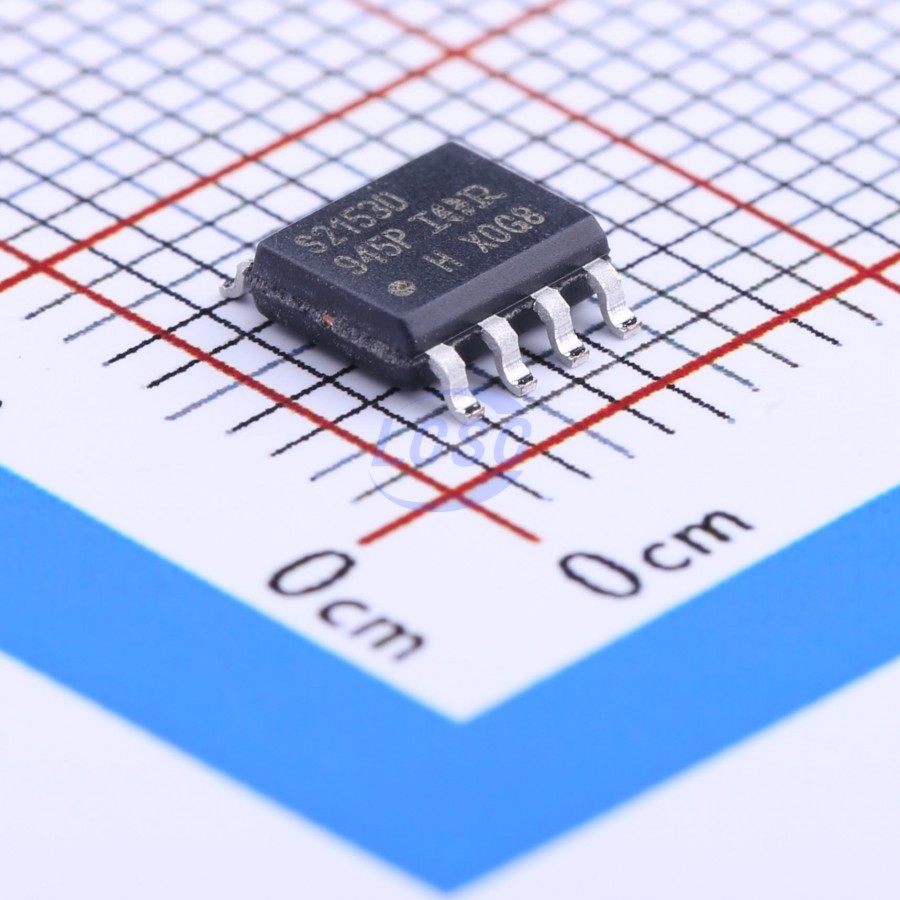

IRS2153DSTRPBF
8V~15.4V 260mA 180mA SOIC-8 Gate Drivers RoHS
SELF-OSCILLATING HALF-BRIDGE DRIVER IC
- Manufacturer
- Infineon
- Manufacturer part #
- IRS2153DSTRPBF
- Store part #
- C2987
- Package / case
- SOIC-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,609 in stock
#C2987
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹159.69 | ₹159.69 |
| 10+ | ₹133.61 | ₹1,336.10 |
| 30+ | ₹119.28 | ₹3,578.40 |
| 100+ | ₹103.21 | ₹10,321.00 |
| 500+ | ₹96.04 | ₹48,020.00 |
| 1,000+ | ₹92.77 | ₹92,770.00 |
1 × ₹159.69
₹159.69
excl. GST
₹188.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS2153DSTRPBF
₹159.69 for 1 + GST
Specifications
- Quiescent Current
- 800uA
- Voltage - Supply
- 8V~15.4V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 260mA
- Rise Time
- 120ns
- Fall Time
- 50ns
- Features
- Enable shutdown;Dead-time control;Interleaved conduction protection;Built-in bootstrap diode
- Current - Output High(IOH)
- 180mA
- Load Type
- MOSFET
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.286 g
Overview
The IRS2153(1)D is based on the popular IR2153 selfoscillating half-bridge gate driver IC using a more advanced silicon platform, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. HVIC and latch immune CMOS technologies enable rugged monolithic construction. The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. Noise immunity is achieved with low di/dt peak of the gate drivers.
Key features
- Integrated 600 V half-bridge gate driver
- CT, RT programmable oscillator
- 15.4 V Zener clamp on VCC
- Micropower startup
- Non-latched shutdown on CT pin (1/6th VCC)
- Internal bootstrap FET
- Excellent latch immunity on all inputs and outputs
- +/- 50 V/ns dV/dt immunity
- ESD protection on all pins
- 8-lead SOIC or PDIP package
- Internal deadtime
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EG2153#C2987446EG Micro · SOP-8 | EG Micro | SOP-8 | 1,910 | ₹47.43 · 1,910 in stock | View |
 | UCC27200QDDARQ1#C2867262TI · SO-8 | TI | SO-8 | 10 | ₹607.14 · 10 in stock | View |
 | NCP1393BDR2G#C380792onsemi · SOIC-8 | onsemi | SOIC-8 | 2,543 | ₹82.15 · 2,543 in stock | View |
 | UCC27201ADDA#C1549467TI · SO-8 | TI | SO-8 | 1 | ₹126.93 · 1 in stock | View |
 | UCC27201AQDDARQ1#C2869408TI · SO-8 | TI | SO-8 | 47 | ₹240.96 · 47 in stock | View |
