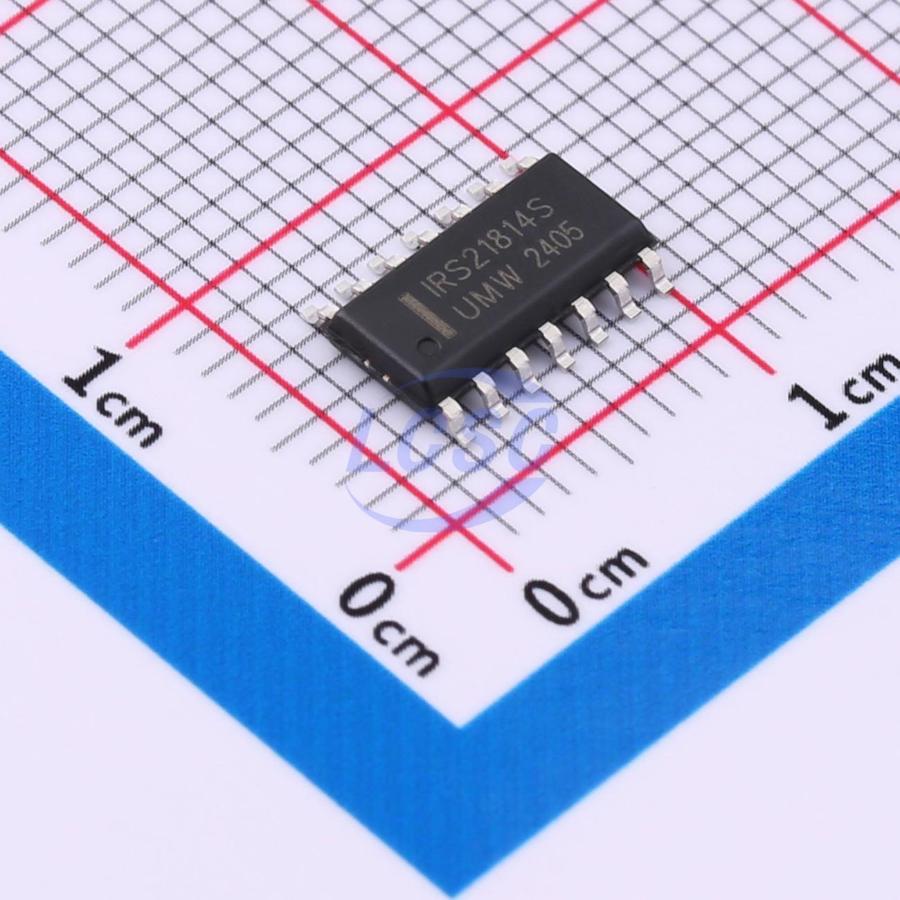

IRS21814STR(UMW)
10V~20V 4A 4A SOP-14 Gate Drivers RoHS
700V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS21814STR(UMW)
- Store part #
- C20623187
- Package / case
- SOP-14
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,758 in stock
#C20623187
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.56 | ₹57.56 |
| 10+ | ₹51.33 | ₹513.30 |
| 30+ | ₹48.12 | ₹1,443.60 |
| 100+ | ₹44.89 | ₹4,489.00 |
| 500+ | ₹42.96 | ₹21,480.00 |
| 1,000+ | ₹41.89 | ₹41,890.00 |
1 × ₹57.56
₹57.56
excl. GST
₹67.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS21814STR(UMW)
₹57.56 for 1 + GST
Specifications
- Low Level Delay Time
- 130ns
- High Level Delay Time
- 130ns
- Quiescent Current
- 150uA
- Voltage - Supply
- 10V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 40ns
- Fall Time
- 20ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.283 g
Overview
The IRS21814STR is a high voltage, high speed power MOSFET drivers with dependent high and low- side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross- conduction. The floating channel can be used to drive an N- channel power MOSFET in the high- side configuration which operates up to 700 V.
Applications
- Motor Control
- Air Conditioners/ Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +700 V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50 V/nsec
- Allowable negative Vs capability: - 9V
- Gate drive supply range from 10V to 20V
- Undervoltage lockout for both channels
- UVLO forward 8.9V
- UVLO reverse 8.2V
- Turn- on/Turn- off propagation delay
- Ton/Toff = 130ns/130ns
- Matched propagation delay for both channels
- Typically output Source/Sink current capability: 4A/4A
