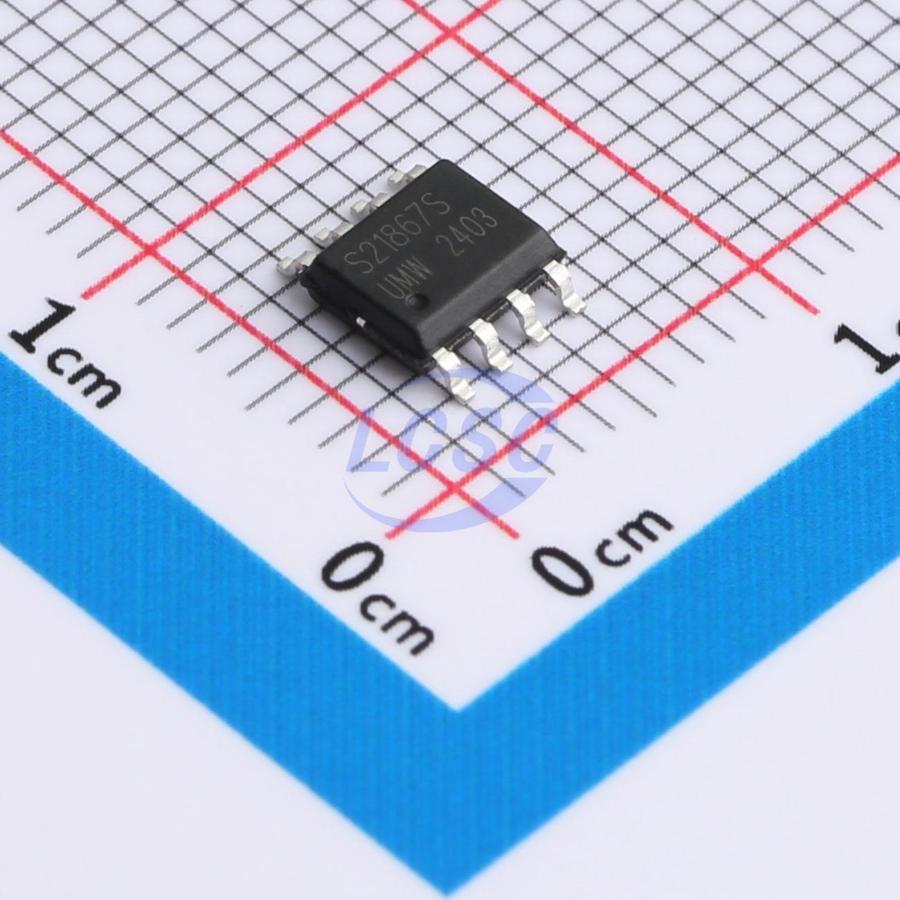

IRS21867STR(UMW)
6.8V~20V 4A 4A SOP-8 Gate Drivers RoHS
700V Half Bridge MOSFET/IGBT Gate Driver
- Manufacturer
- UMW
- Manufacturer part #
- IRS21867STR(UMW)
- Store part #
- C20623204
- Package / case
- SOP-8
- Category
- Gate Drivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,013 in stock
#C20623204
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.74 | ₹82.74 |
| 10+ | ₹66.20 | ₹662.00 |
| 30+ | ₹57.82 | ₹1,734.60 |
| 100+ | ₹49.65 | ₹4,965.00 |
| 500+ | ₹44.70 | ₹22,350.00 |
| 1,000+ | ₹42.12 | ₹42,120.00 |
1 × ₹82.74
₹82.74
excl. GST
₹97.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IRS21867STR(UMW)
₹82.74 for 1 + GST
Specifications
- Low Level Delay Time
- 150ns
- High Level Delay Time
- 150ns
- Quiescent Current
- 100uA
- Voltage - Supply
- 6.8V~20V
- Operating Temperature
- -40℃~+125℃
- Driven Configuration
- Half-Bridge
- Current - Output Low(IOL)
- 4A
- Rise Time
- 10ns
- Fall Time
- 6ns
- Features
- Interleaved conduction protection
- Current - Output High(IOH)
- 4A
- Load Type
- MOSFET;IGBT
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.212 g
Overview
The IRS21867S is a high voltage, high speed power MOSFET drivers with dependent high and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET in the high-side configuration which operates up to 700 V.
Applications
- Motor Control
- Air Conditioners/ Washing Machines
- General Purpose Inverters
- Micro/Mini Inverter Drives
Key features
- Floating channel designed for bootstrap operation
- Fully operational to +700 V
- 3.3V, 5V and 15V input logic compatible
- dV/dt noise Immunity ±50 V/nsec
- Allowable negative Vs capability: -9V
- Gate drive supply range from 6.8V to 20V
- Undervoltage lockout for both channels
- UVLO forward 5.5V
- UVLO reverse 5.0V
- Turn-on/Turn-off propagation delay: Ton/Toff = 150ns/150ns
- Matched propagation delay for both channels
- Typically output Source/Sink current capability: 4A/4A
